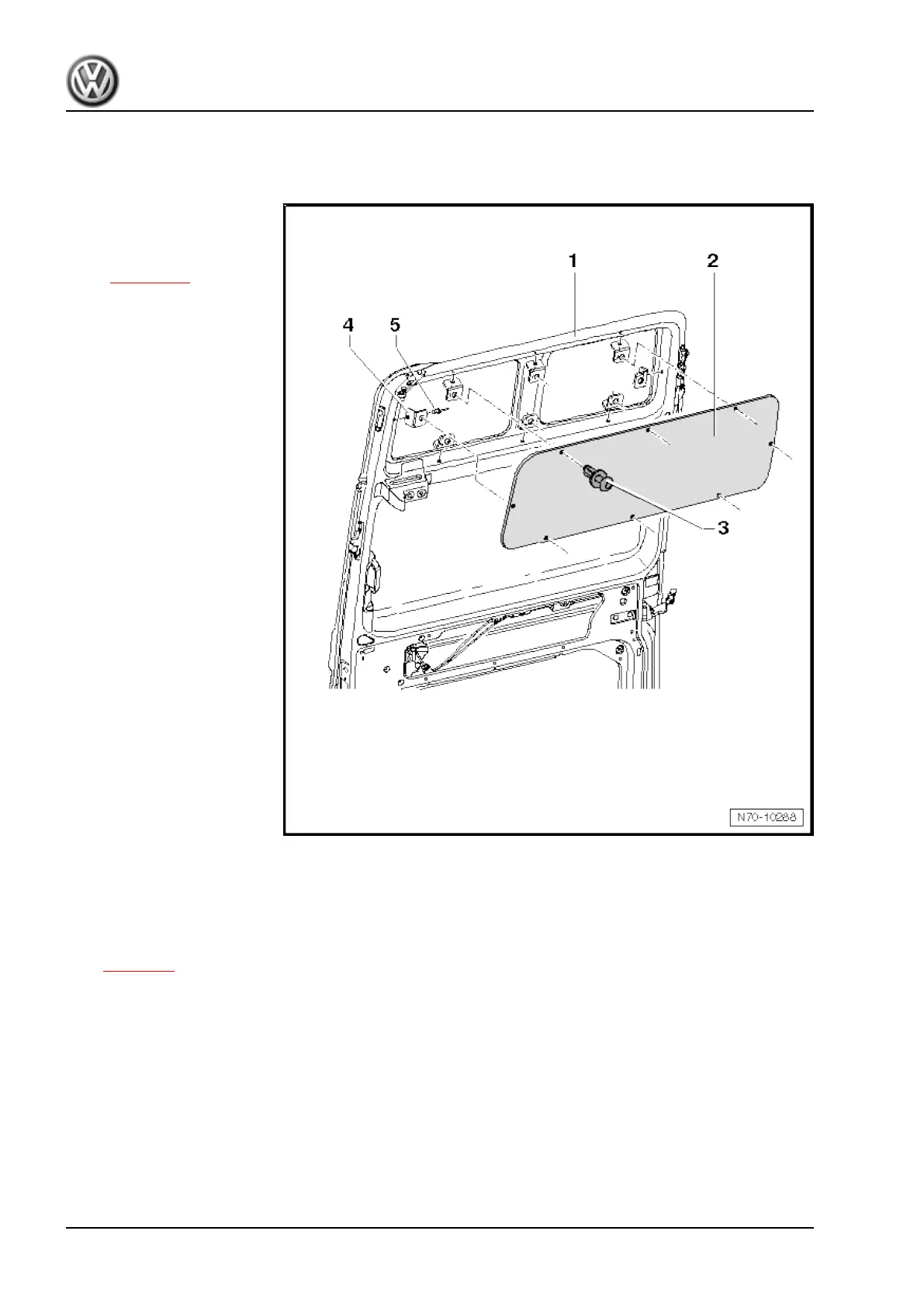

2.1.6 Assembly overview - rear door trim, Transporter, high sliding door with short
upper hardboard panel
1 - High sliding door
2 - Sliding door trim
❑ Removing and installing
⇒ page 186
3 - Clip
❑ For securing trim -1- on
sliding door
❑ Qty. 8
4 - Securing bracket
❑ For securing trim -1- on
sliding door
❑ Qty. 8
5 - Pop rivets
❑ For attaching securing
bracket -4-
❑ Qty. 8
❑ Insert using pop rivet pli‐
ers - VAS 5072-
2.2 Assembly overview - sun blind for door
window
There is no difference between the assembly overview for the
door window sun blind and the assembly overview for the sun
blind ⇒ page 47 .
2.3 Removing and installing rear door trim
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
186 Rep. gr.70 - Trim, insulation
