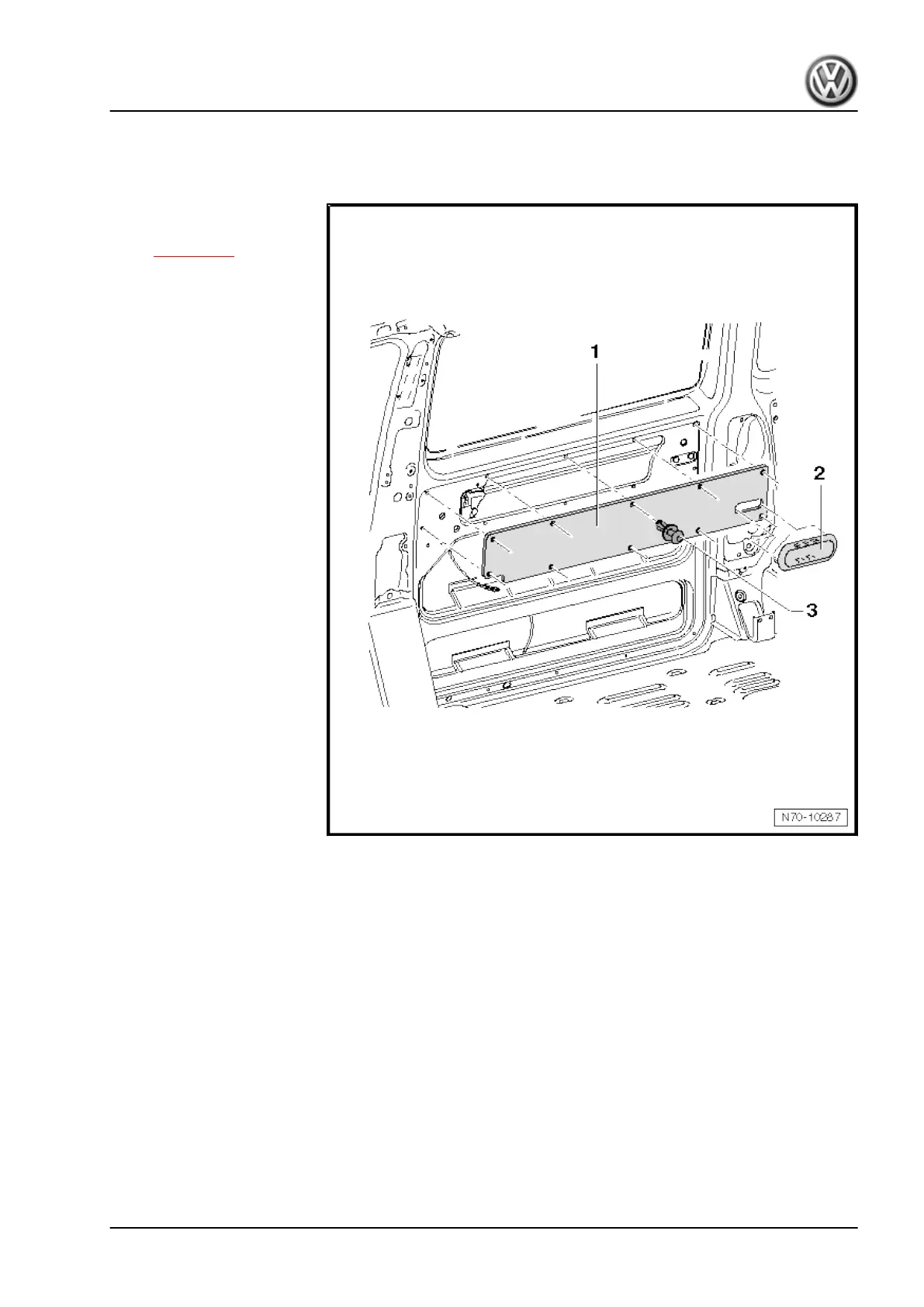

2.1.5 Assembly overview - rear door trim, Transporter, sliding door with short

centre hardboard-type trim

1 - Sliding door trim

❑ Removing and installing

⇒ page 186

2 - Cover

❑ For bolts on hinge

❑ Clipped into trim of slid‐

ing door -1-

3 - Clip

❑ For securing trim -1- on

sliding door

❑ Qty. 10

Transporter 2016 ➤

General body repairs, interior - Edition 03.2020

2. Rear door trims 185
