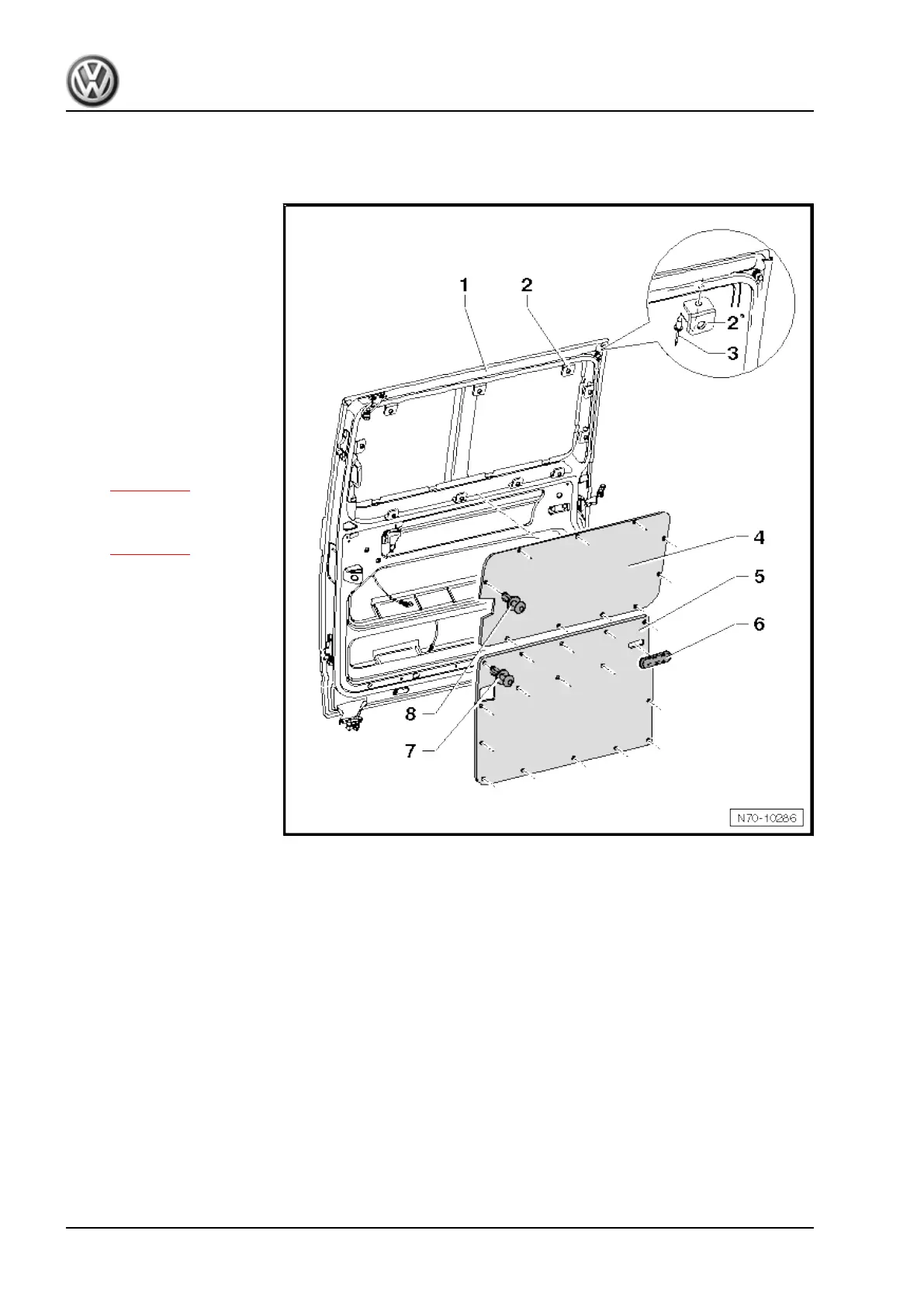

2.1.4 Assembly overview - rear door trim, Transporter, sliding door with long
hardboard-type trim
1 - Sliding door
2 - Securing bracket
❑ For securing upper trim
-4- on sliding door
❑ Qty. 10
3 - Pop rivets
❑ For attaching securing
bracket -2-
❑ Qty. 10
❑ Insert using pop rivet pli‐
ers - VAS 5072-
4 - Sliding door upper trim
❑ Removing and installing
⇒ page 186
5 - Sliding door lower trim
❑ Removing and installing
⇒ page 186
6 - Cover
❑ For bolts on hinge
❑ Clipped into lower trim
of sliding door -5-
7 - Clip
❑ For securing lower trim
-5- on sliding door
❑ Qty. 16
8 - Clip
❑ For securing upper trim
-4- on sliding door
❑ Qty. 10
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
184 Rep. gr.70 - Trim, insulation
