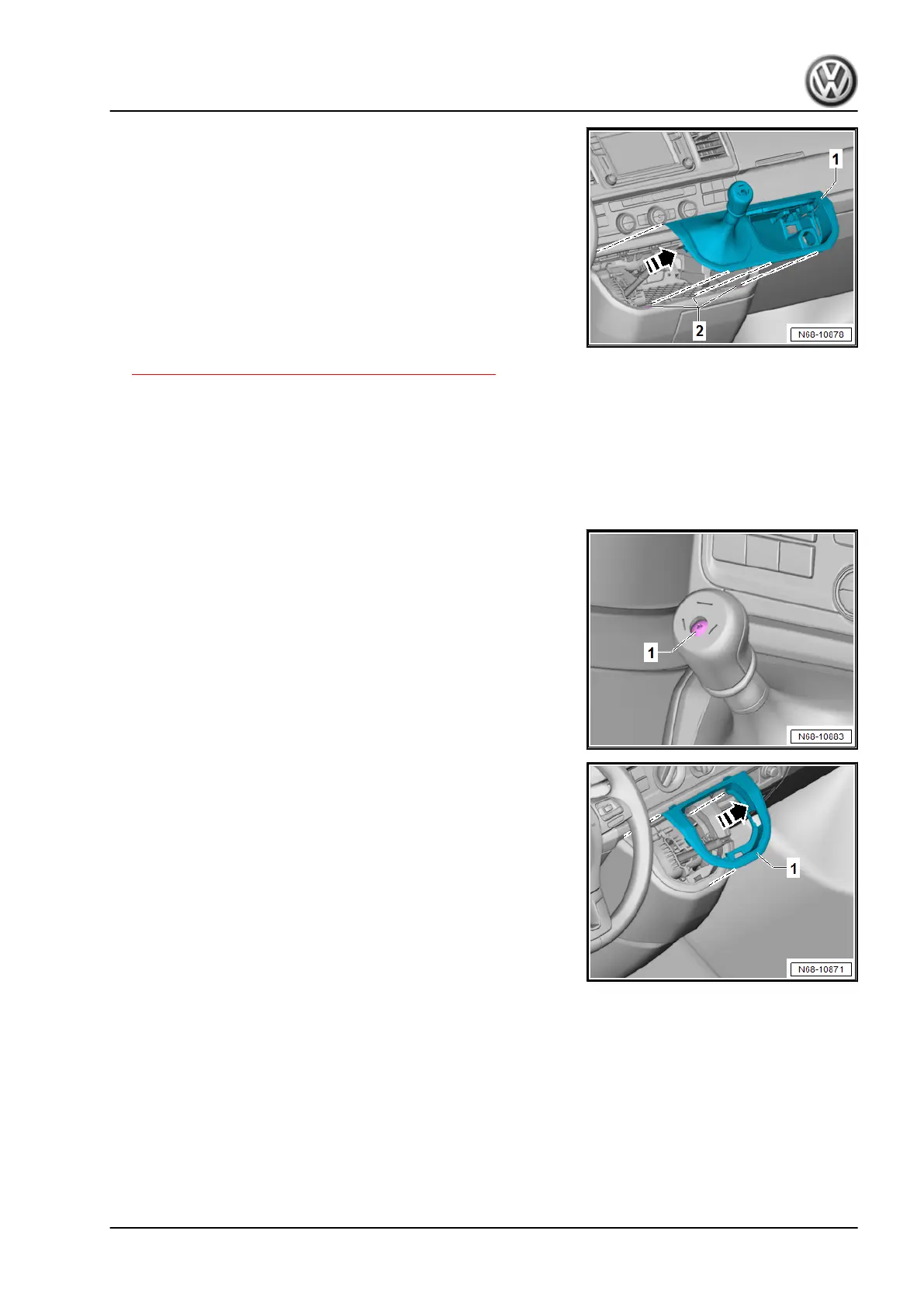

– Unclip cover -1- from catches -2-.
– Pull cover -1- together with storage compartment and gear
lever gaiter upwards in -direction of arrow- out of centre con‐
sole.
– Disconnect connector on socket.
– If fitted, disconnect connector on connection for external mul‐
timedia devices (USB).
Installing
Install in reverse order of removal, observing the following:
Specified torques
♦ ⇒ “3.1 Assembly overview - centre console”, page 58
3.2.2 Removing and installing centre console
cover, Transporter, cover on gear selec‐
tor guide
Removing
– Unclip plastic cover on gear lever.
– Unscrew bolt -1-.
– Pull gear lever gaiter upwards off gear lever.
– Unclip cover -1- in -direction of arrow-, and remove it upwards.
Installing
Installation is carried out in reverse order.
3.2.3 Removing and installing centre console
cover, Transporter, lower right centre
console cover
Special tools and workshop equipment required
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
3. Centre console 61
