Removing
WARNING
Observe safety precautions when working on pyrotechnic com‐
ponents ⇒ page 3 .
Observe procedure for storage, transportation and disposal of
airbag, belt tensioner and battery isolator units (pyrotechnic
components) ⇒ page 5 .
Observe additional safety regulations for side airbag
⇒ page 5 .
– Switch on ignition.
– Disconnect earth wire at battery negative terminal ⇒ Electrical
system; Rep. gr. 27 ; Battery; Disconnecting and connecting
battery .
– Remove cover and padding from front seat backrest
⇒ page 444 .

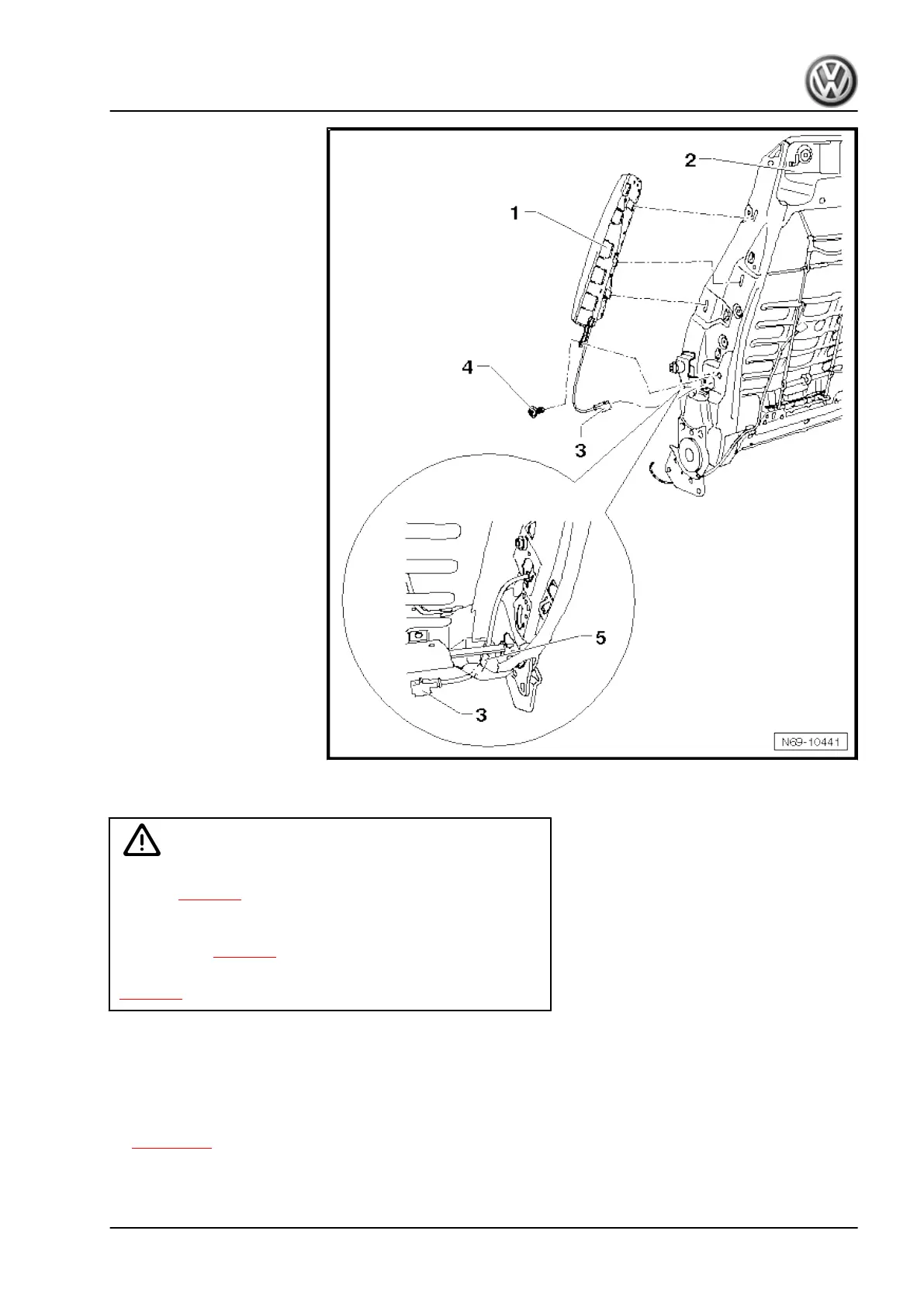

– Disconnect connector -3- below seat.
– Guide line -5- through backrest frame -2-.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
7. Side airbags 159
