Removing
Note
♦
The trim is permanently secured to the vents
♦
Before removing the components, protect them to avoid any
damage caused by tools.
♦
During the following work, ensure that the tools are positioned
in such a way that they cannot slip.

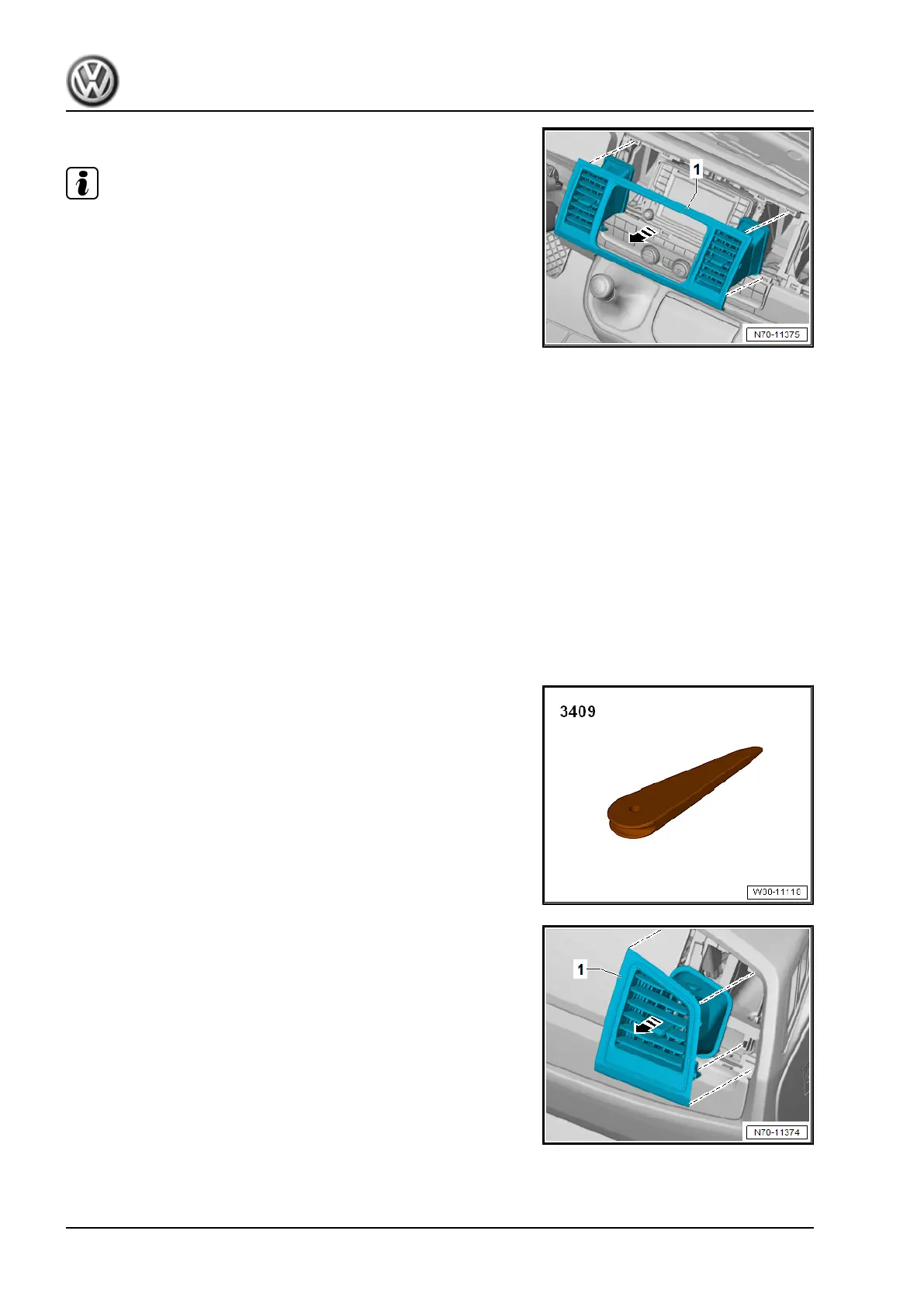

– Open centre vent -1- completely.
– Insert hook - T10538- in fresh air duct.
– Engage hook - T10538- behind centre vent -1-.
– Hold centre vent -1- under tension slightly with hook -
T10538- .
– Unclip centre vent -1- all around from fasteners with removal
wedge - 3409- .
– Pull out trim along with centre vent -1- from installation opening
in dash panel in direction of -arrow-.
Installing
Installation is carried out in reverse order.
3.13.2 Removing and installing dash panel
vents, sides
Special tools and workshop equipment required
♦ Removal wedge - 3409-
Removing
– Insert removal wedge - 3409- on side.
– Remove dash panel vent -1- in direction of -arrow- with re‐
moval wedge - 3409- .
Installing
Installation is carried out in reverse order.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
214 Rep. gr.70 - Trim, insulation
