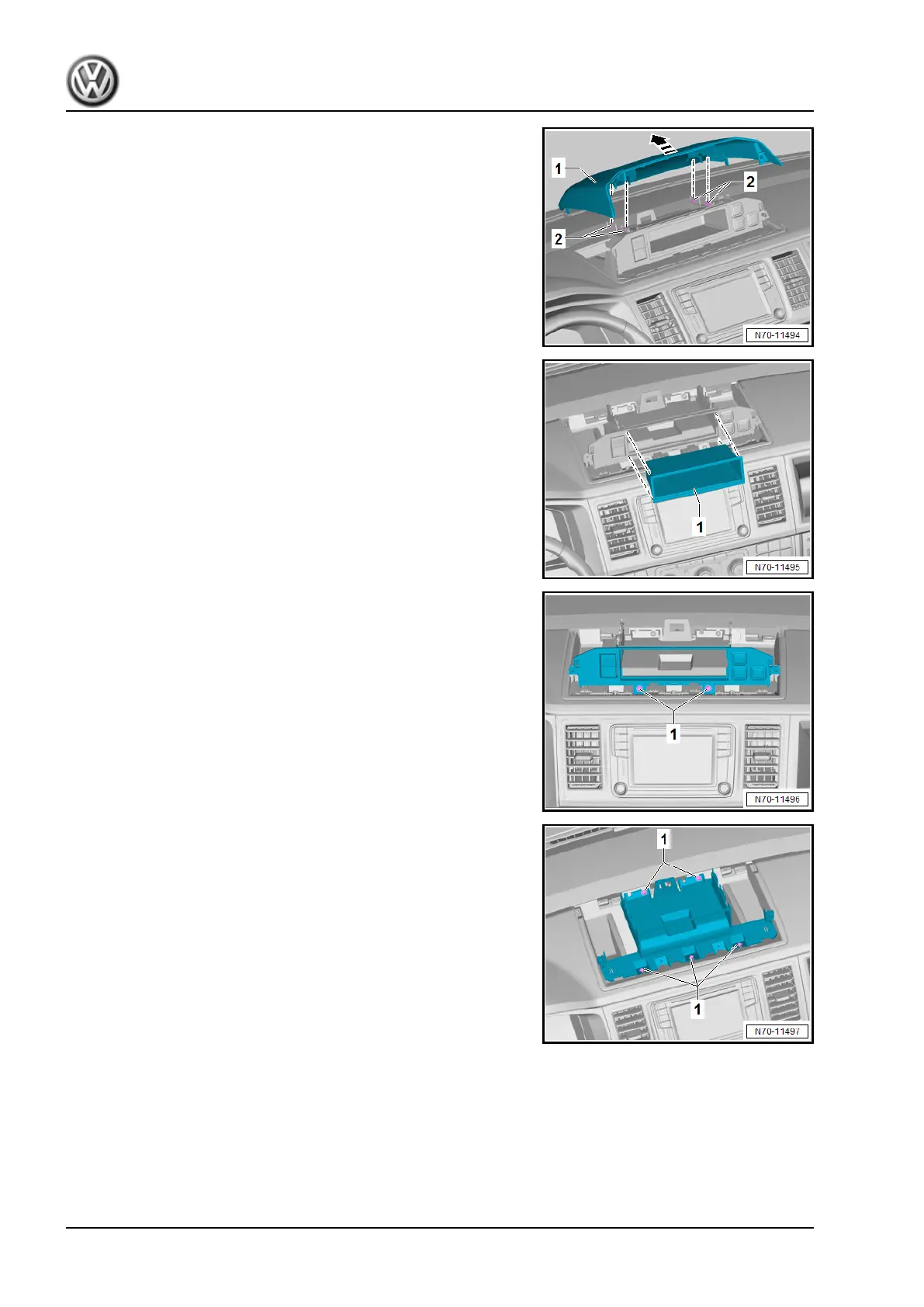

– Remove upper part -1- from fasteners -2- in direction of
-arrow-.
– Pull out storage compartment -1-.
– Unscrew bolts -1-.
– Unscrew bolts -1-.
– Remove auxiliary console holder from dash panel.
– Disconnect electrical connectors.
Installing
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
216 Rep. gr.70 - Trim, insulation
