Removing

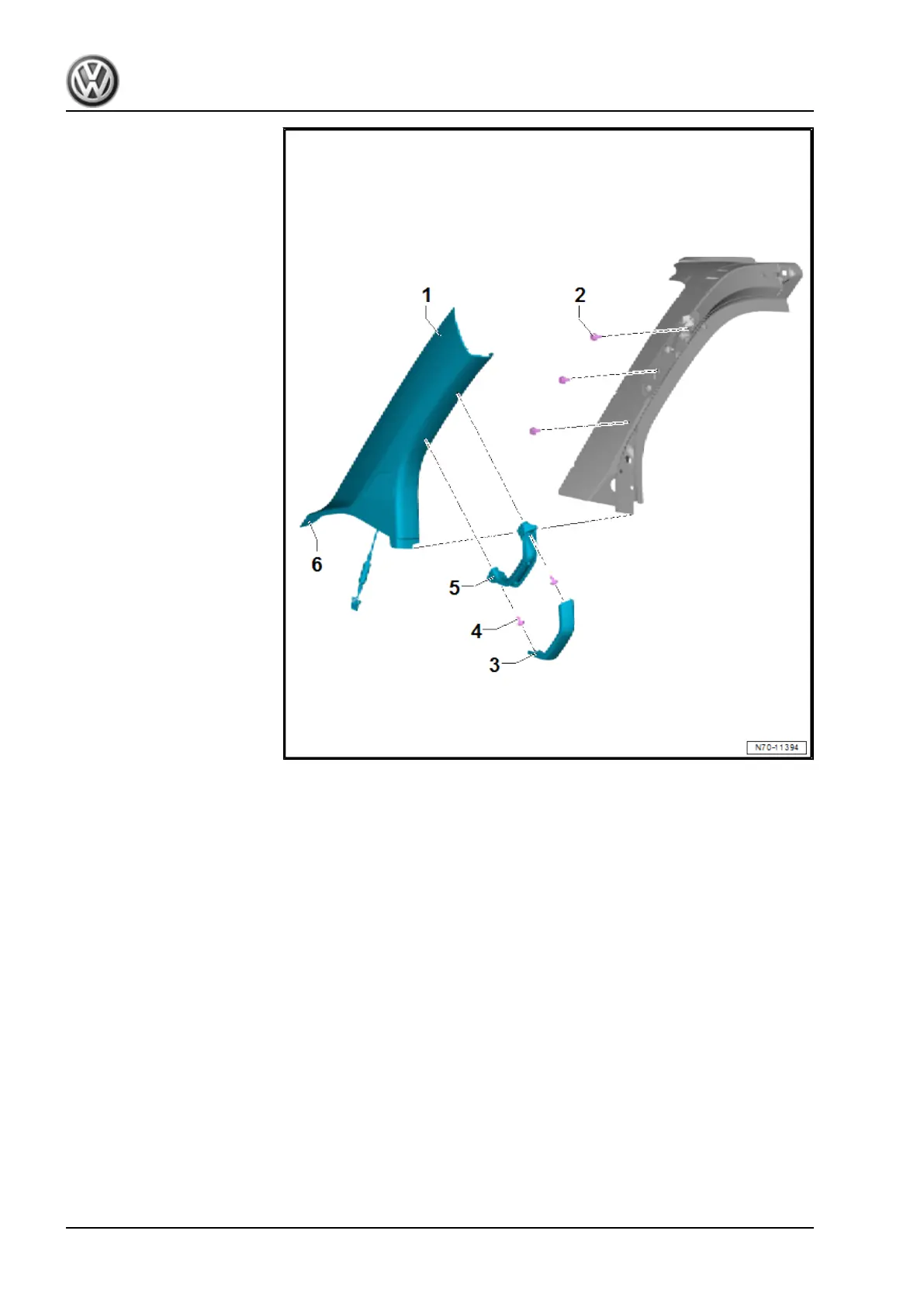

– Starting at bottom, lever upper part of handle -3- out of mount‐
ing using a small screwdriver.
– Unscrew bolts -4-.
– Remove bottom part of handle -5-.
– Unclip trim -1- from mounting points, starting at top.
– Unhook lower end -6- of trim -1- from dash panel.
– If fitted, disconnect connector from loudspeaker.
Installing
Install in reverse order of removal, observing the following:
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
230 Rep. gr.70 - Trim, insulation
