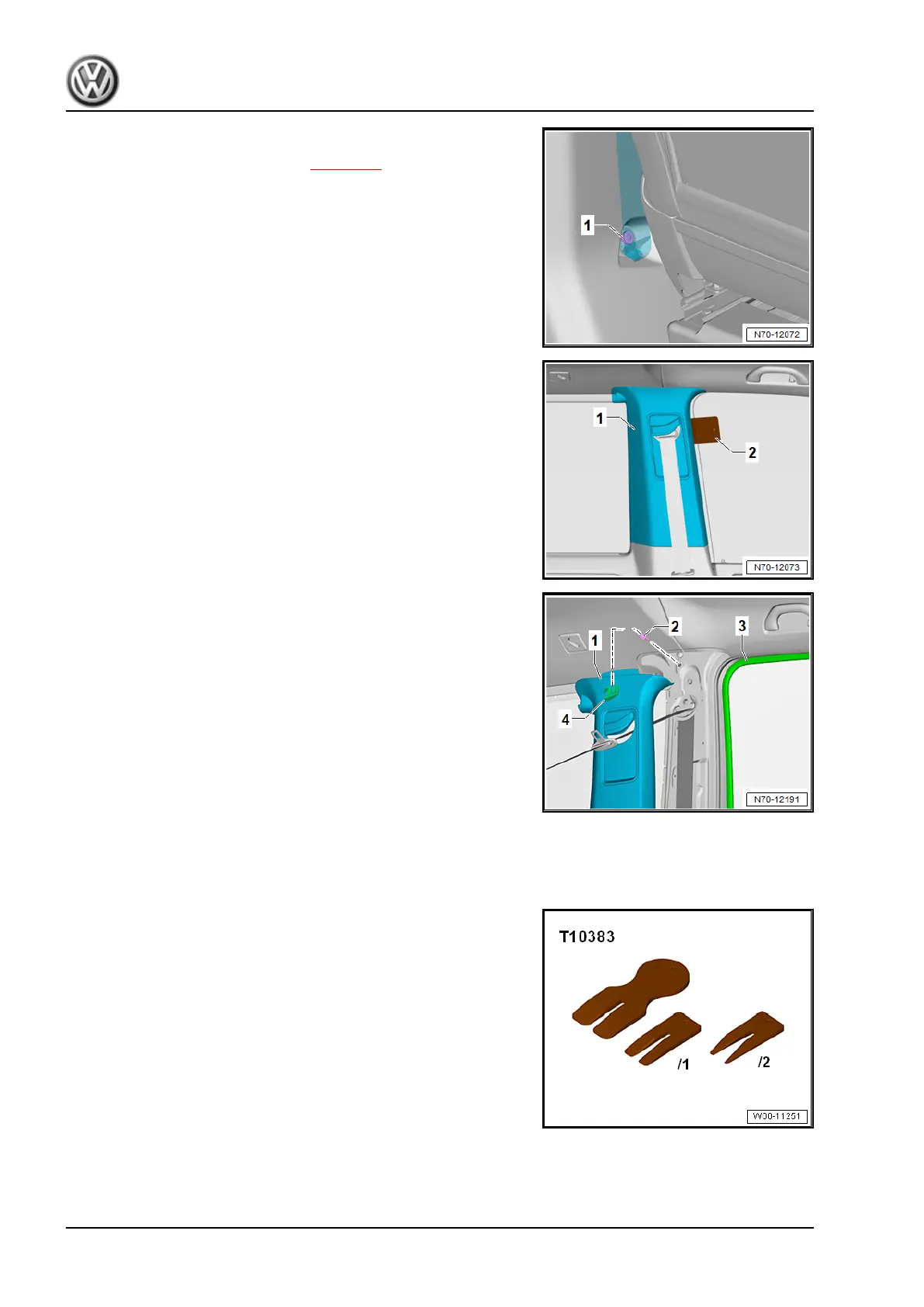

Removing
– Remove grab handle on B-pillar ⇒ page 51 .
– Unscrew bolt -1-.
– Using wedge - T10039/1- -2-, lever trim -1- out of beading.
– Pull out seat belt through opening in trim.
Installing
Install in reverse order of removal, observing the following:
– Fit clip -2- in bracket -4-.
– Fit trim -1- with clip -2- on B-pillar.
– Apply pressure to trim and, in doing so, insert trim in beading
-3- of door seal.
5.3.2 Removing and installing B-pillar trim,
Multivan, bottom
Special tools and workshop equipment required
♦ Wedges - T10383-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
232 Rep. gr.70 - Trim, insulation
