– Remove any clips -1- left in body mountings using wedge -

T10383- / -T40280- and fit them in trim for installation.

– Following installation, ensure that trim is positioned in door

seal beading.

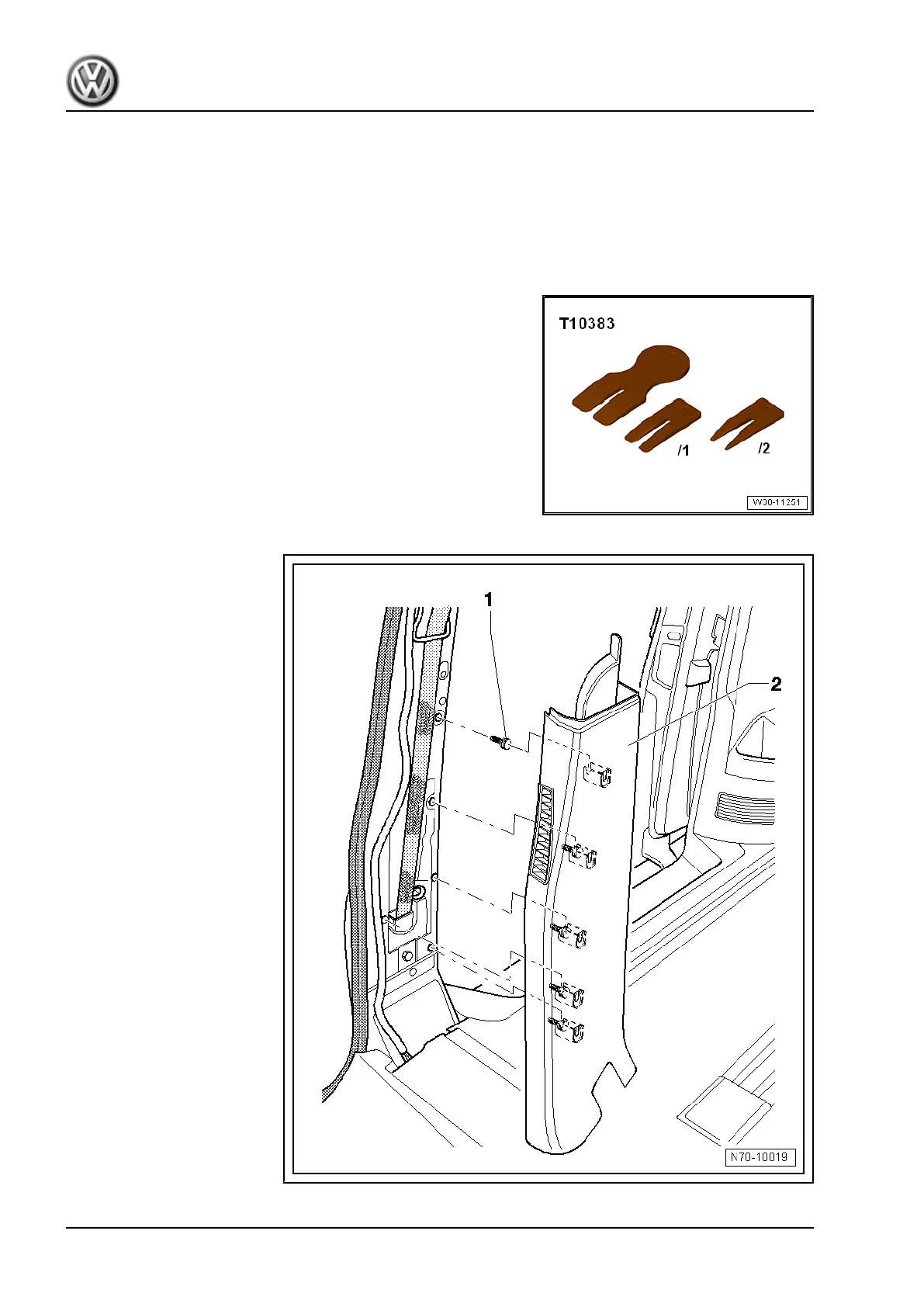

5.3.4 Removing and installing B-pillar trim,

Transporter, bottom

Special tools and workshop equipment required

♦ Wedges - T10383-

Transporter 2016 ➤

General body repairs, interior - Edition 03.2020

236 Rep. gr.70 - Trim, insulation
