Removing

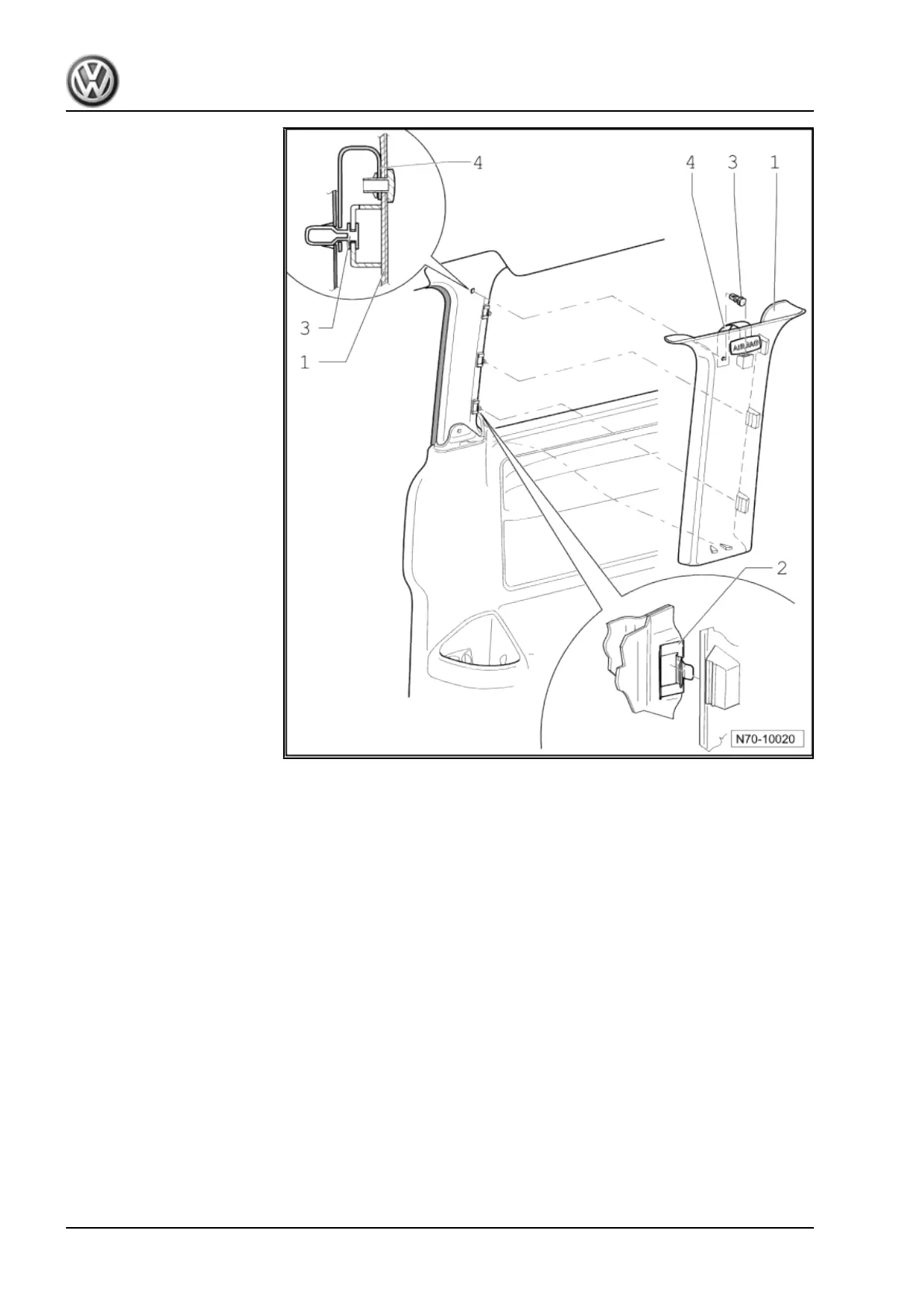

– Pull C-pillar trim -1- out of door seal beading and retaining clips
-2-.
Installing
Install in reverse order of removal, observing the following:
– Before installing, check retaining clips -2- and retaining clip
-3- for damage and renew if necessary.
– Remove any clips left in the body mountings using wedge -
T10383- , and fit them in the trim for installation.
– Following installation, ensure that trim is positioned in door
seal beading.
When installing, moving the retaining strap -4- from its correct
position is not permissible.
5.4.2 Removing and installing C-pillar trim,
Transporter
Removal and installation is described for the front passenger side.
Follow same instructions for the driver side as appropriate.
Special tools and workshop equipment required
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
238 Rep. gr.70 - Trim, insulation
