– Remove all fastening rings -4- on seat rails ⇒ page 270 .
– Pull out floor covering -5- from beneath rear lock carrier cover.
– Remove floor covering -5- backwards out of vehicle.
Installing
Installation is carried out in reverse order.
5.7.3 Removing and installing floor covering,
Transporter, passenger compartment
Note
If a rubber floor covering is fitted in the passenger compartment,
the respective replacement part is provided with the cut-outs for
the seats or seat rails. However, no provision is made for cut-outs
for additional installations, e.g. fastening rings. The potential cut-
outs are marked on the underside of the rubber floor covering.
Any cut-outs required for the specific vehicle must be cut using,
for example, the electric cutter - V.A.G 1561A- .

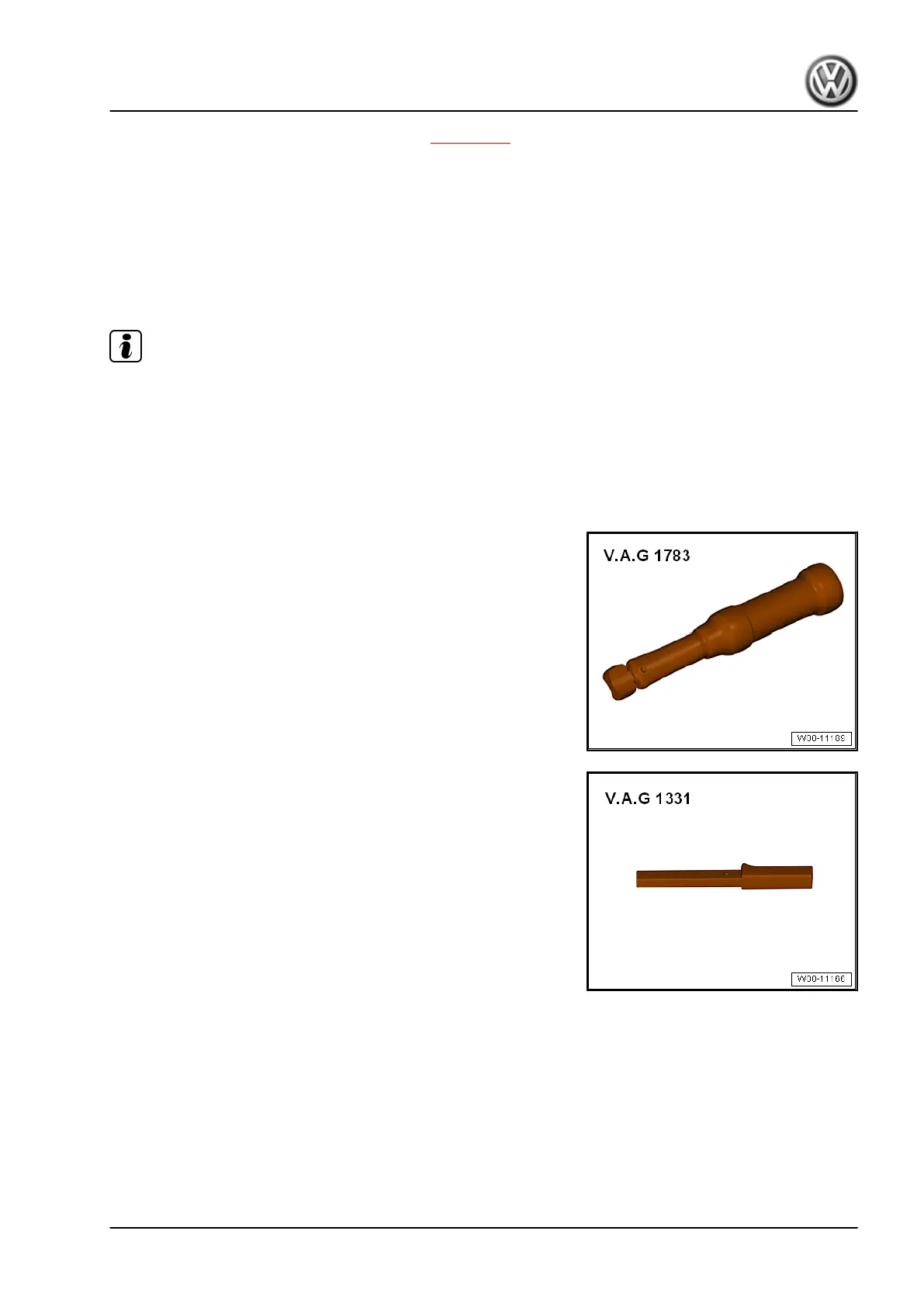

Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1783-
♦ Torque wrench - V.A.G 1331-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
5. Interior trims 247
