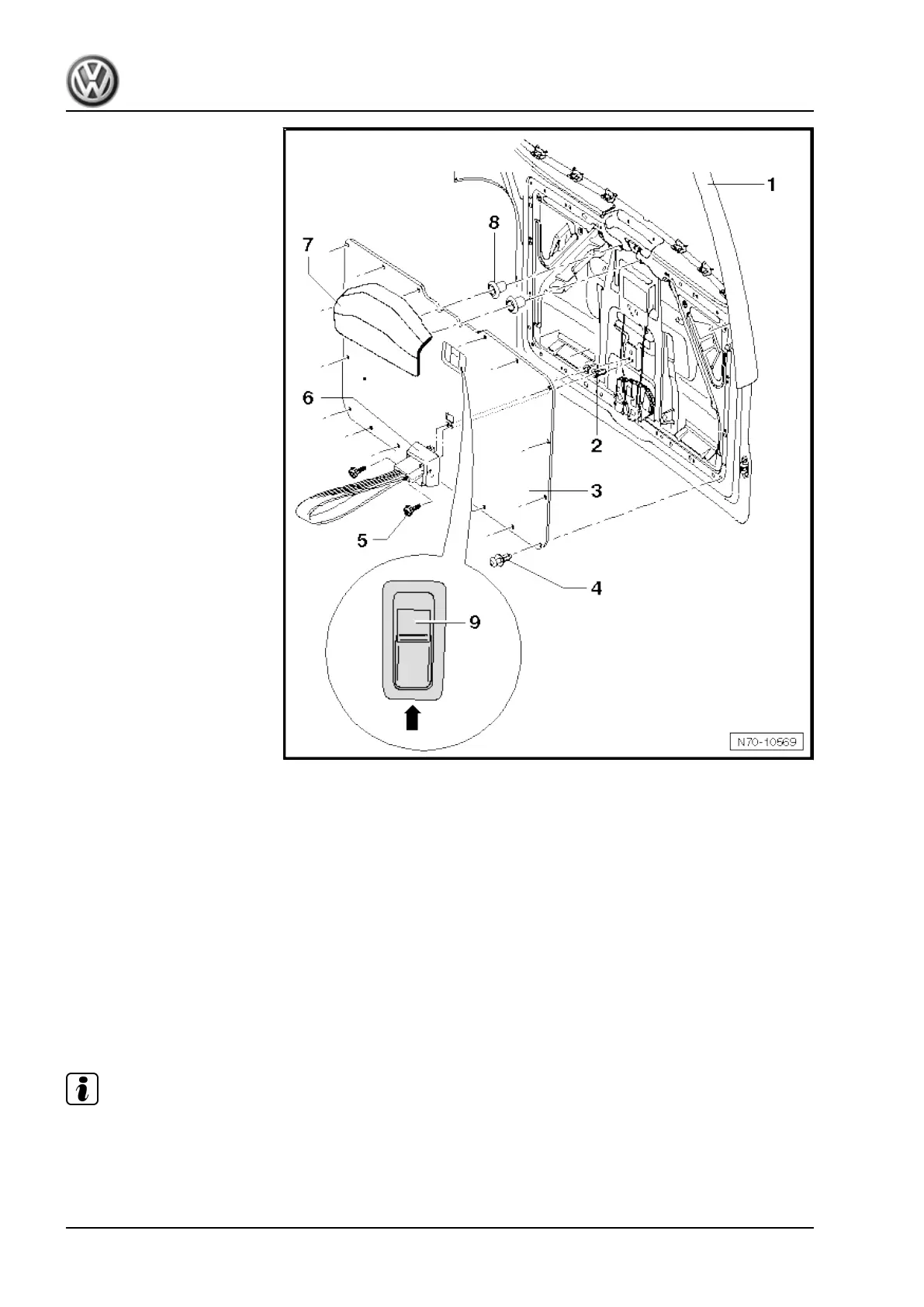

– Using screwdriver -arrow-, carefully lever release button for
rear lid lock cylinder - F248- -9- out of lower rear lid trim -3-.
– Separate electrical connector from switch -5-.
– Unclip cover of wiper motor -7- from rear lid.
– Unscrew bolts -5-.
– Remove pull loop -6-.
– Use a 3 mm hexagon socket to unscrew clamping pin, and pull
out spreader rivets -4-.
– Remove lower rear lid trim -3- from rear lid -1-.
Installing
Install in reverse order of removal, observing the following:
Note
Before installing, check retaining clips -4- for damage and renew
if necessary.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
256 Rep. gr.70 - Trim, insulation
