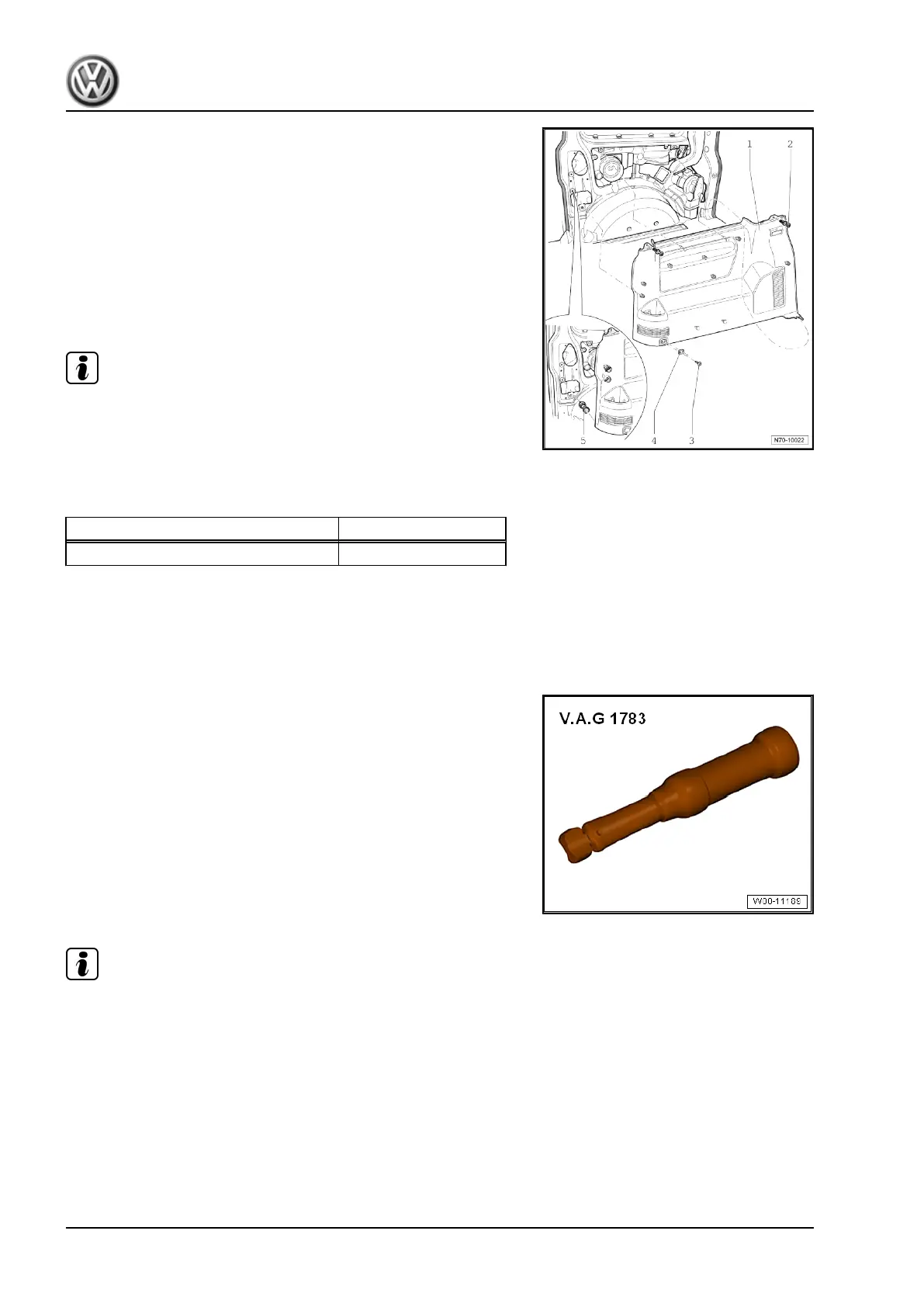

– Unscrew bolts -3-.
– Remove fastening ring -4-.
– Pull out clamping pins -2-.
– Release side panel trim -1- from mounting brackets.
– Detach wiring harnesses from side trim.
– Remove side trim -1- from vehicle.
Installing
Install in reverse order of removal, observing the following:
Note
♦
Before installing, check all fasteners for damage and renew as
necessary.
♦
Following installation, ensure that trim is positioned in door
seal beading.
Specified torques
Component Specified torque
Fastening ring 7 Nm
6.5.2 Removing and installing luggage com‐
partment side trim, Multivan, rear, side
of vehicle without sliding door
Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1783-
Note
The removal and installation procedures may have to be modified
slightly depending on model variants.
Removing
– Remove trim panel on luggage compartment side trim.
– Remove rear ashtray together with mounting frame.
– Unscrew bolts -6-.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
260 Rep. gr.70 - Trim, insulation
