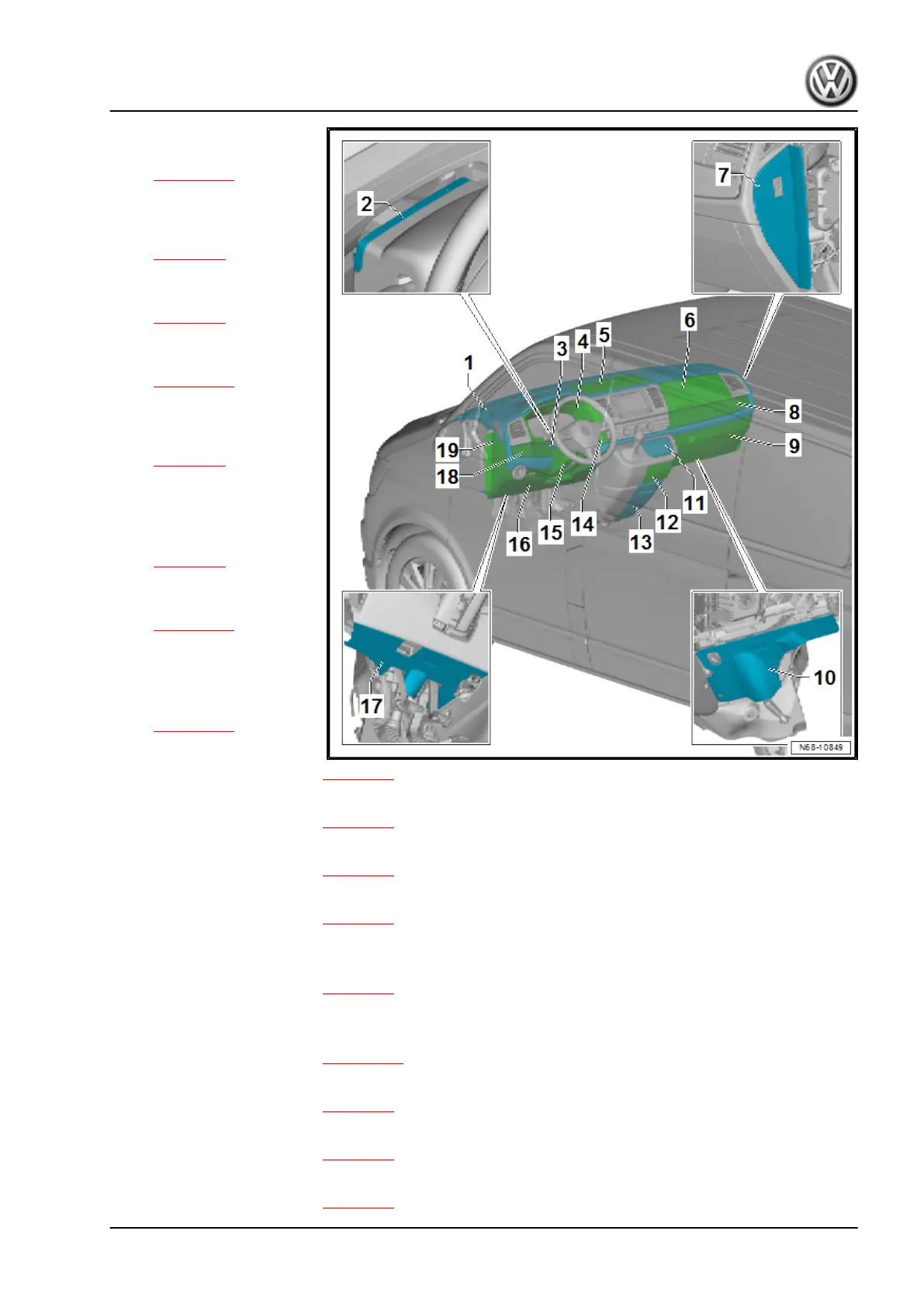

1 - Dash panel
❑ Removing and installing
⇒ page 206
2 - Gap cover for dash panel
insert
❑ Removing and installing
⇒ page 29
3 - Upper steering column trim
❑ Removing and installing
⇒ page 29
4 - Dash panel insert trim
❑ Removing and installing
⇒ page 203
5 - Centre dash panel compart‐
ment
❑ Removing and installing
⇒ page 33
6 - Right dash panel compart‐
ment
❑ Version with lid
❑ Removing and installing
⇒ page 33
7 - Dash panel end cover
❑ Removing and installing
⇒ page 199
8 - Dash panel trim panel
❑ Above glove compart‐
ment
❑ Removing and installing
⇒ page 200
9 - Glove compartment
❑ Removing and installing ⇒ page 32
10 - Front passenger side footwell cover
❑ Removing and installing ⇒ page 31
11 - Storage compartment in centre console
❑ Removing and installing ⇒ page 63
12 - Cup holder
❑ Removing and installing ⇒ page 65
13 - Centre console insert
❑ As bottle holder in this example
❑ Removing and installing ⇒ page 62
14 - Dash panel trim panel
❑ On right next to steering wheel
❑ Removing and installing ⇒ page 200
15 - Lower steering column trim
❑ Removing and installing ⇒ page 30
16 - Driver side dash panel cover
❑ Removing and installing ⇒ page 28
17 - Driver side footwell cover
❑ Removing and installing ⇒ page 31
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
1. Compartments/covers 21
