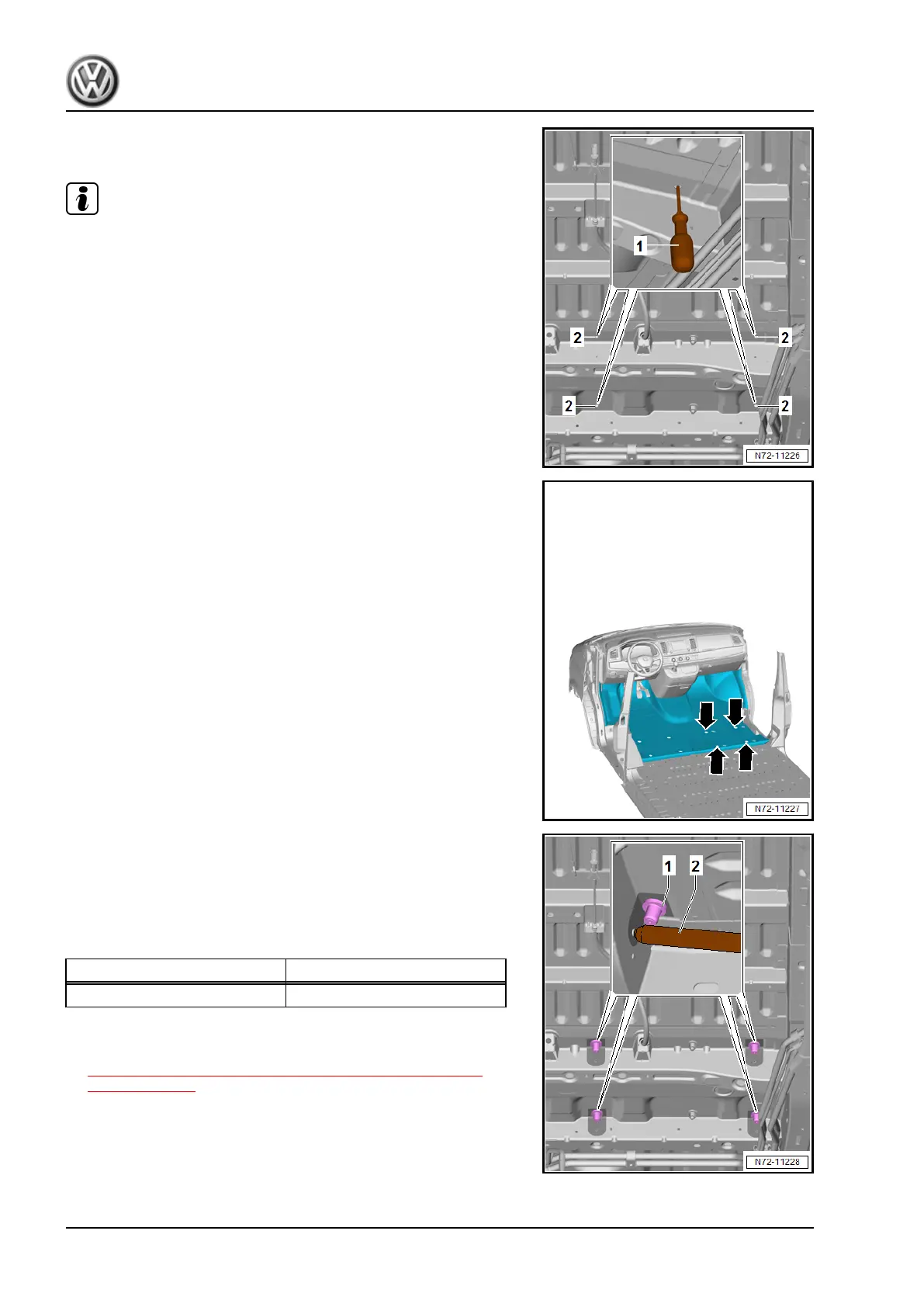

– Punch through drillings in floor panel -2- centrally from below
using suitable tool -1-.
Note
Punch through the drillings deeply enough so that the floor cov‐
ering is also pierced.
– Cut out the pierced floor covering -1- approx. 30 mm in a circle
-arrow-, e.g. with a punch.
– Secure seat mounting holders -1- with pop rivets to floor panel
using suitable tool -2-.
– Screw hexagon drive double studs into seat mounting holders,
and tighten them.
– Fit spacer sleeves over hexagon drive double studs between
floor panel and floor covering.
Component Specified torque
Hexagon drive double studs 55 Nm
– Installation is carried out in reverse order.
– Install double bench seat
⇒ “2.6.7 Removing and installing front seat, double bench
seat”, page 311 .
– Read event memory, and erase any recorded entries.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
316 Rep. gr.72 - Seat frames
