Removing
Left storage compartment

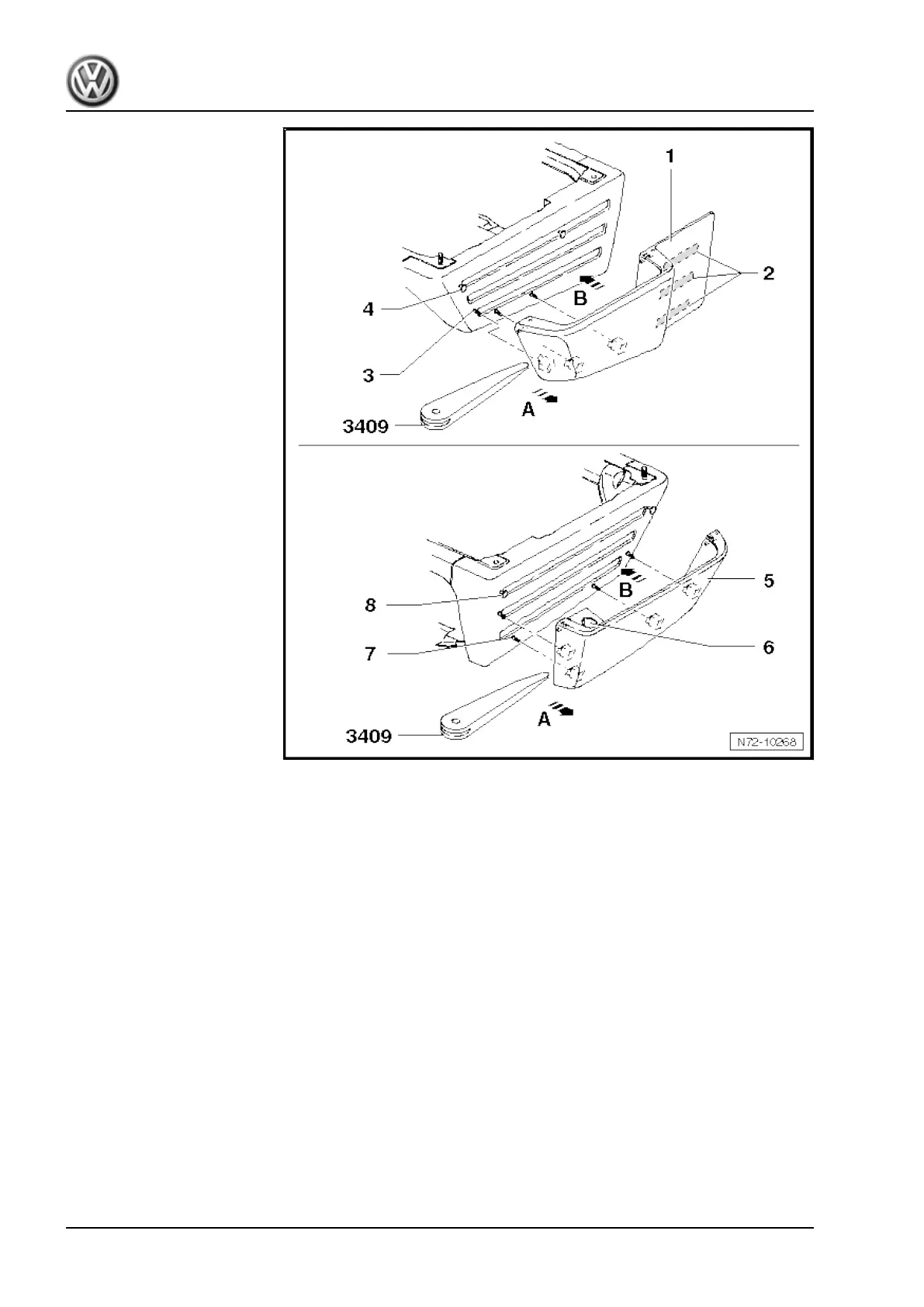

– Warm bonding surfaces -2- using hot air blower - V.A.G 1416- .
– Using removal wedge - 3409- , lever off storage compartment
of seat frame -1- from studs -3- in direction of -arrow A- and
fastener.
– Pull off storage compartment on seat frame -1- from guide pins
-4- on seat frame in direction of -arrow B-.
Right storage compartment
– Using removal wedge - 3409- , lever off storage compartment
of seat frame -5- from studs -7- in direction of -arrow A- and
fastener.
– Pull off storage compartment on seat frame -5- from guide pins
-8- on seat frame in direction of -arrow B-.
– If fitted, separate connector -6-.
Installing
Install in reverse order of removal, observing the following:
Left storage compartment on seat frame is factory-fitted with dou‐
ble-sided adhesive tape.
