2.12.2 Removing and installing lumbar support
adjustment unit, Bowden cable

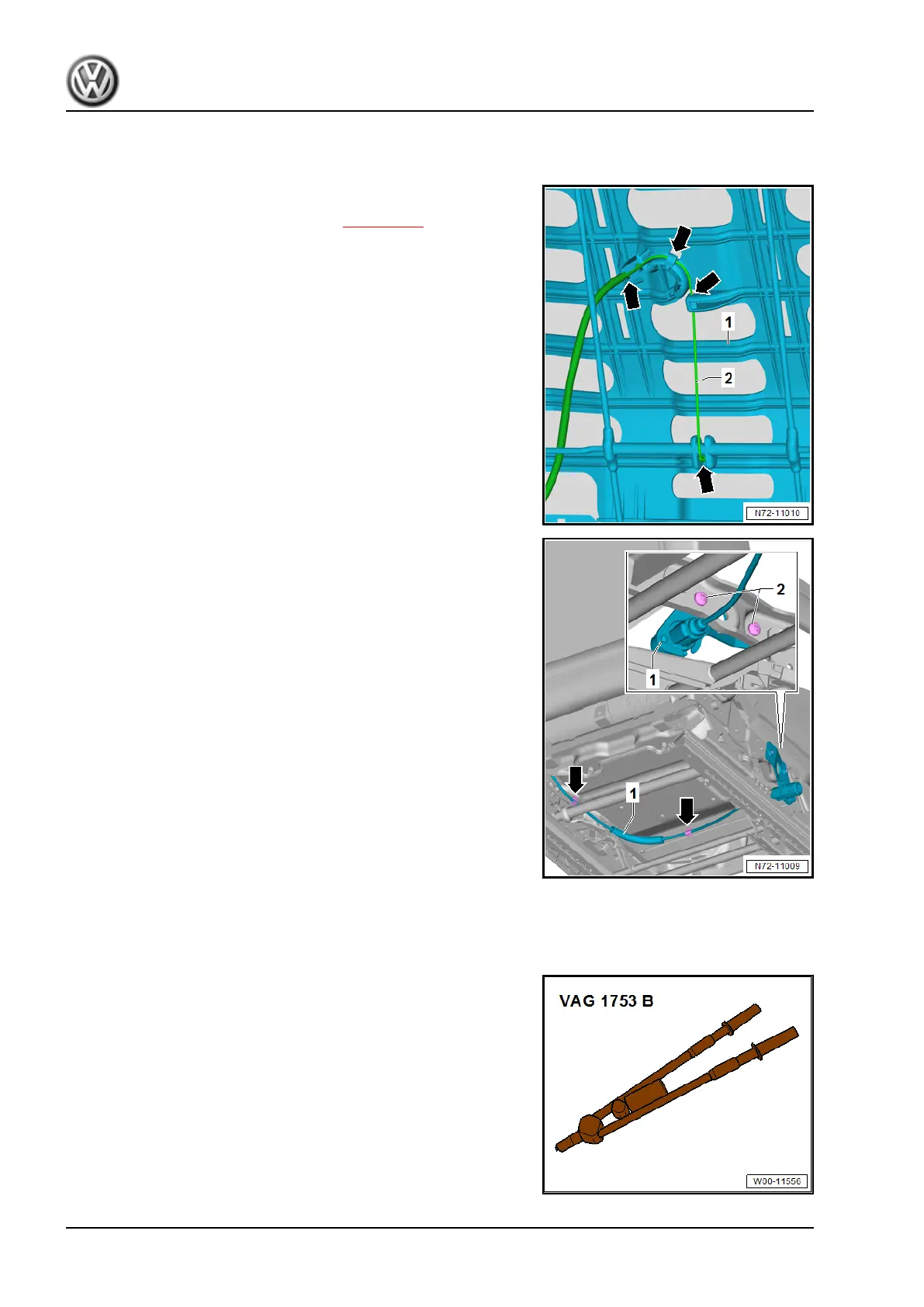

Removing
– Remove backrest cover and cushion ⇒ page 444 .
– Detach Bowden cable -2- from lumbar support -1- -arrows-.
– Guide out Bowden cable -2- from backrest frame.
– Unscrew bolts -2-.
– Disengage Bowden cable -1- from seat frame -arrows-.
– Remove Bowden cable -1- along with adjustment unit.
2.12.3 Removing and installing lumbar support
adjustment unit, support frame
Special tools and workshop equipment required
♦ Special pop rivet pliers - V.A.G 1753B-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
332 Rep. gr.72 - Seat frames
