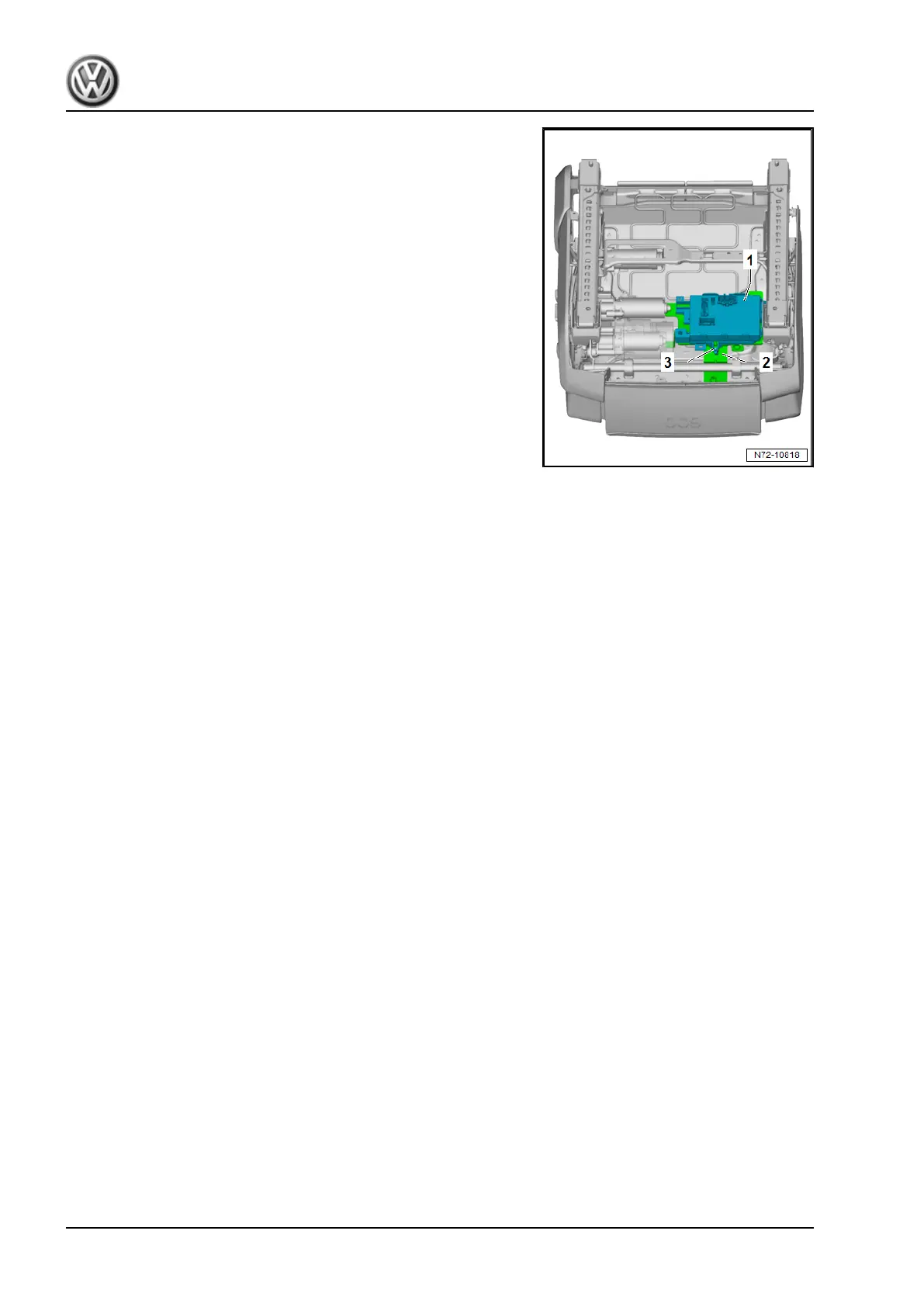

– Release electrical connectors and pull off from control unit
-1-.
– Remove spreader rivet -3- from control unit bracket.
– To do this, press clamping pin in spreader rivet inwards.
– Lever off spreader rivet using removal wedge - 3409- .
– Remove control unit -1- from mountings on adapter for control
unit bracket -2-.
Installing
Install in reverse order of removal, observing the following:
– Renew any damaged cable ties and clips.
– Insert spreader rivet -3- and press in clamping pin.
– Route electrical wiring so that original wiring layout is restored.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
346 Rep. gr.72 - Seat frames
