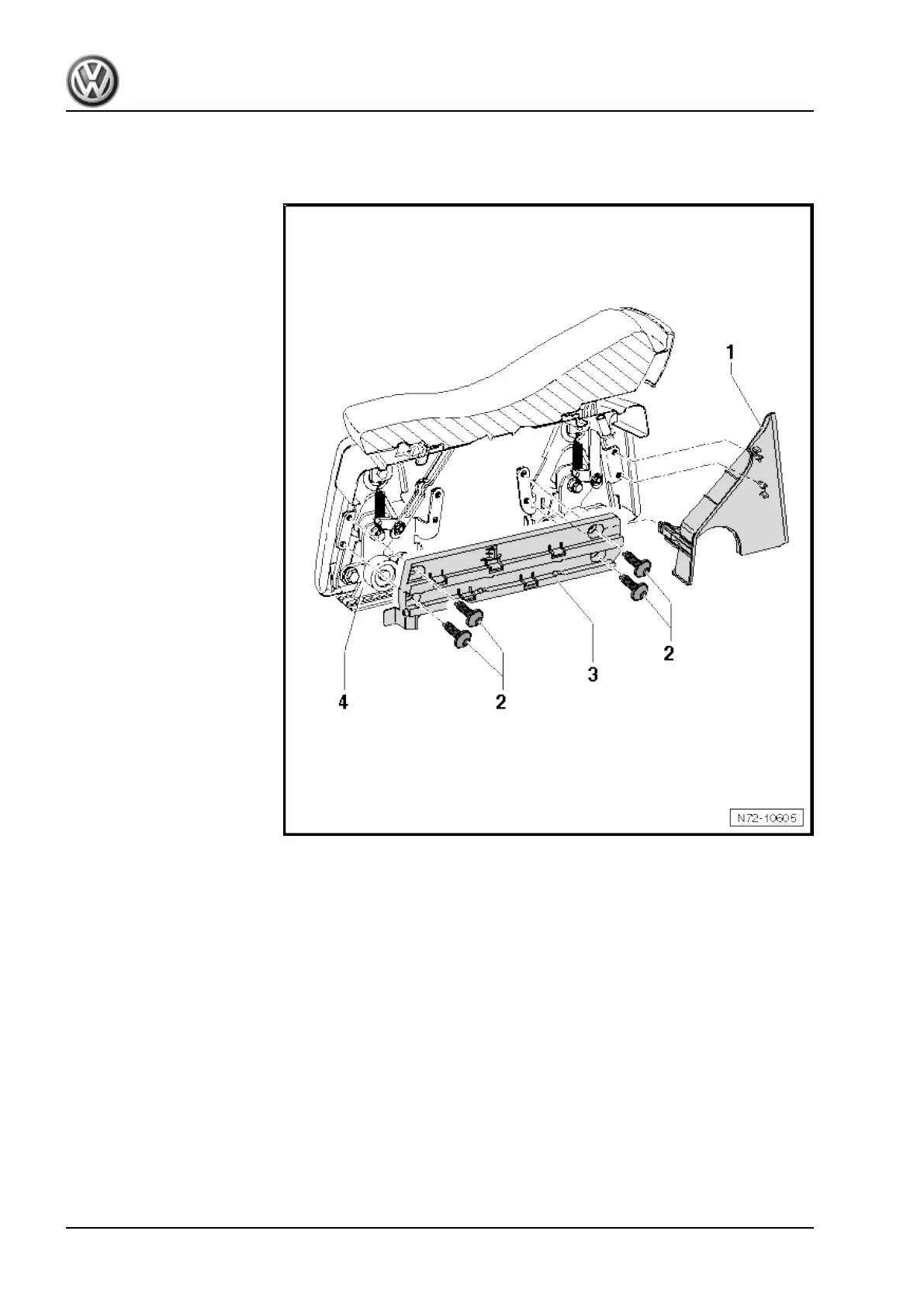

3.1.5 Assembly overview - bench seat / individual seats, Multivan/Business,
guide rail
1 - Guide rail trim
❑ Clipped into seat frame
2 - Bolts
❑ Qty. 4
❑ 8 Nm
3 - Guide rail
❑ Right
4 - Seat supporting frame
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
354 Rep. gr.72 - Seat frames
