3.3.2 Removing and installing bench seat/individual seats, 3-seater bench seat,
3nd row
Removing
– Remove seats from 2nd row ⇒ page 361 .
– If fitted, remove table module from seat rails.

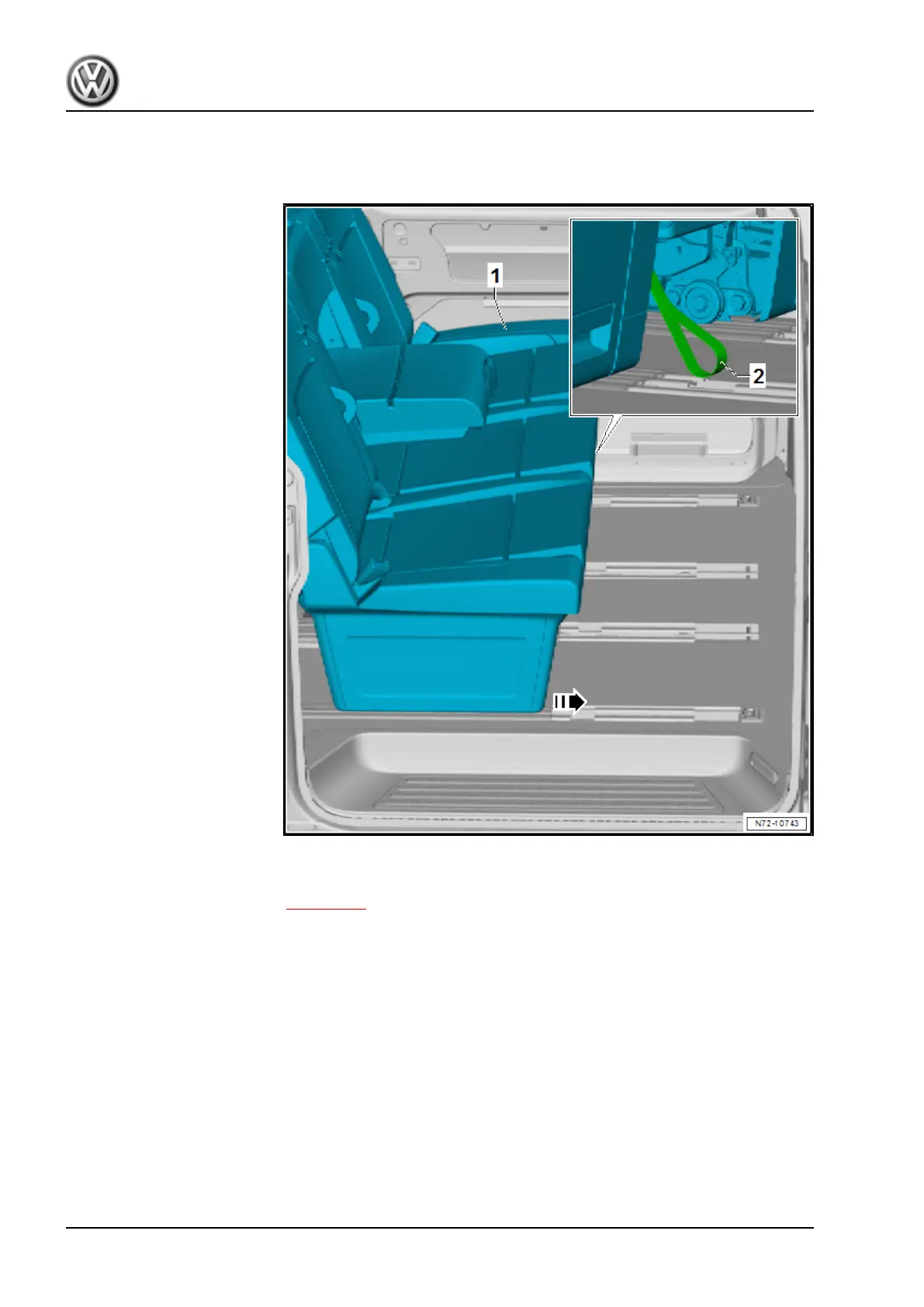

– Pull on loop -2- to release bench seat.
– Move bench seat as far forwards as possible -arrow-.
– Fold backrest forwards.
– With the aid of a second mechanic lift bench seat out of seat
rail.
Installing
– Installation is carried out in reverse order.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
364 Rep. gr.72 - Seat frames

Volkswagen Transporter 2016 Specifications

General

Adjustable temperature control	Yes
Heater Control	Manual
Heated seats	Optional
Heated windshield	Optional
Rear heater	Optional
