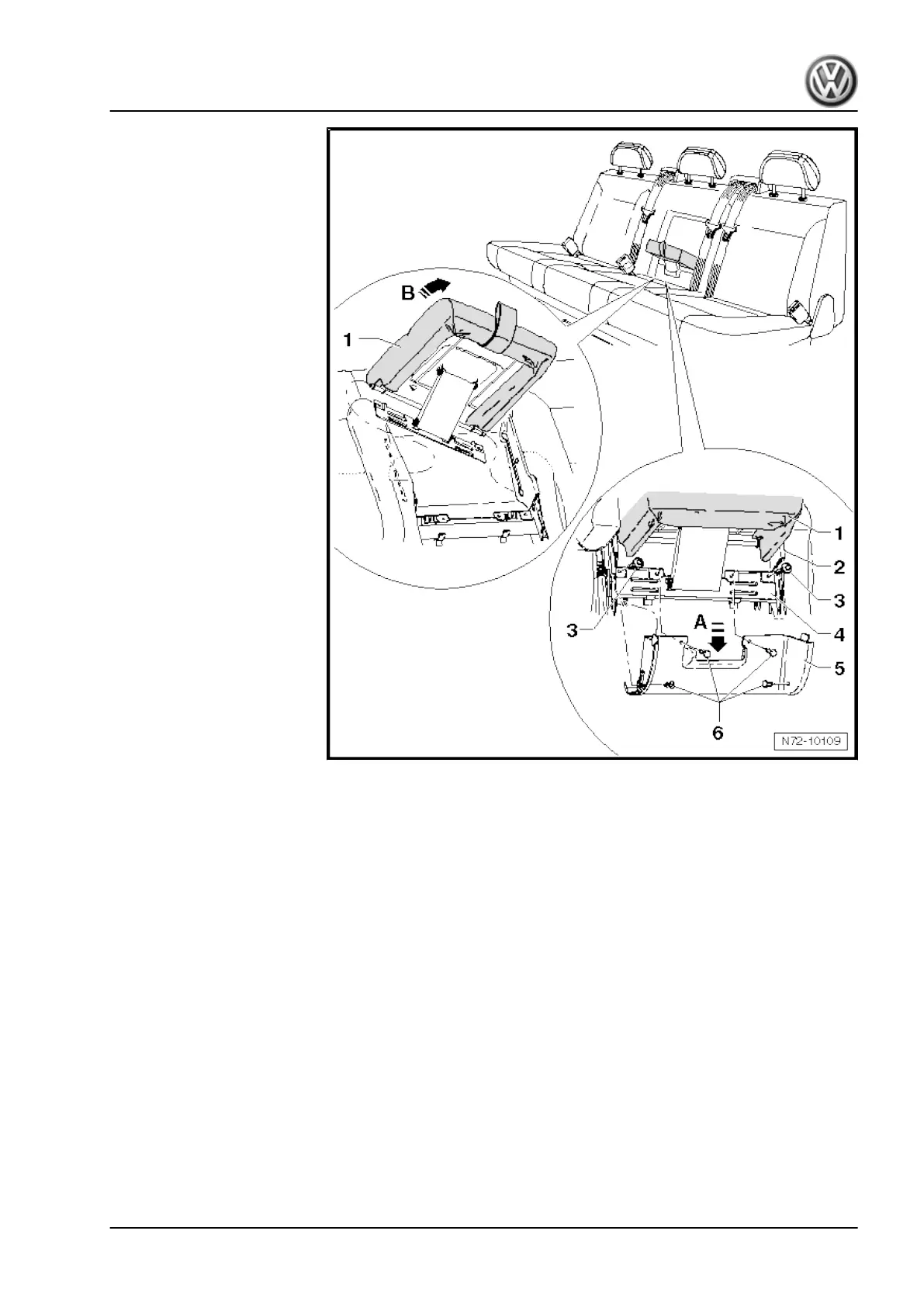

Removing
– Remove clips -6-.
– Pull lower cover -5- downwards out of the mountings in upper
cover -2- -arrow A-.
– Unscrew bolts -3-.
– Pull out lateral plate -4- downwards -arrow A-.
– Rotate armrest -1- on its longitudinal axis and remove from
guide slots -arrow B-.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
3. Rear seats 381
