Removing
Note
♦
If the outer armrests have to be removed, the bench seat must first be removed ⇒ page 396 .
♦
If the inner armrests have to be removed, it is sufficient to move both backrests in a position which allows
for removal of the armrests.
♦
Cap -2- cannot be removed without being damaged.

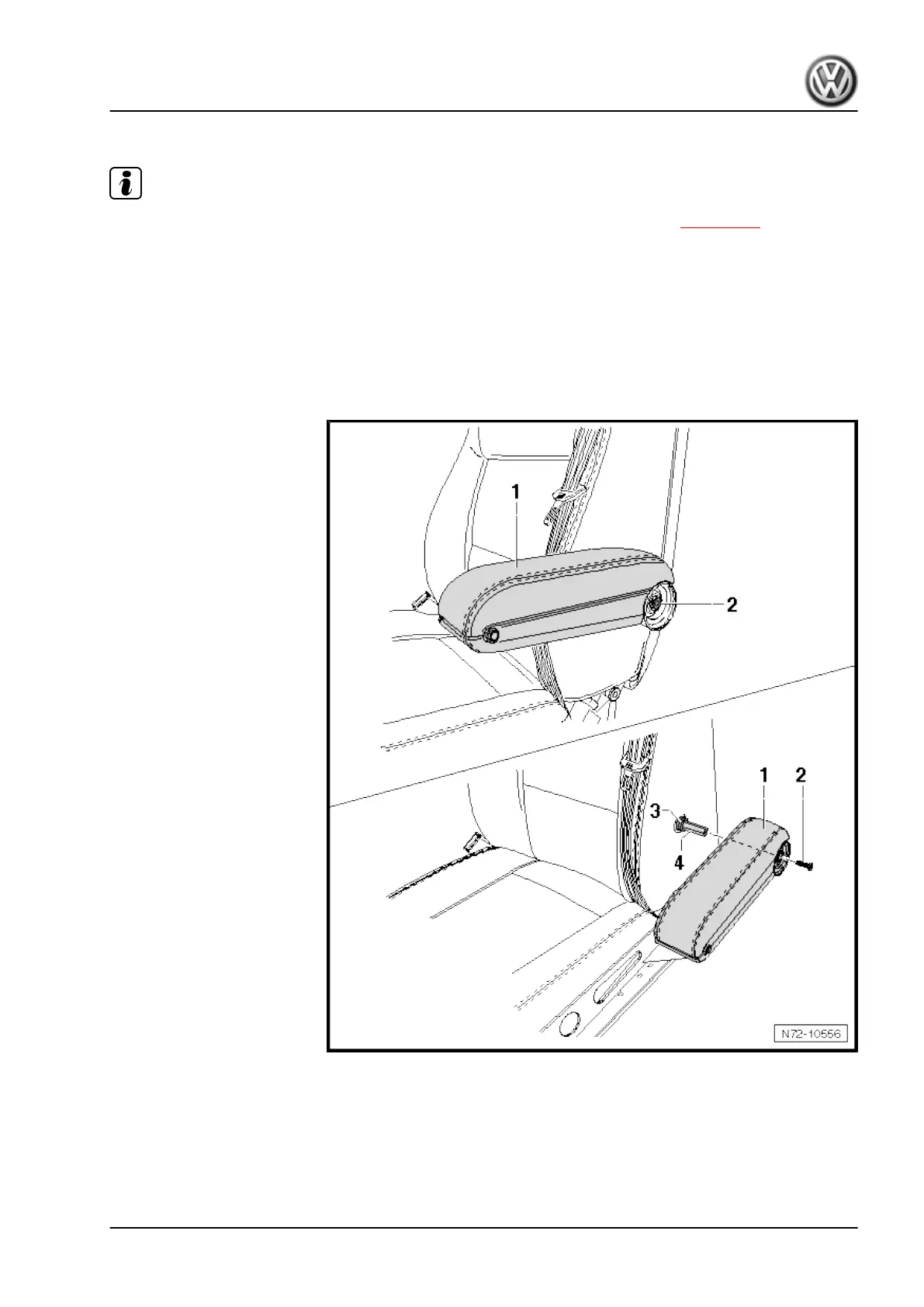

– Drill a hole right into the “perforation” of cap -2- using a 2 mm
drill -4-.
– Using drift -3- lever off cap -2- in -direction of arrow- and re‐
move it from armrest -1-.
– Unscrew bolt -2-.
– Remove armrest -1- from seat frame pin -4-.
– Remove spacer ring -3- from seat frame pin -4-.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
4. Rear seats, Business 405
