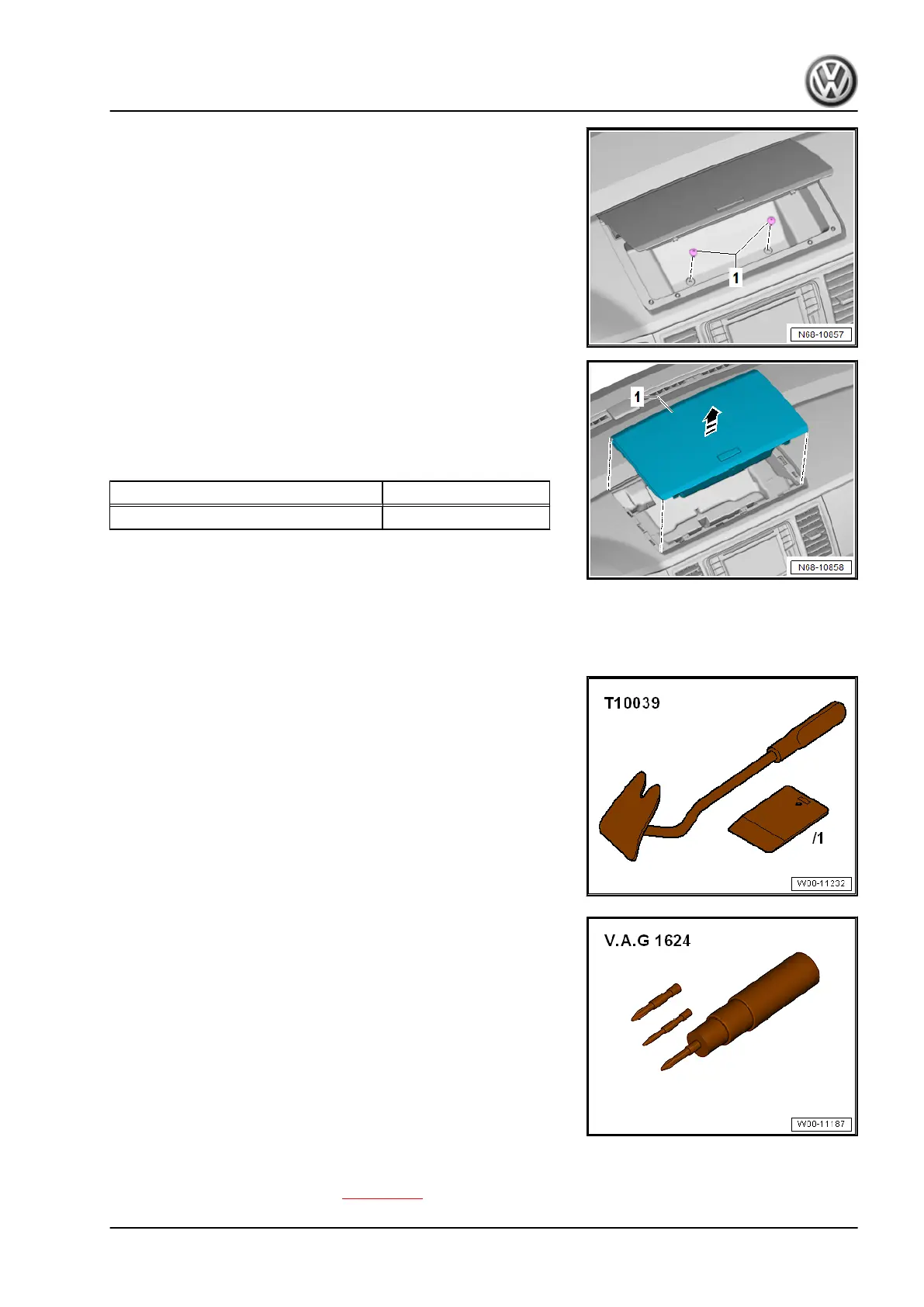

– Unscrew bolts -1-.

– Unclip storage compartment -1- in -direction of arrow- from

dash panel.

Installing

Install in reverse order of removal, observing the following:

Specified torques

Component Specified torque

Bolts -1- in storage compartment 1.5 Nm

1.13.3 Removing and installing dash panel

storage compartment, Transporter

Special tools and workshop equipment required

♦ Release lever - T10039-

♦ Torque screwdriver - V.A.G 1624-

Removing

– Remove right dash panel vent ⇒ page 213 .

Transporter 2016 ➤

General body repairs, interior - Edition 03.2020

1. Compartments/covers 35
