1 - Heater element
❑ Heated seat cushion for
driver seat - Z6-
❑ Heated seat cushion for
front passenger seat -
Z8-
❑ Removing and installing
⇒ page 452
❑ Observe technical prod‐
uct information. Seat
heating not functional;
seat cover or backrest
cover damaged. Proc‐
ess no.: 2050995
2 - Adhesive tape
3 - Electrical connector
4 - Seat padding
❑ Removing and installing
front seat cushion for
height-adjustable front
seat ⇒ page 436
❑ Removing and installing
front seat cushion for
front swivel seat
⇒ page 436
❑ Allocation ⇒ Electronic
parts catalogue
5 - Seat frame
❑ Allocation ⇒ Electronic
parts catalogue

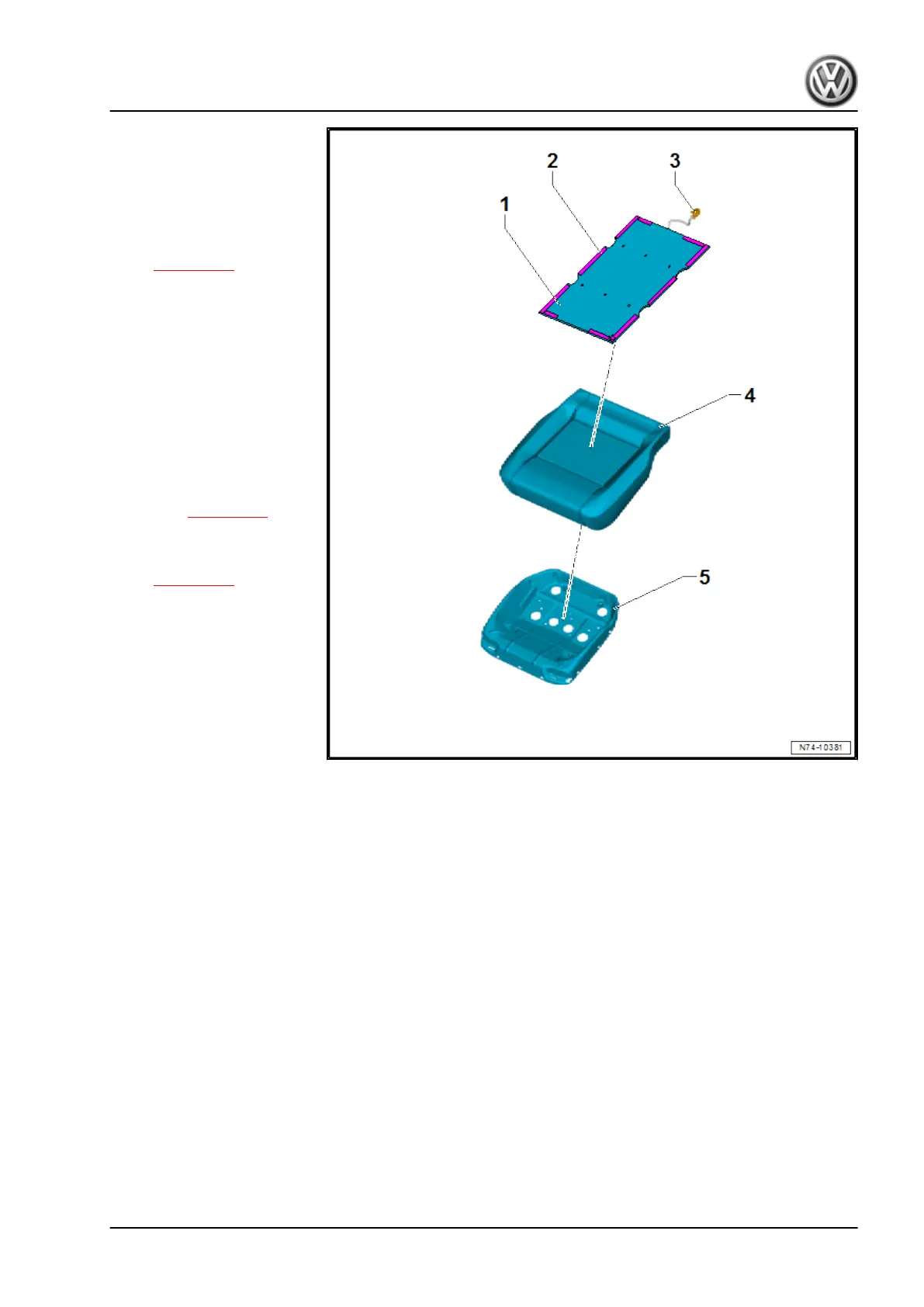

1.1.2 Assembly overview - seat heating ele‐
ment, double bench seat
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
1. Front seat covers and padding 433
