– Depending on equipment, unclip trim or roof display unit -
J702- -3-.
– Unscrew bolts -5-.
– Starting at front, pull roof console -1- downwards out of moul‐
ded headliner.
– Disconnect any electrical connectors.
Now, the following components can be unclipped from the roof
console frame as necessary:
♦ Front interior light - WX1- -6-
♦ Switch for front interior light/reading light -9-
♦ Sliding sunroof adjustment regulator - E139- -2-
♦ Interior monitor send and receive module 1 - G303- with tow-
away protection control unit - J529- -8-
Installing
Install in reverse order of removal, observing the following:
– Before installing, check retaining clips -4- and -7- for damage,
and renew them as necessary.
Specified torques
♦ ⇒ “1.5 Assembly overview - storage compartment in headlin‐
er”, page 26
1.14.2 Removing and installing storage com‐
partment in roof headliner, vehicles with
camping equipment

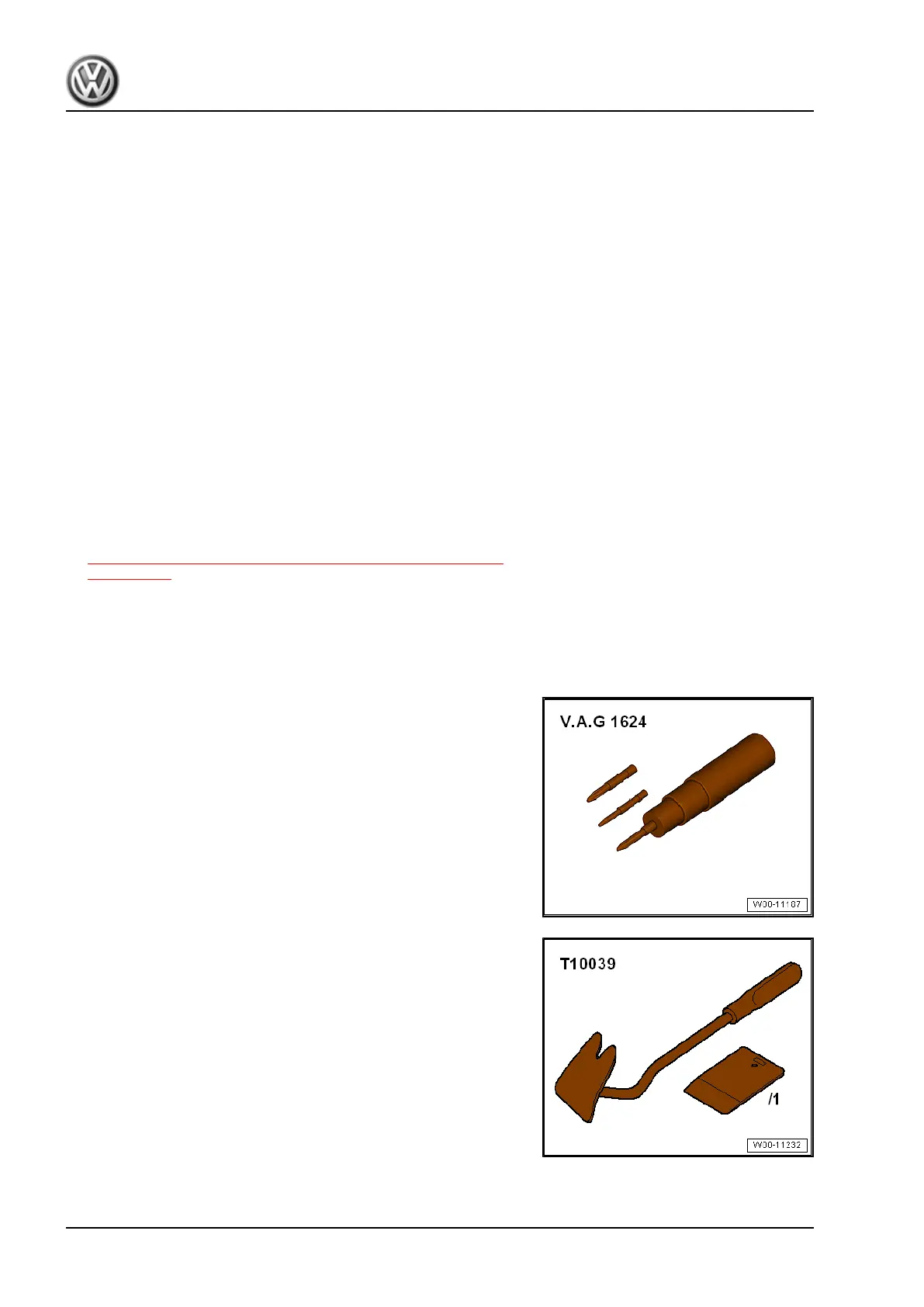

Special tools and workshop equipment required
♦ Torque screwdriver - V.A.G 1624-
♦ Release lever - T10039-
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
38 Rep. gr.68 - Interior equipment
