Removing
– Remove cover of front seat cushion ⇒ page 436 .

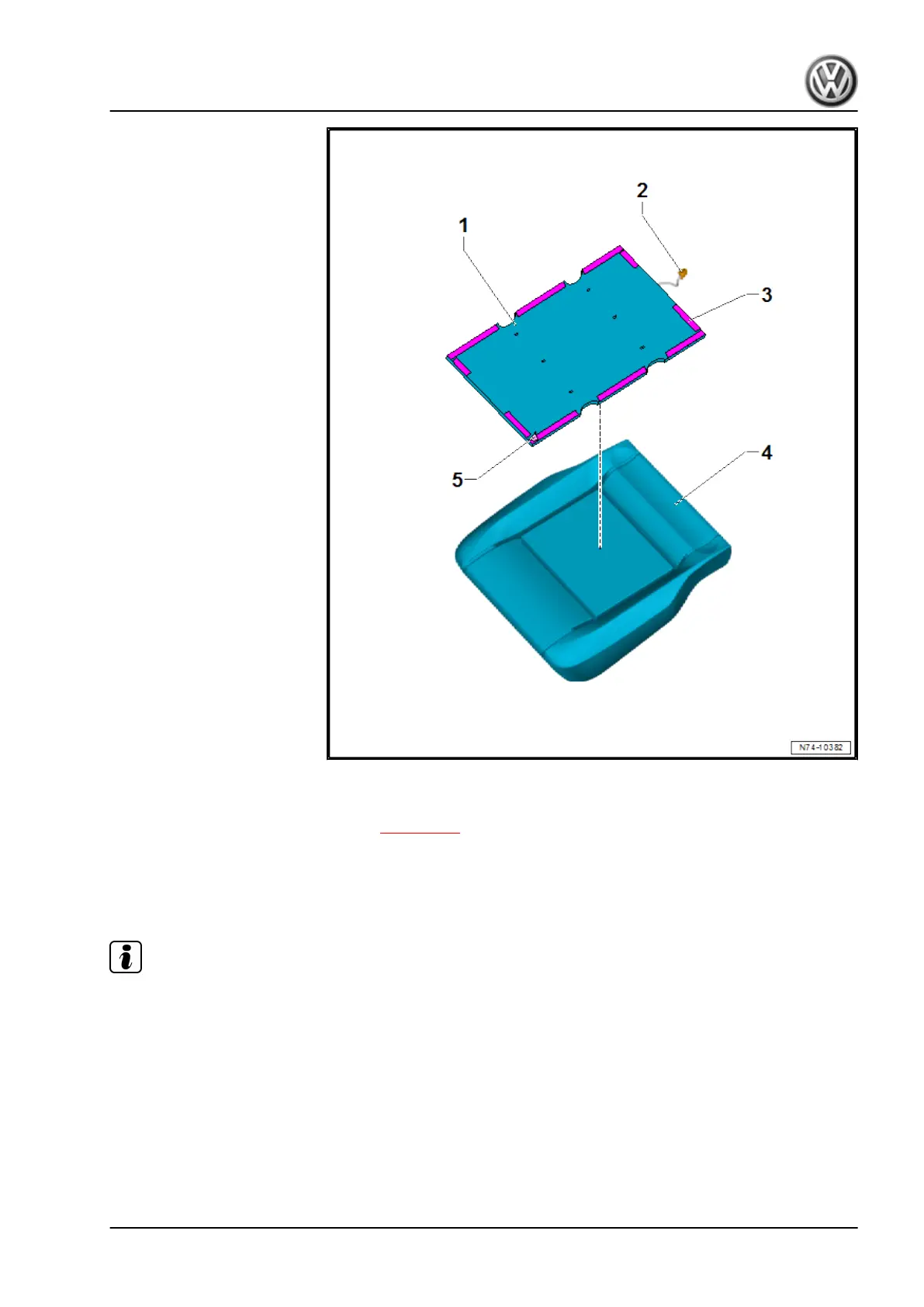

– Separate electrical connector -2- directly on heater element
-1-.
– Partially warm-up heater element -1- and padding -4- using
hot air blower - V.A.G 1416- from a distance of ≈ 30 cm.
Note
Temperature setting of hot air blower: 220°C
– Carefully pull heater element -1- off padding -4-.
Installing
Install in reverse order of removal, observing the following:
– Align new heater element -1- on padding -4-.
– Pull protective films -5- one after other off heater elements.
Make sure not to damage heater elements -3-.
– Bond in heater element -1- without creases.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
1. Front seat covers and padding 453
