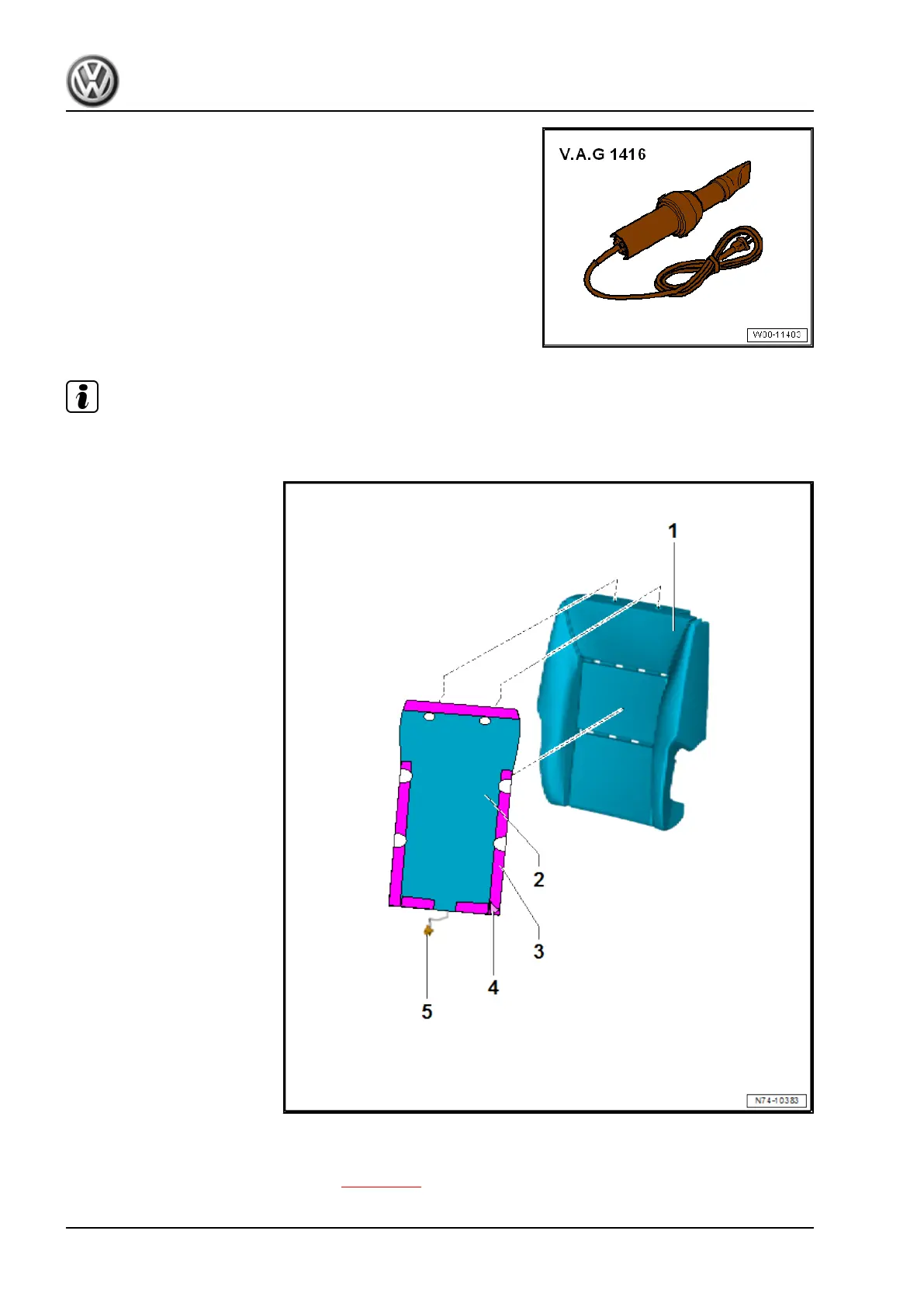

Hot-air blower - V.A.G 1416-
Note
Backrest heater element cannot be removed without causing damage.
Removing
–
Remove cover of front seat backrest
⇒ page 444
.
