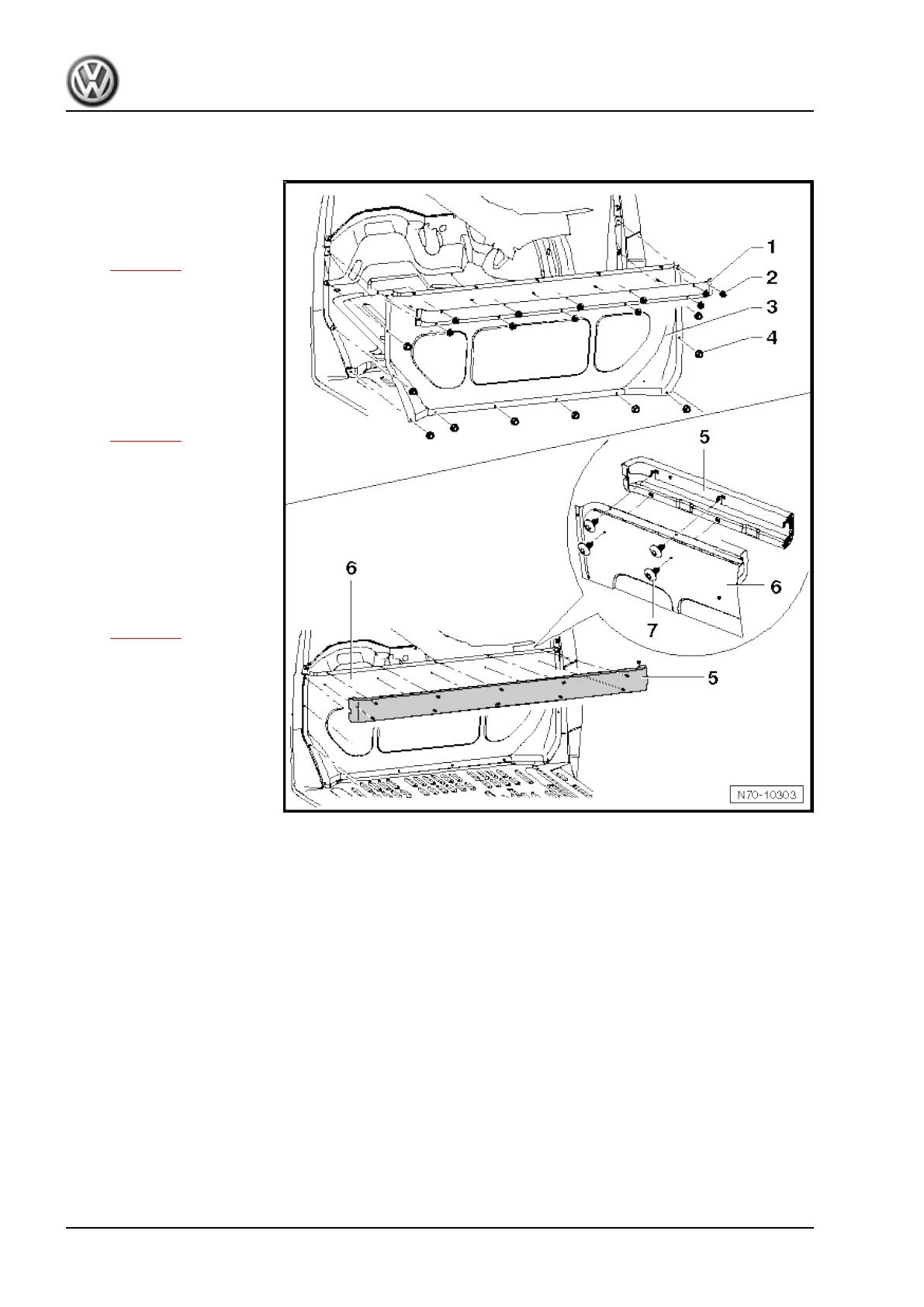

2.1.2 Assembly overview - partition, panel van, partition lower part
1 - Cross panel with beading
❑ Only installed with semi
high partition
❑ Removing and installing
⇒ page 53
2 - Hexagon nut
❑ Qty. 12
❑ 8 Nm
3 - Lower part of partition panel
❑ Bolted to upper part of
partition
❑ Removing and installing
⇒ page 53
4 - Hexagon nut
❑ Qty. 10
❑ 8 Nm
5 - Cross panel with beading
❑ Only installed with semi
high partition
6 - Lower part of partition panel
❑ Removing and installing
⇒ page 53
7 - Bolt
❑ Qty. 10
❑ 2 Nm
