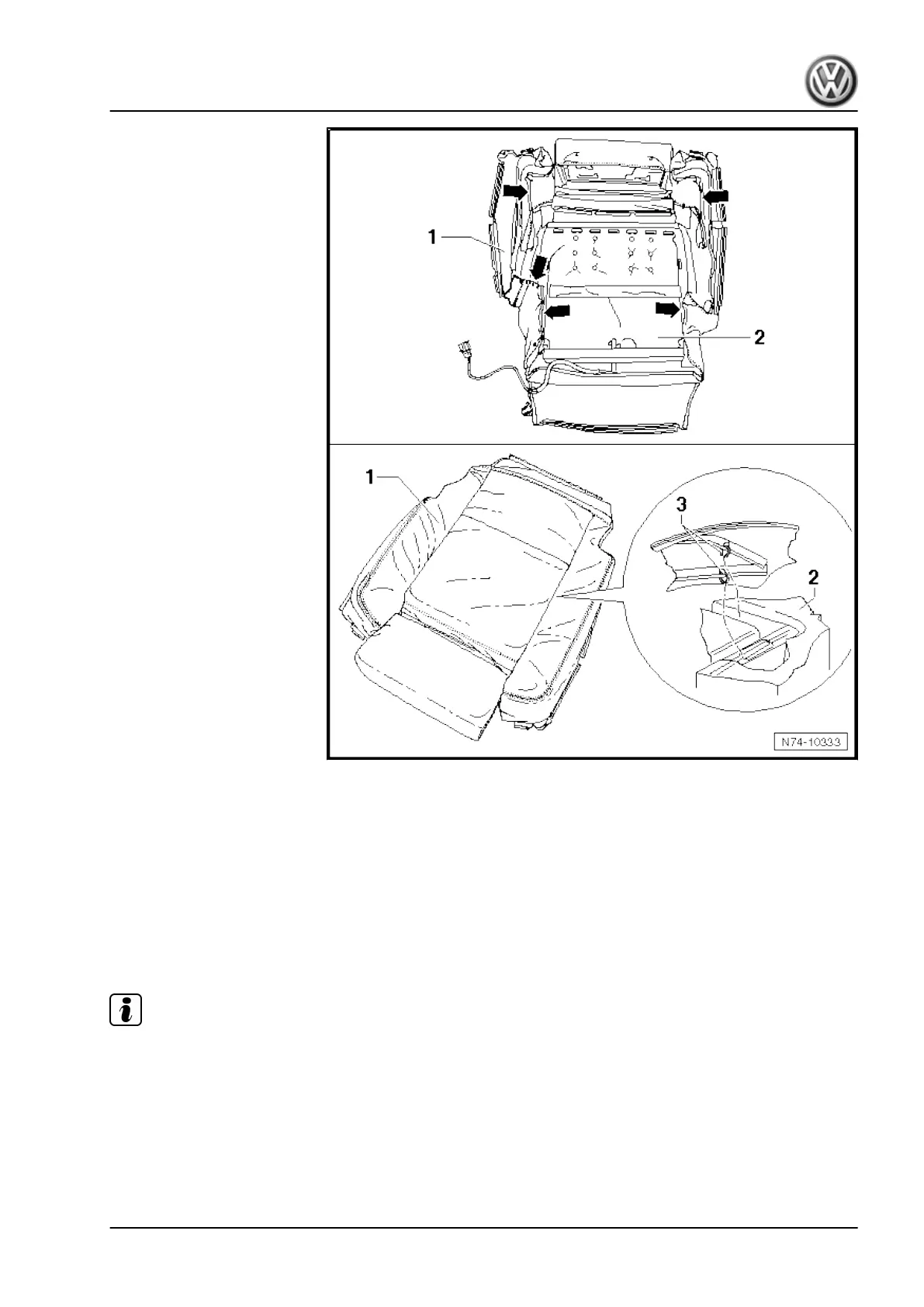

– Remove all upholstery clips -arrows- on bottom.
– Release seat cover -1- all round from padding -2- and fold it
upwards.
– Remove all upholstery clips -3- from mountings in padding
from top.
– Remove seat cover -1- from padding -2-.
Installing
Install in reverse order of removal, observing the following:
Note
♦
Before installing, check all fasteners for damage and renew if
necessary.
♦
Always renew upholstery clips with clips - N.015.261.1- .
♦
Attach upholstery clips using upholstery clip pliers - V.A.G
1634B- .
♦
To aid installation, heat up cover to approx. 30°C.
– Place padding on seat frame.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
3. Rear seat covers and padding, Business 517
