Removing
– Remove seat ⇒ page 401 .
– Remove backrest trim ⇒ page 411 .
– Remove head restraint ⇒ page 406 .
– Remove trim for head restraint adjuster ⇒ page 408 .

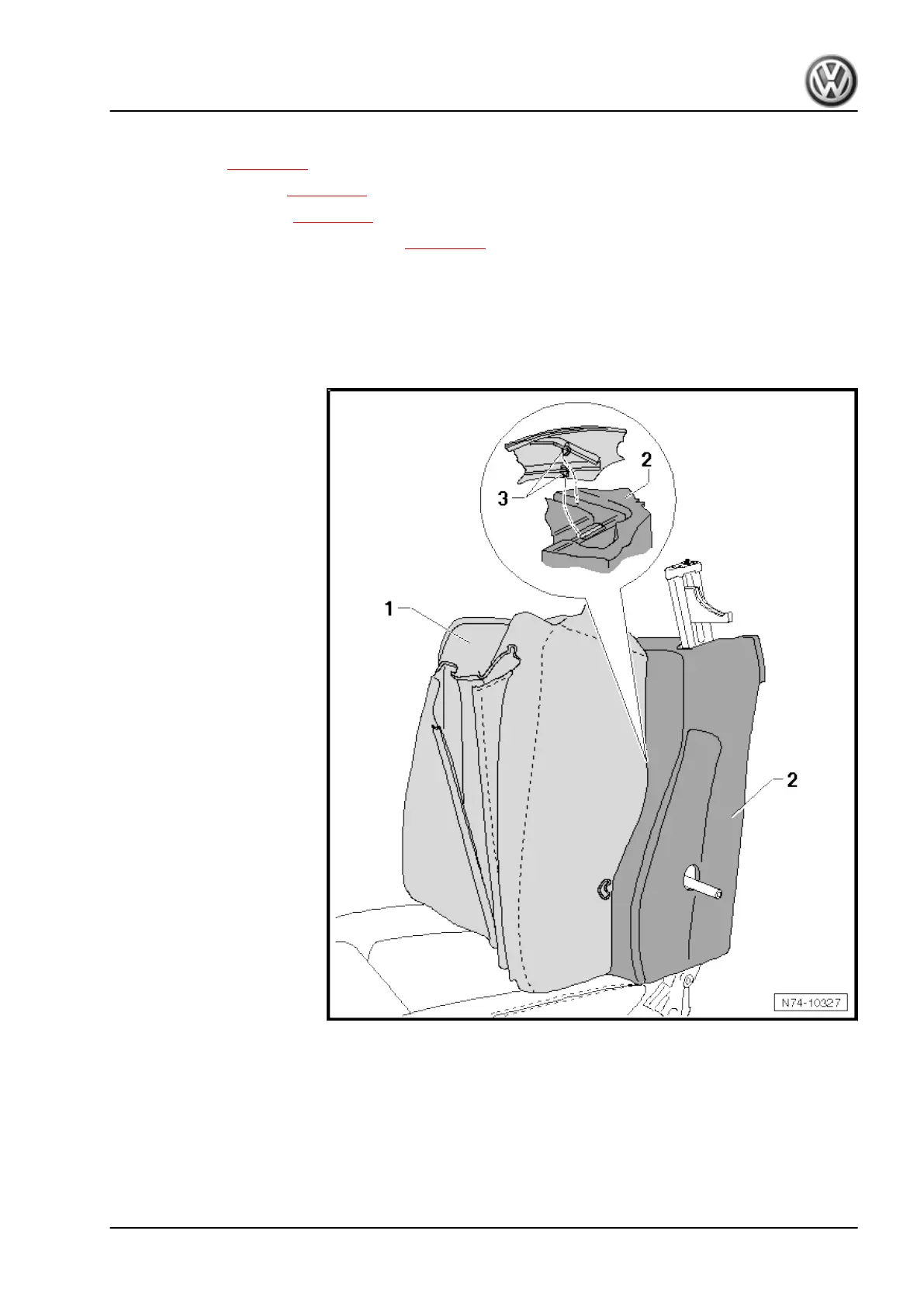

– Open clamping profile -5-, detach clamping profile -2-, and fold
backrest cover -1- off padding in -direction of arrow A-.
– Detach clamping profiles -3-.
– Remove backrest cover in -direction of arrow B- from mount‐
ings -4-.
– Fold backrest cover -1- further off padding -2-.
– Remove all upholstery clips -3- from padding -2-.
– Remove backrest cover -1- from padding -2-.
