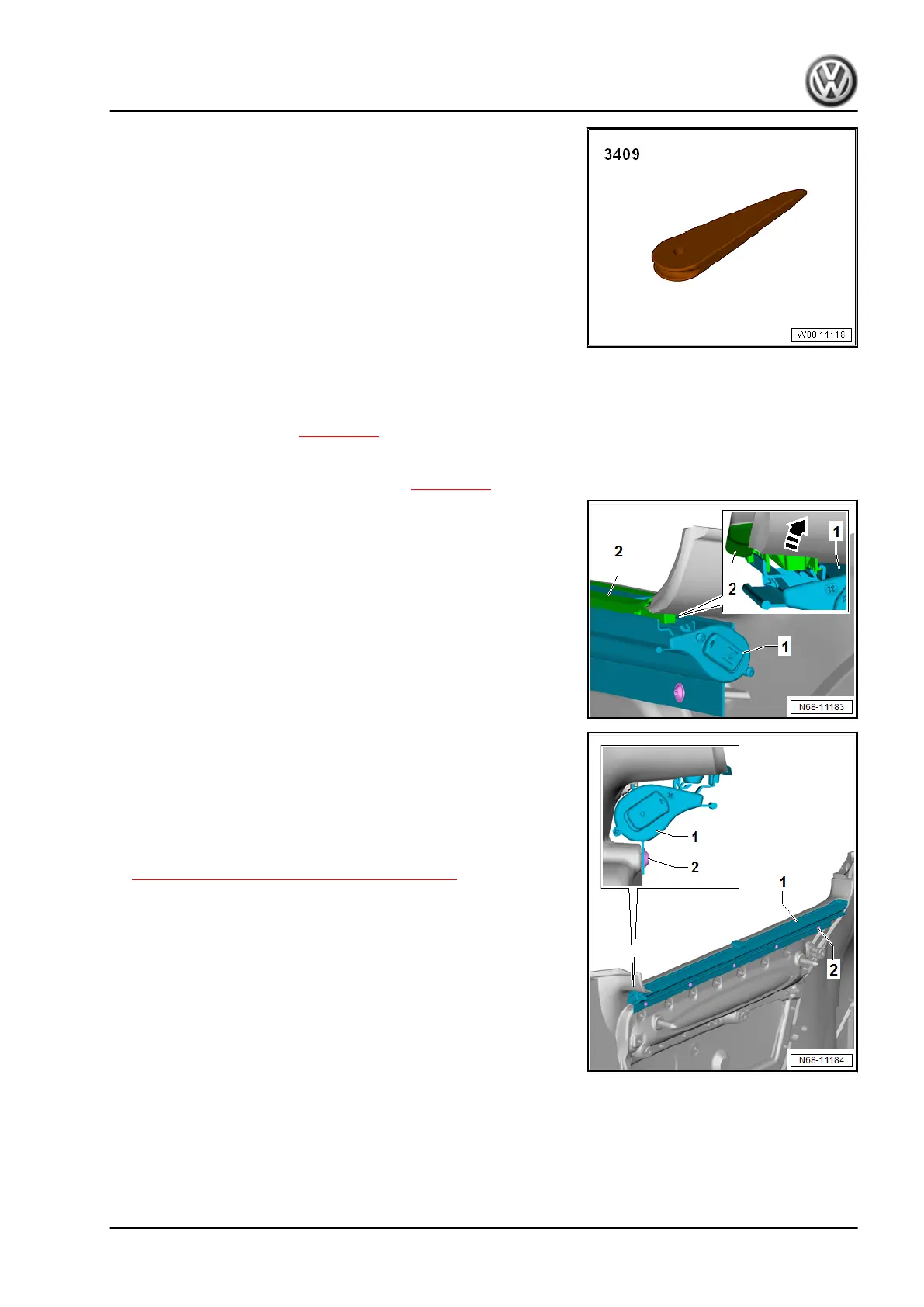

♦ Removal wedge - 3409-
Removing
Vehicles with front side trim panel
– Remove side trim panel ⇒ page 242 .
Vehicles with rear luggage compartment side trim
– Remove luggage compartment side trim ⇒ page 259 .
Continued for all vehicles
– Unclip guide rail -2- from side trim panel using removal wedge
- 3409- in direction of -arrow-.
– Pull sun blind -1- slightly out of side trim panel and remove tab
through guide rail -2-.
– Unscrew bolts -2-.
– Remove sun blind -1-.
Installing
Install in reverse order of removal, observing the following:
Specified torque
♦ ⇒ “2.4 Assembly overview - sun blind”, page 47
