6.4 Table module in seat rails, removing and installing table top
Removing
– Remove table module ⇒ page 80 .
– Move table to uppermost position.
– Turn table top 90°.

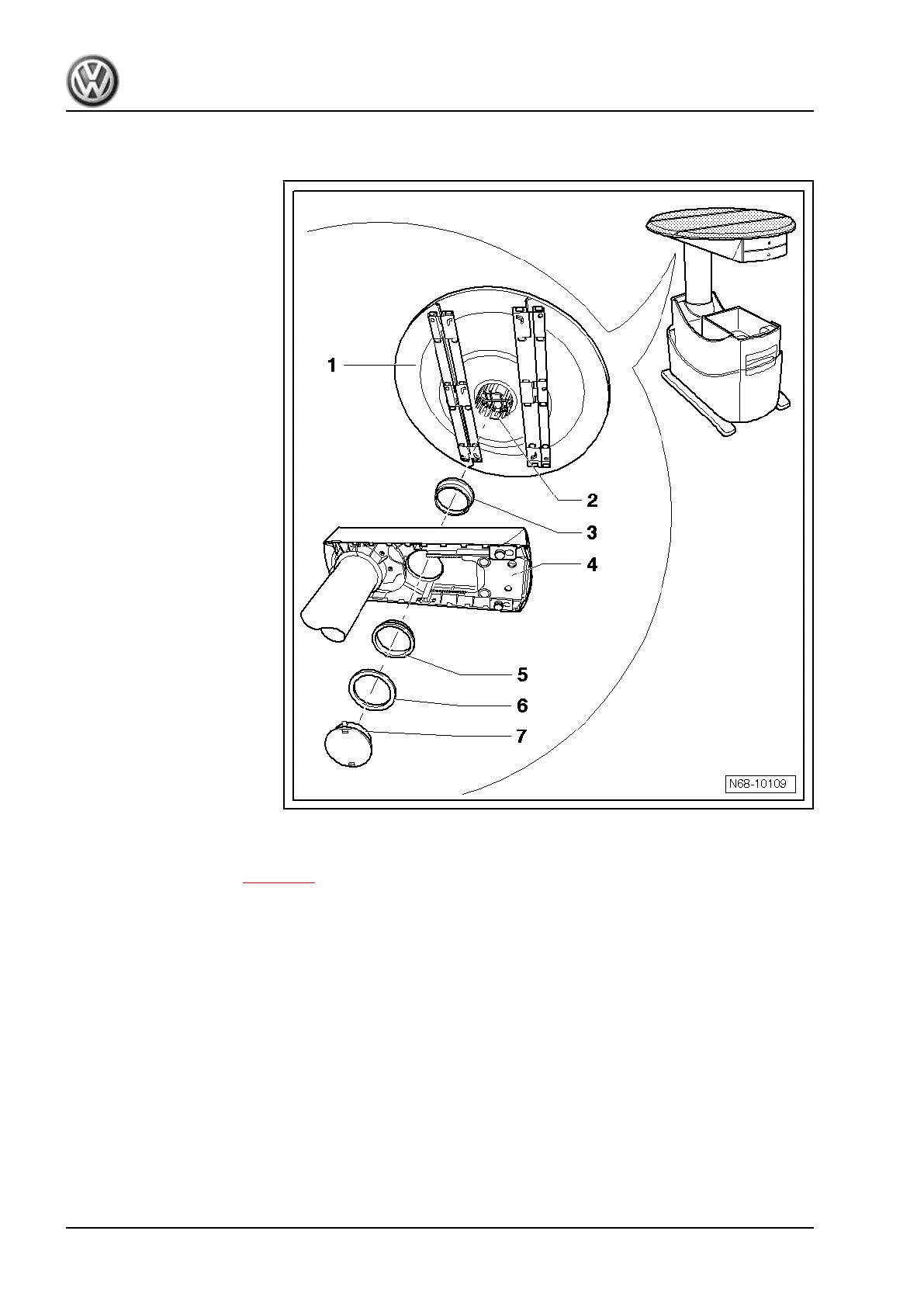

– Use a small screwdriver to lever off end cap -7- from carrier
plate -4-.
– Push fasteners -2- inwards around circumference and remove
spacer ring -6- and lower bearing shell -5- from carrier plate
-4-.
– Remove table top -1- from carrier plate.
– Detach upper bearing shell -3- from table top.
Installing
Install in reverse order of removal, observing the following:
– Check that all locking elements -2- are engaged following in‐
stallation.
Transporter 2016 ➤
General body repairs, interior - Edition 03.2020
82 Rep. gr.68 - Interior equipment
