3-66
OM 28Z3 US – Edition 2.0 *
* 28Z3b340.fm
Operation

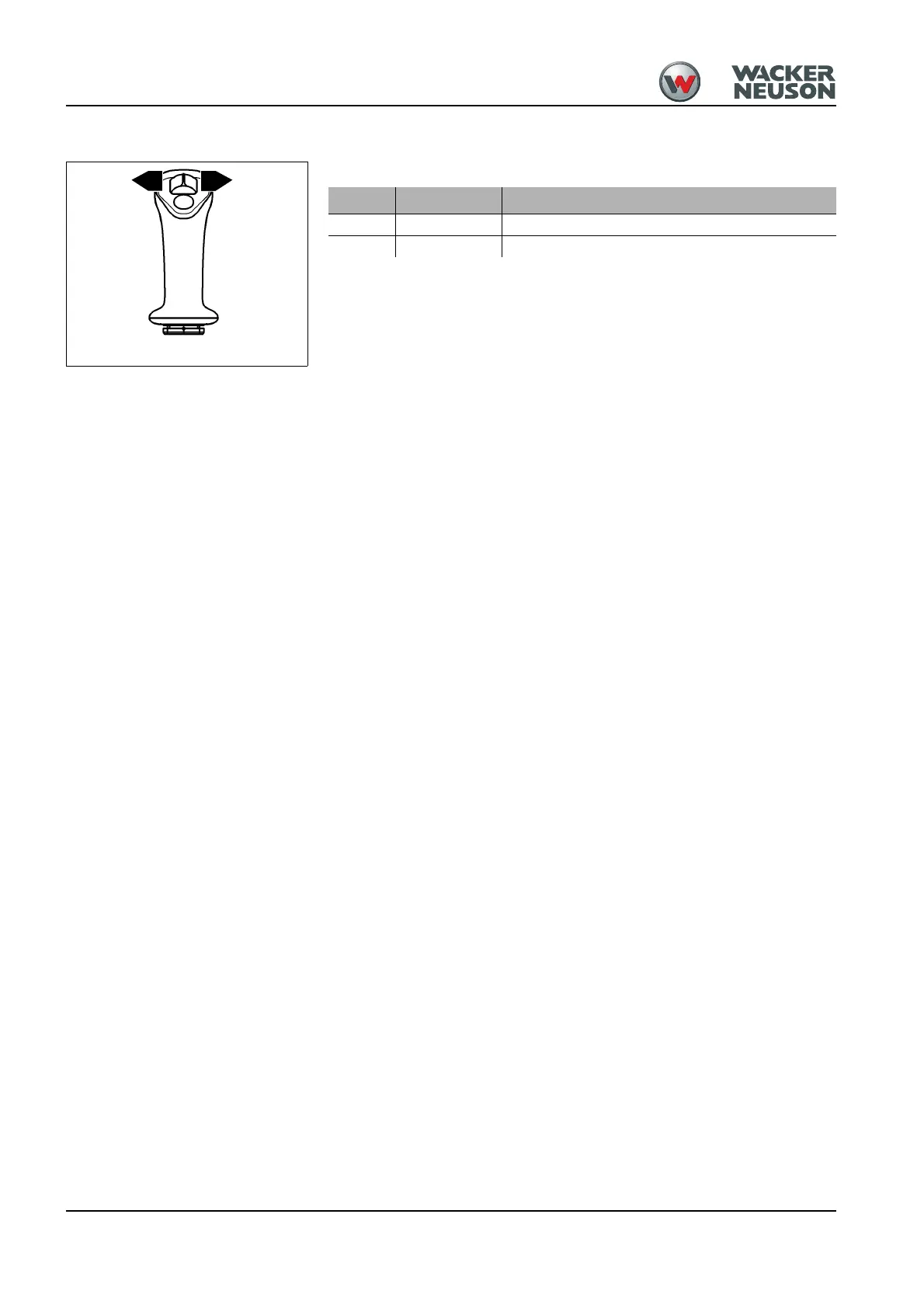

Right-hand side contro
l lever (Powertilt)
The Powertilt functions are operated
with the right-hand side control lever
.
A
B
Fig. 90:
Right-hand side control lever
Position
Lever
Function
•A
☞
To the left
➥
Powertilt turns to the left
•B
☞
To the right
➥
Powertilt turns to the right
131
133
