OM 28Z3 US – Edition 2.0 * 28Z3b340.fm 3-75
Operation
3.37 Grading
Warning!
Possibility of crushing / striking injury from a moving stabilizer blade.
• Make sure no one is in the area of danger when working with the stabi-
lizer blade
Grading
☞ Lower the stabilizer blade to the ground
– see chapter Stabilizer blade operation on page 3-20
☞ Set the depth of the layer you want to remove with the stabilizer blade lever
➥ Do not raise the machine by lowering the stabilizer blade
➥ The clearance between the stabilizer blade and the ground should be about 1 cm
(0.4’’).
3.38 Safe load indicator (option)
Warning!
Possibility of personal injury or equipment damage from an inaccurate or non-
functioning safe load indicator.
• Always switch on the safe load indicator!
• Contact your Wacker Neuson dealer if the safe load indicator is not
adjusted correctly.
Engage the safe load indicator as follows:
☞ Press switch 40 on the instrument panel.
➥ Indicator light 35 illuminates the lift symbol if an overload is sensed.
The safe load indicator light illuminates, and an alarm sounds, to warn the operator he has
reached the maximum admissible load. Any further increase of the load moment can
cause the machine to overturn in this situation. Therefore the operator must immediately
reduce the load moment as follows:
☞ Reduce the distance between the upper carriage and the load until both the alarm and
the indicator light in the round display element go out

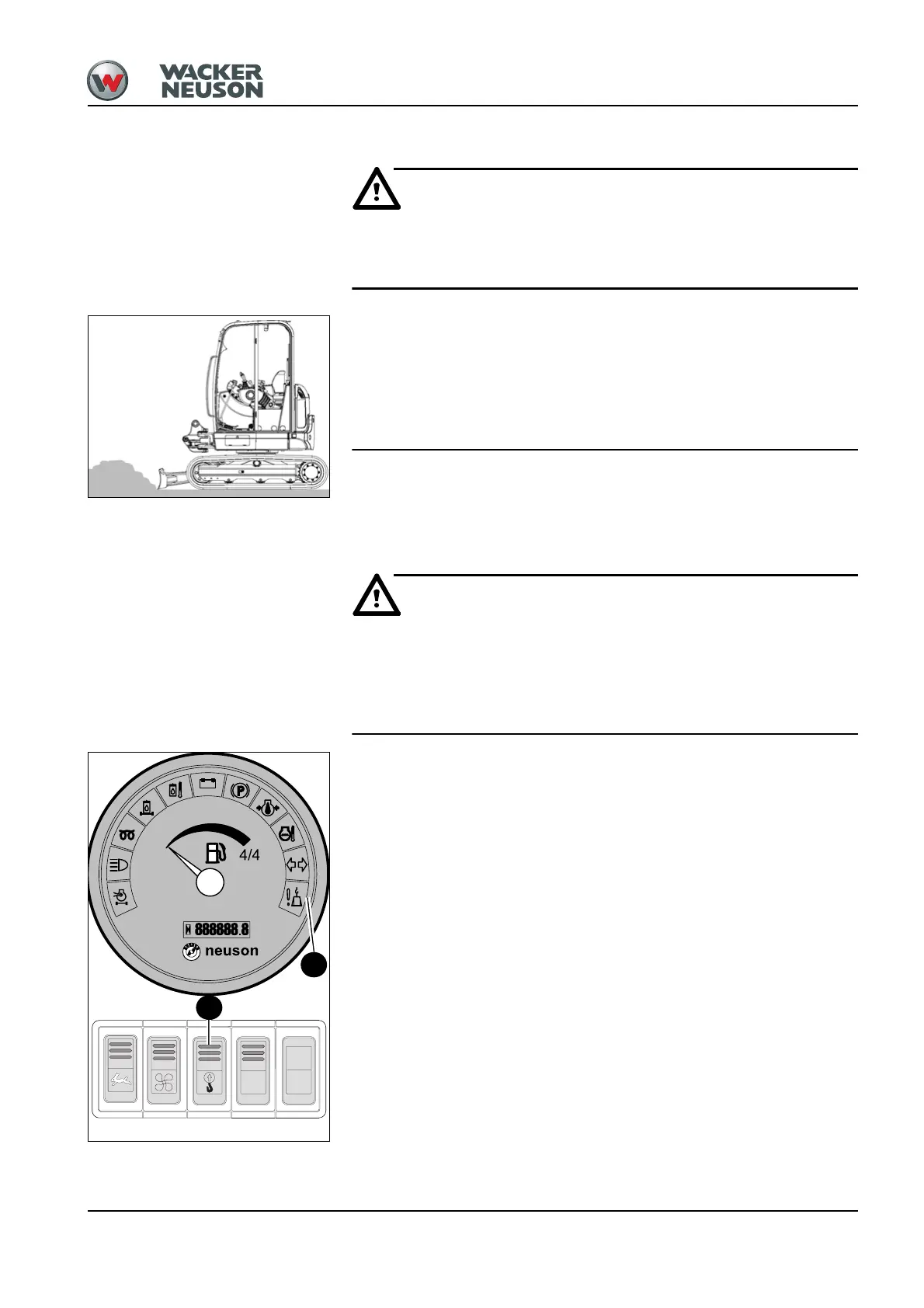

Fig. 111: Indicator lights for safe load indicator
35
40
