Introduction
Symbols
The following symbols are displayed on the machine to provide pictorial information to the
user. The information and explanations are provided to avoid misinterpretation by the user.
The symbols have been chosen to provide important information to those involved with
operating, adjusting, maintaining, and repairing this machine.
Description
Locates the lifting points for hoisting the excavator with lifting devices (slings, tracks, or
cables).
Location
On either side of the stabilizer blade, and on either side of the boom near the cylinder end
of the hydraulic stick cylinder mounting.
Description
Tie down points.
Points for tying down the machine during transport to prevent movement during transport.
Location
On either side of the stabilizer blade, and on either side of the undercarriage.
Description
Noise levels produced by the machine.
L
WA
= sound power level
Location
Cabine: on the left window.
Canopy: on the right canopy wall.
Description
This label shows the forward driving direction.
Location
On either side of the undercarriage at the supporting rollers.
Description
Fill location for diesel fuel.
Location
Near the fuel filler neck in engine compartment.

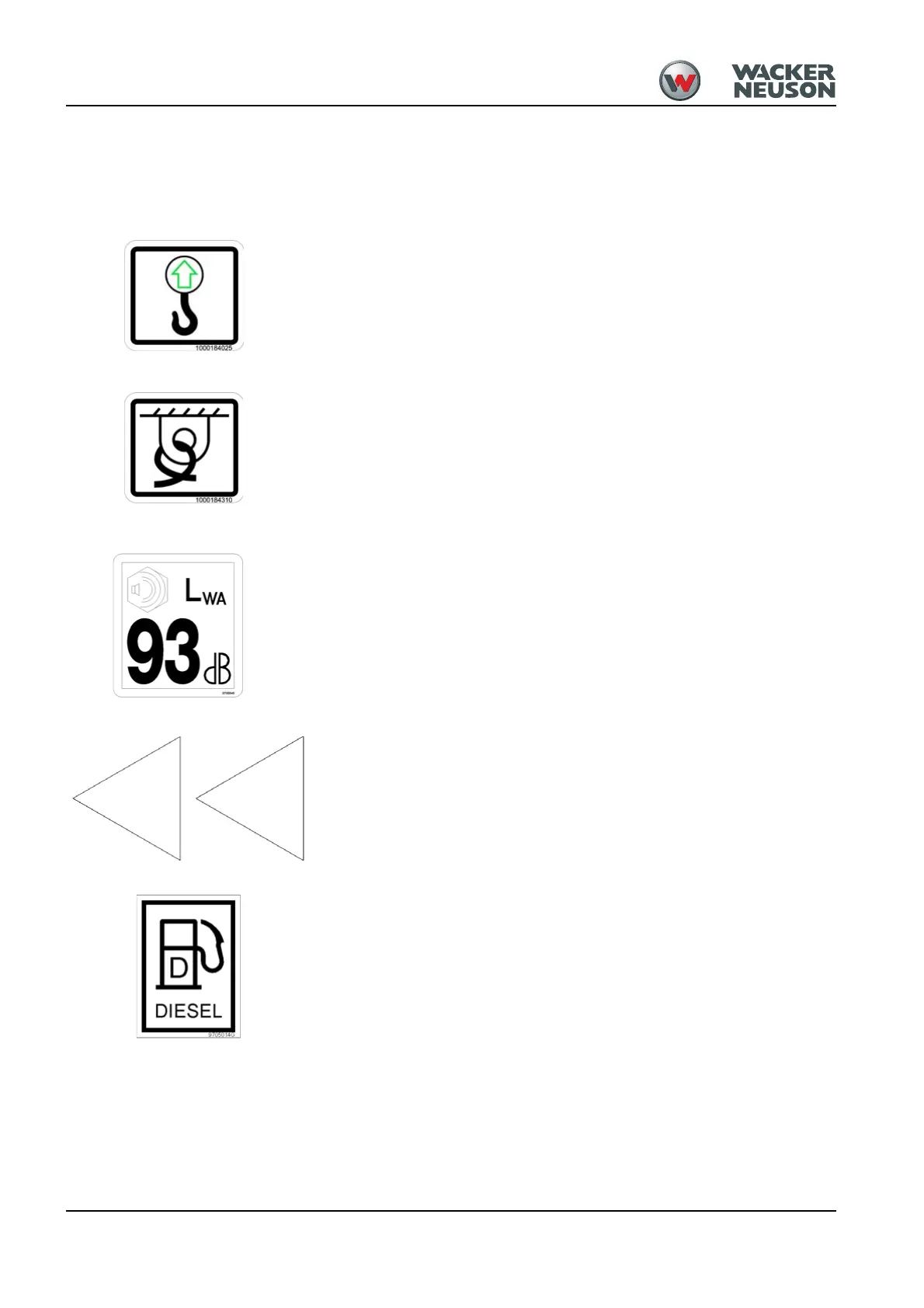

Fig. 27: Eye hook label
Fig. 28: Label for points used for tying down the machine
Fig. 29: Noise level label
Fig. 30: Direction arrows
Fig. 31: Diesel
