Wacker Neuson 28Z3 User Manual

OM 28Z3 US – Edition 2.0 * 28Z3b110.fm 1-11
Introduction
1.10 Symbols (up to AG01685)
The following symbols are displayed on the machine to provide pictorial information to the
user.The information and explanations are provided to avoid misinterpretation by the
user.The symbols have been chosen to provide important information to those involved
with operating, adjusting, maintaining, and repairing this machine.
...on the outside of the machine
Description
Locates the lifting points for hoisting the excavator with lifting devices (slings,tracks,or
cables).
Location
On either side of the stabilizer blade, and on either side of the boom near the cylinder end
of the stick hydraulic cylinder mounting.
Description
Tie down points.
Location points designated for tie down of the machine during transport to prevent move-
ment during transport.
– see chapter 3.22 Tying down the excavator on page 3-38
Location
On either side of the stabilizer blade, and on either side of the undercarriage
Description
Noise levels produced by the machine.
L
WA
= sound power level
Other information – see chapter 6.8 Noise levels on page 6-4
Location
Next to the cab door
Description
This label shows the forward driving direction.
Location
On either side of the undercarriage at the idler end of the structure
Description
Safety alert symbol.
This label warns persons standing or working near the excavator of an existing safety haz-
ard within the area around the machine.
Location
On either side of the arm system

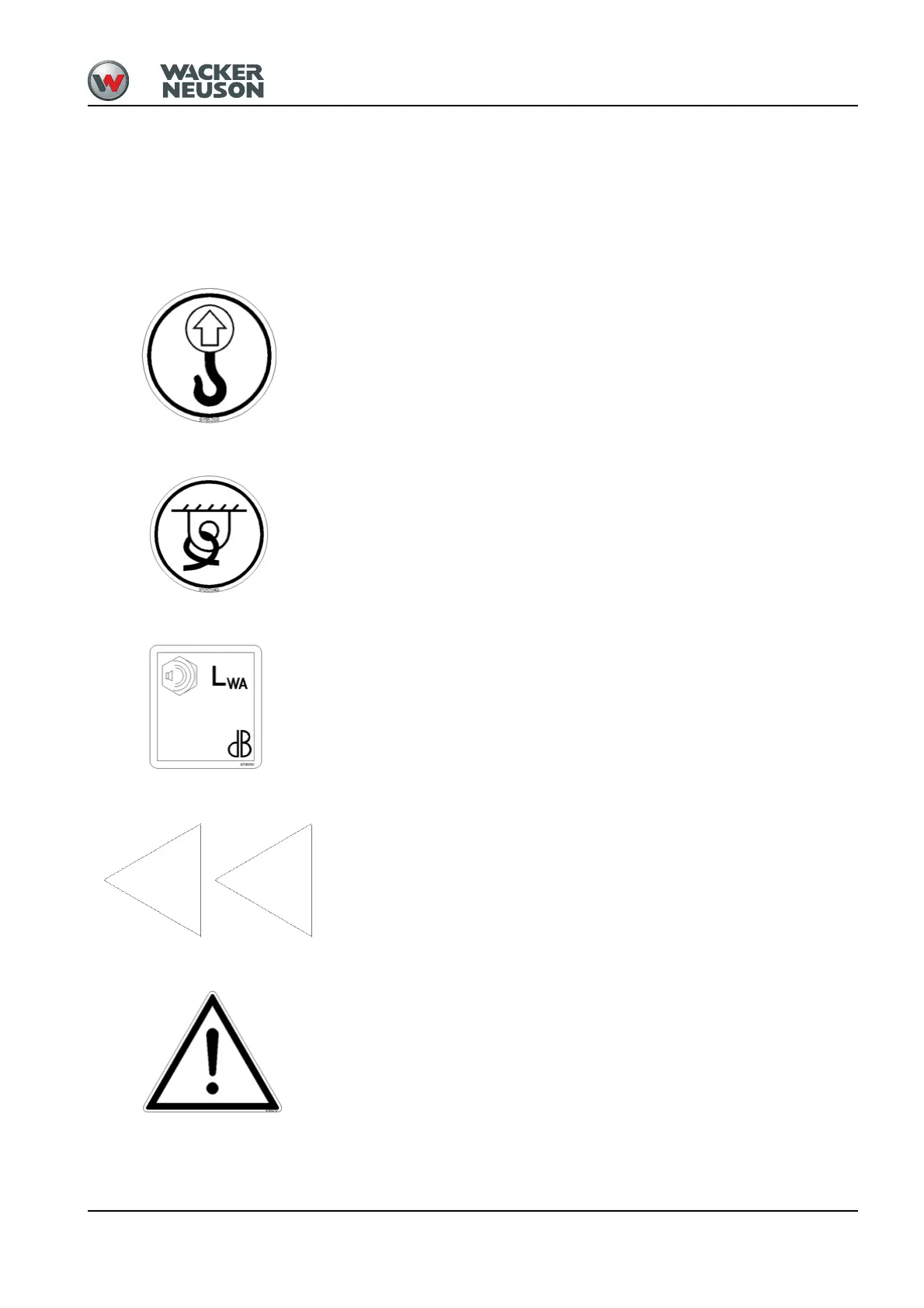

Fig. 7: Eye hook label
Fig. 8: Label for points used for tying down the machine
Fig. 9: Noise level label
93
Fig. 10: Direction indicator
Fig. 11: Safety alert symbol
