6.12 Dimensions model 28Z3

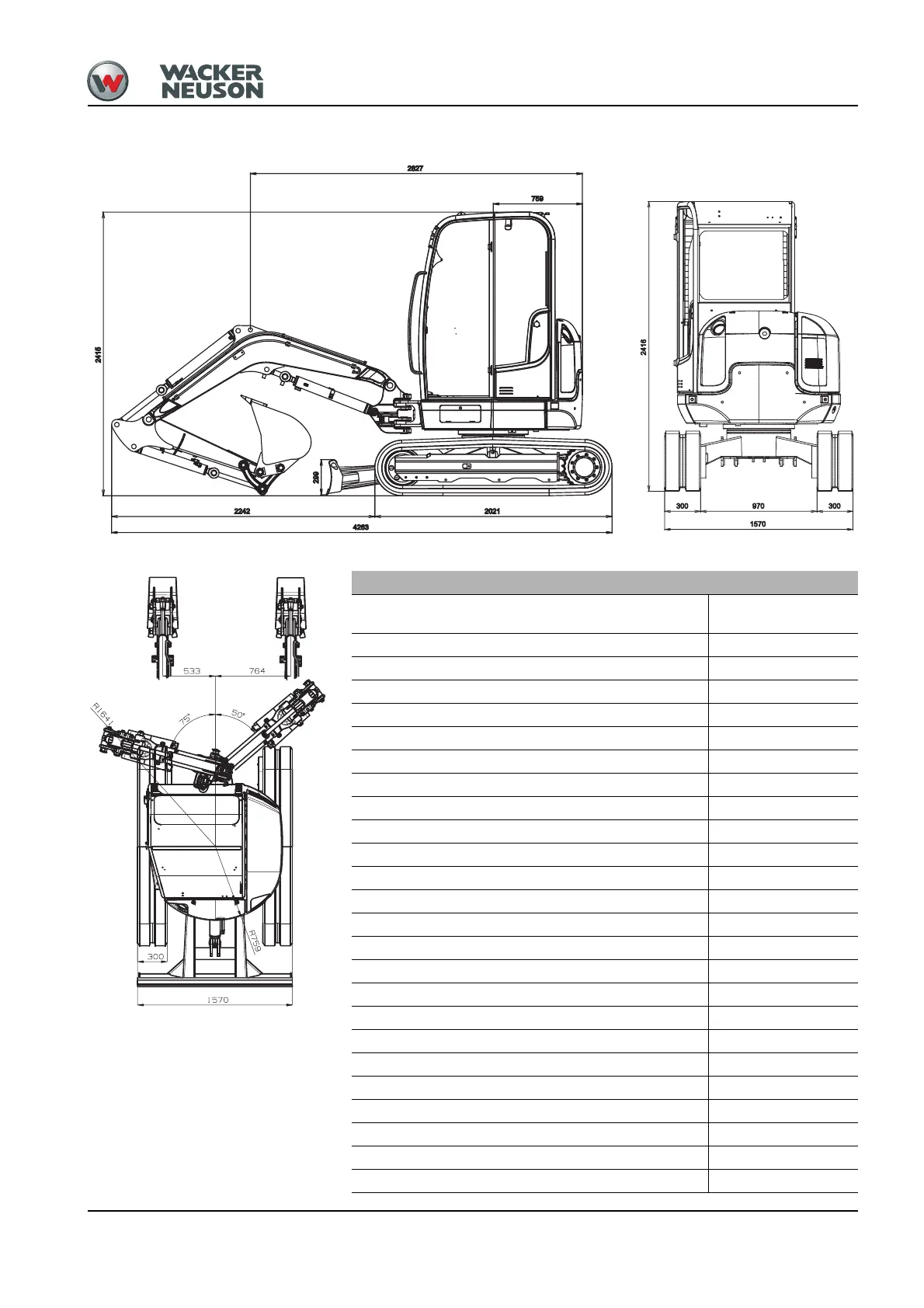

Fig. 141: Machine dimensions (model 28Z3)
Main data
Model 28Z3
Service weight with cab/canopy
2670/2577 kg
(5886,3 / 5681.3 lbs)
Height
2415 mm (7’11’’)
Width
1570 mm (5’2’’)
Transport length
4263 mm (14’’)
Max. digging depth
2544 mm (8’4’’)
Stick length (standard)
1050 mm (3’5’’)
Stick length (long version)
1250 mm (4’1’’)
Max. digging depth for long stick (+ 300 mm)
2744 mm (9’)
Max. vertical digging depth
1962 mm (6’5’’)
Max. vertical digging depth (long stick)
2152 mm (7’1’’)
Max. digging height
4169 mm (13’8’’)
Max. digging height (long stick)
4299 mm (14’1’’)
Max. dump height
2840 mm (9’4’’)
Max. dump height (long stick)
2840 mm (9’4’’)
Max. digging radius
1614 mm (5’4’’)
Max. digging radius (long stick)
2070 mm (6’9’’)
Max. reach at ground level
4481 mm (14’8’’)
Max. reach at ground level (long stick)
4681 mm (15’4’’)
Max. breakout force at bucket tooth
22.5 kN (5058 lbf.)
Max. tearout force (standard stick)
15.4 kN (3462 lbf.)
Max. tearout force (long stick)
21.9 kN (4923 lbf.)
Min. tail end slewing radius
760 mm (2’6’’)
Max. tail end lateral projection (90° rotation of upper carriage)
0 mm (0)
Max. boom displacement to bucket center (right-hand side)
533 mm (1’9’’)
Max. boom displacement to bucket center (left-hand side)
764 mm (2’6’’)
