3.17 Exit through the door
Caution!
Personal injury hazard. Before entering or leaving the operator station, confirm
that the stepping surfaces are clean and firm to avoid slipping or tripping.
☞ Take the following steps before entering or leaving the cab:
• Stop and secure the machine.
– see Stopping and parking the machine on page 3-21
• Lower the boom.
• Stop the engine.
• Remove the starting key.
• Move control levers 2 and 3 repeatedly in all directions.
☞ Raise control lever base 4 with handle A to position B.
➥ The gas strut keeps the control lever base in the top position.
Important!
The control lever and console are not designed as a hand hold for exiting the cab.
• Do not use handle A on the control lever base as a support while entering
or leaving the cab.
• Use the hand hold brackets positioned at the front and rear of the cab
door opening for support.
☞ Fold control lever base 4 down to position C once you are in the cab.
➥ The gas strut keeps the control lever base in the lower position.
Important!
The height of the control lever base can be set with stop bolt D.
Important!
Enter and leave the cab only through the door as a rule. You can enter and exit the
cab through the front and the right-hand side window in an emergency. – see
chapter 3.12 Emergency exit on page 3-29

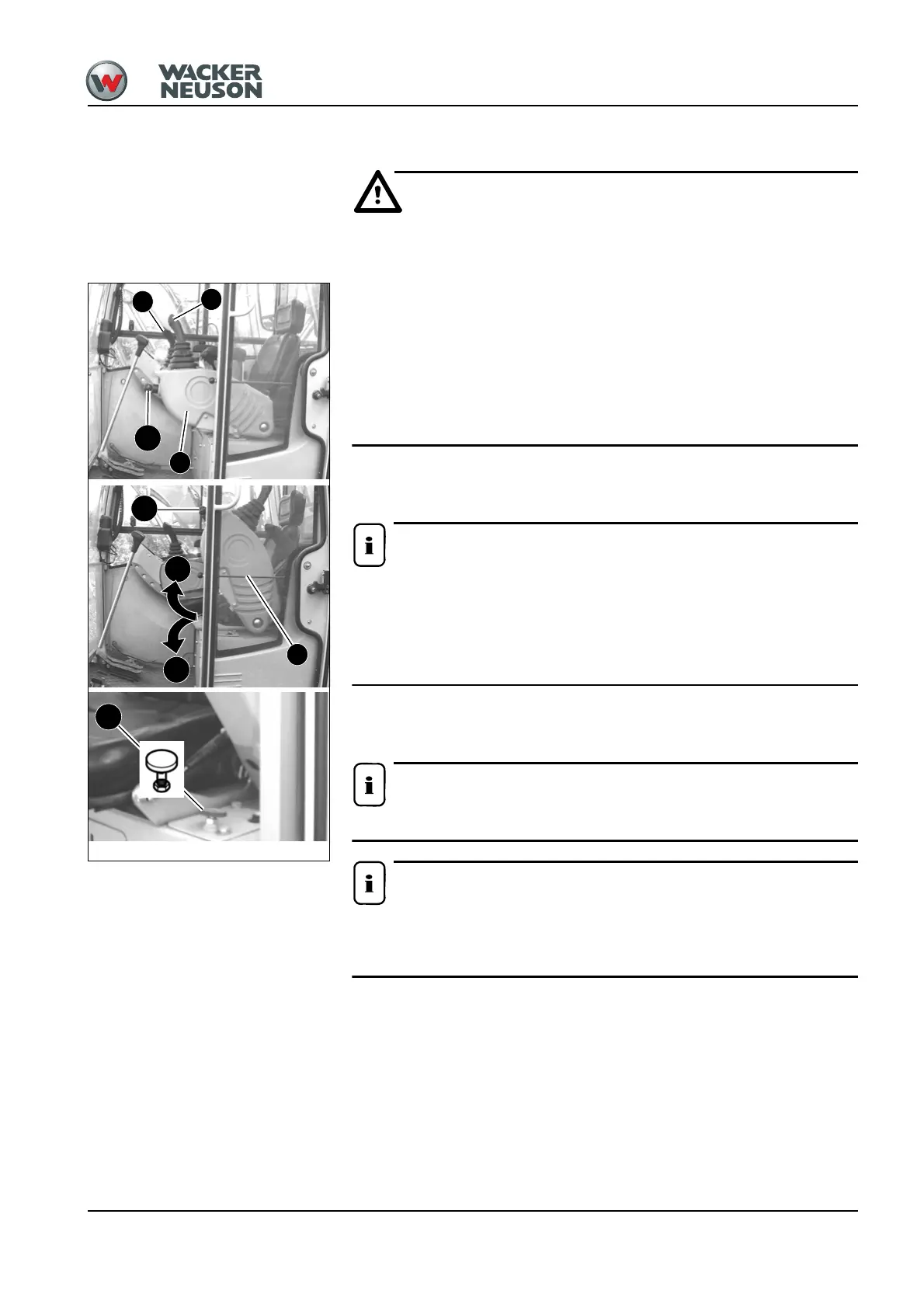

Fig. 38: Control lever base
A
B
C
2
3
4
4
A
D
