Operation
3.13 Front window
Caution!
Crush hazard. Sliding window can pinch or crush extremities.
• Keep extremities and clothing free of the window run.
Always pull the front window upward with both handles B!
Always let levers A lock into place on either side in locks F or C!
Important!
Fold up the control lever base before opening or closing the front window, in order
to avoid any unintentional operation or movement of the machine!
Open the front window as follows:
• The front window is fitted with handles and small levers on either side.
☞ Push levers A down on either side.
☞ Pull the front window upward.
➥ The front window must lock into rails C on either side.
☞ Lock levers A on either side in C.
☞ Pull levers A to the rear to do this.
☞ Check whether both levers A are actually locked in rails C.
Fold down the front window as follows:
☞ Push levers A forward on either side.
☞ Pull the front window downward with handles B.
☞ Lock the front window again by means of levers A in lock F.
☞ Pull levers A upward to do this.
☞ Check whether both levers A are actually locked in rails F.

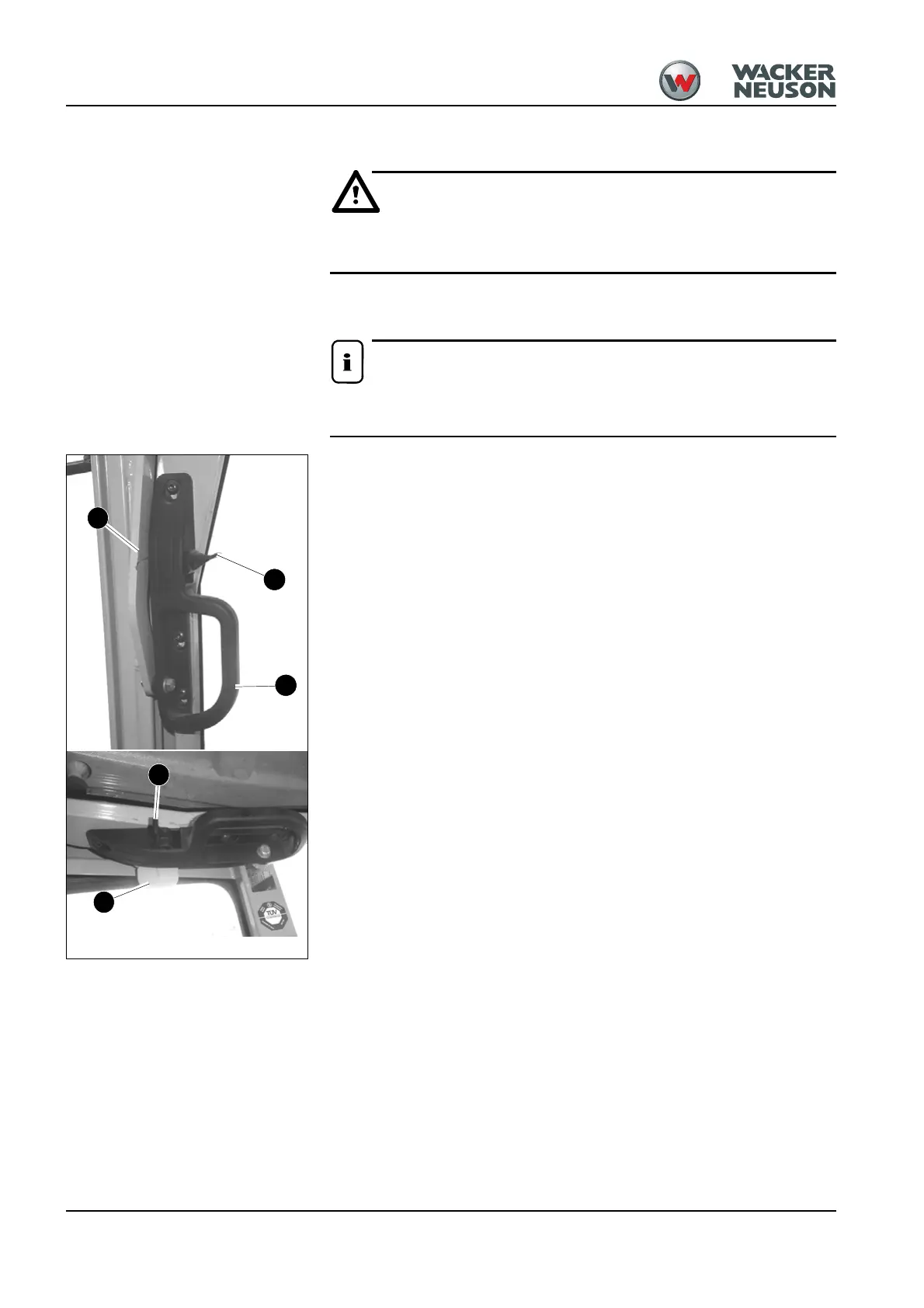

Fig. 31: Front window
A
B
C
A
F
