Wacker Neuson RD 24 User Manual

Maintenance
Sprinkling
126
BA RD24_RD28 en us 06

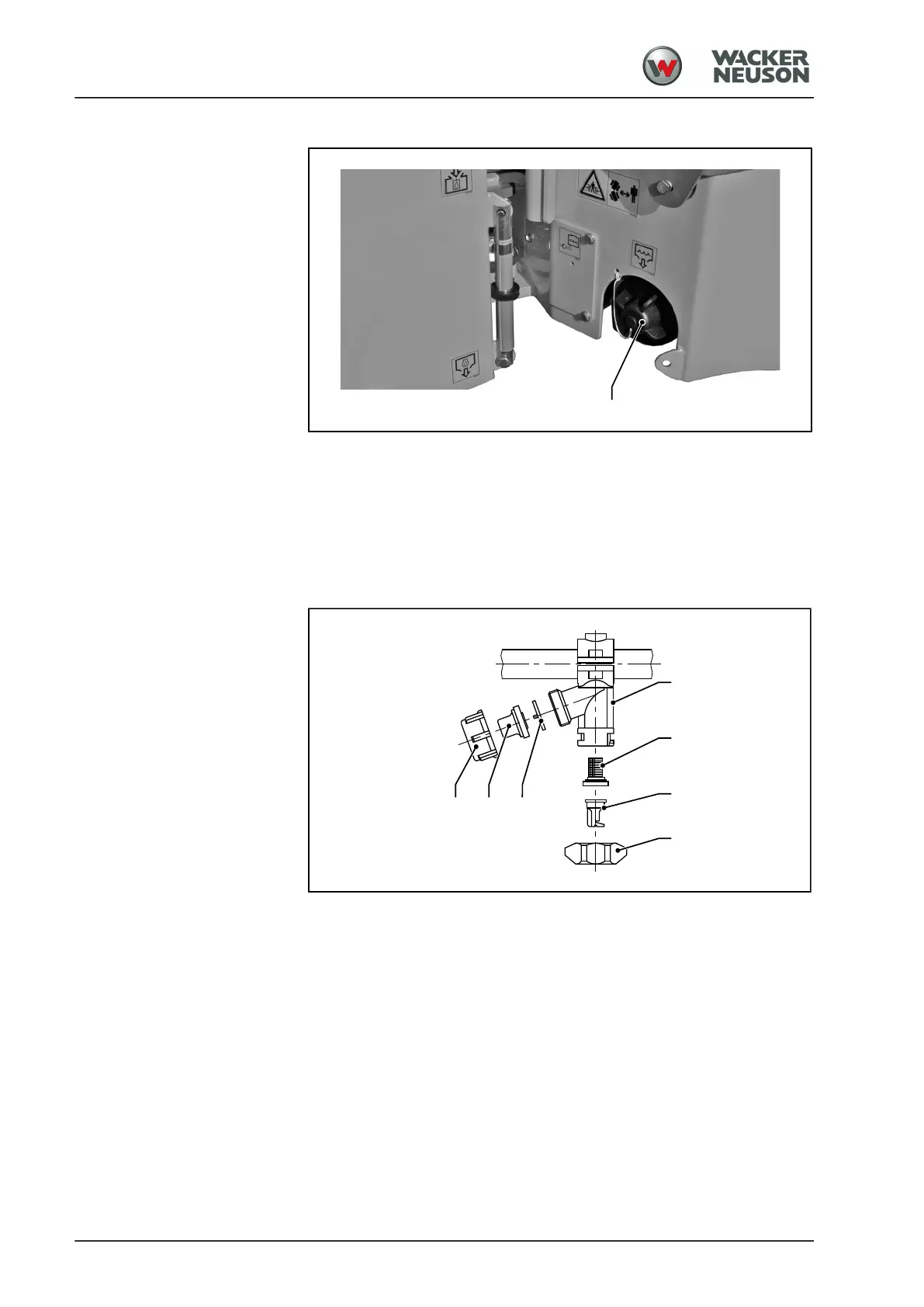

4.06.03 Cleaning filter for water sprinkling
15564
E
1. Switch off diesel engine and remove ignition key.
2. Unscrew filter head [E] at the water tank and remove it together with
the compression spring (observe gasket ring on filter head).
3. Clean filter insert with compression spring.
Re-assemble in reverse order.
4.06.04 Cleaning sprinkler nozzles
05316
D
A B C
E
F
G
1. Switch off diesel engine and remove ignition key.
2. Loosen the cap nut [G] and remove it together with sprinkler nozzle
[F] and filter [E].
3. Remove the filter and the sprinkler nozzle from the cap nut and clean
them.
4. Unscrew the cap nut [A].
5. Remove valve insert [B] and membrane [C].
6. Flush the housing [D] with the sprinkling system.
Re-assemble in reverse order.
