Operation
Instruments and operating elements
66
BA RD24_RD28 en us 06
3.00.04 Sockets, lights
406

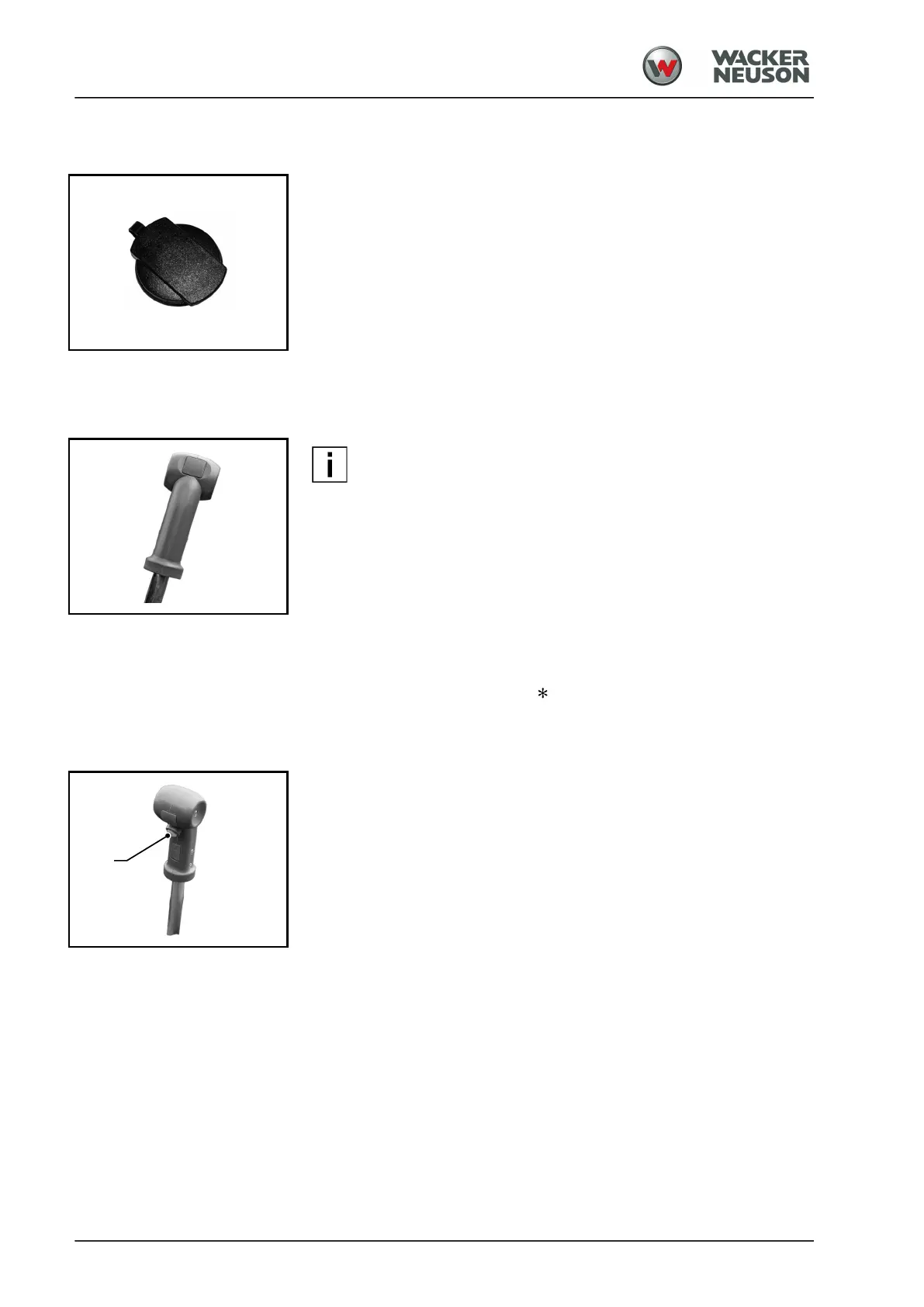

Socket 12 V / cigarette lighter
Cigarette lighter
Press the cigarette lighter until it engages (spiral-wound filament is
heated). After a short time the lighter springs out and can be removed
from the socket.
Socket 12 V
Power can be taken off from the cigarette lighter socket using the special
plug. The maximum load on the socket is 100 W (8 A).
3.00.05 Operating levers, adjustment handles
501
Drive lever
NOTE
The machine can be equipped with a second drive lever (op-
tion). Both drive levers are coupled to each other. The following
description applies for both drive levers.
The drive lever determines the driving direction and speed.
Forwards travelling — push lever FORWARD
Reverse travelling — push lever BACK
Braking — lever to CENTRE
Stop — lever in CENTRE
The driving speed is proportional to the magnitude of the lever
displacement. It is also influenced by the engine speed.
If the machine is equipped with a back-up alarm, an acoustic signal
sounds when driving backwards.
503
Multifunctional handle
Vibration / oscillation
If the vibration / oscillation system [312] is activated, the vibrator /
oscillator can be switched on or off at switch [A] at any time.
Vibrator / oscillator on — PRESS
Vibrator / oscillator off — PRESS again
