General view of machine
46
BA RD24_RD28 en us 06

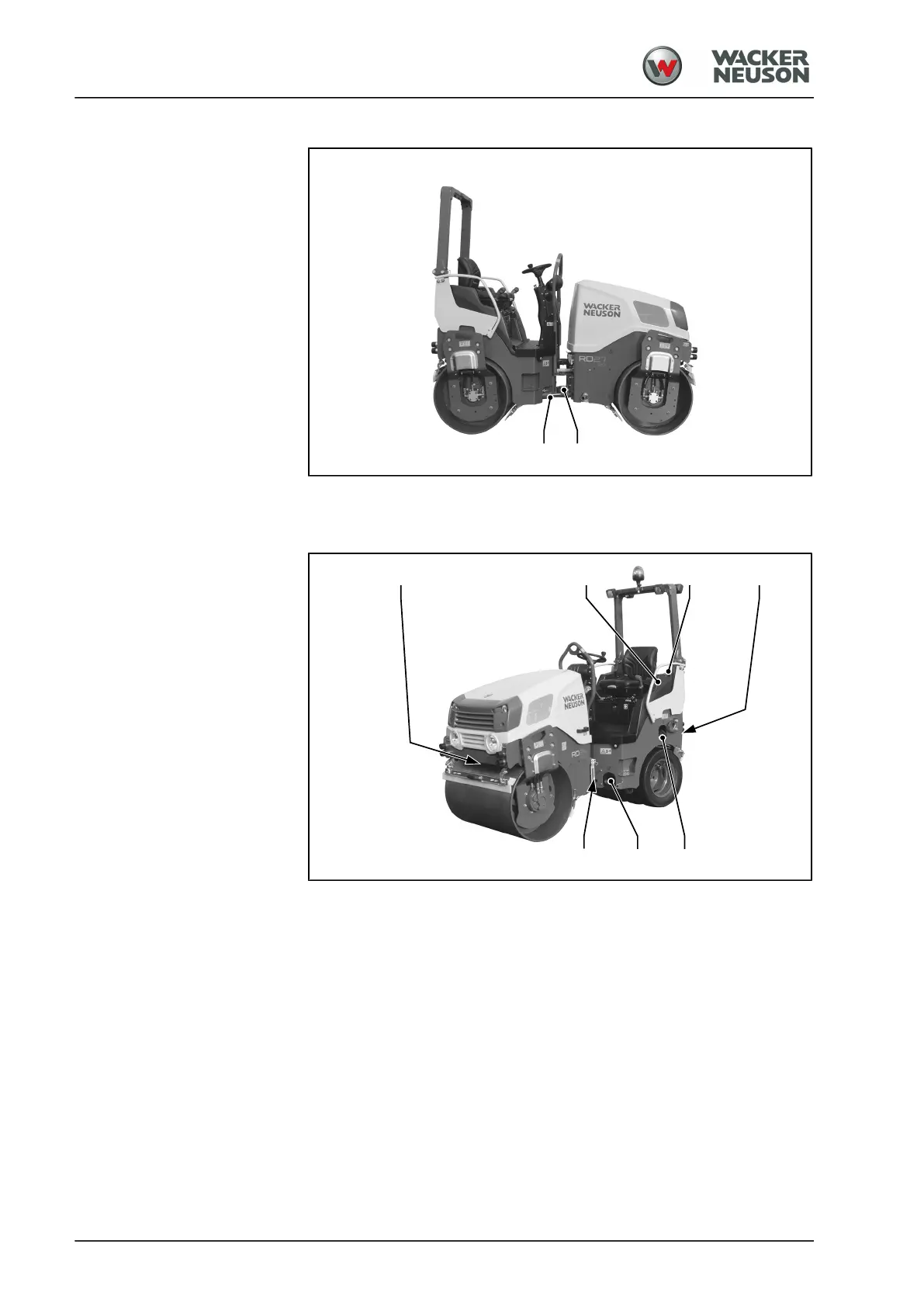

2.01.07 Steering system
17244
BA
[A] Steering cylinder [B] Articulated pendulum joint
2.01.08 Water system
17245
L
A C
D,E
G, H, J, K
F
B
[A] Sprinkling nozzles [B] Water tank filling
[C] Water tank [D] Water outlet
[E] Water filter [F] Water pump
[G] Additive sprinkling nozzles [H] Additive tank
[J] Additive sprinkling water pump [K] Additive tank outlet
[L] Inlet additive tank
