Wacker Neuson RD 24 User Manual

Operation
Instruments and operating elements
70
BA RD24_RD28 en us 06
0536-223
0
I
AB

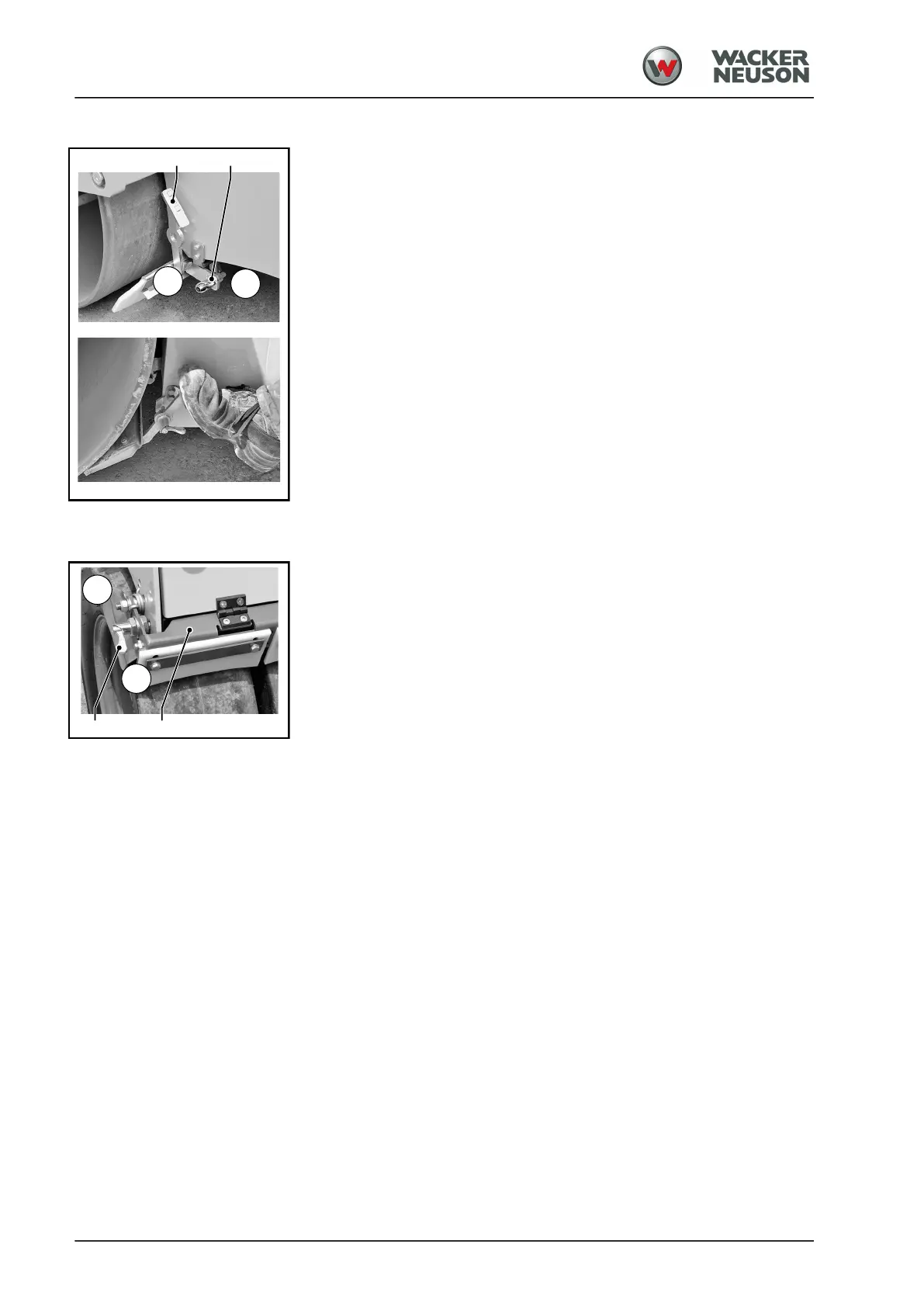

Version: Roller drum down
The scraper can be held away from the drum by a catch. The catch holds
or releases the scraper according to the position of the locking lever [A].
Catch open — position I
(Scraper lies on drum)
Catch closed — position 0
(Scraper held away from drum)
Attach scraper:
1. Move the locking lever into position I until the catch releases the
scraper (scraper lies on the drum).
2. Turn stop lever to position 0 again.
Move the scraper away:
1. Turn stop lever to position 0 (if necessary).
2. Press the pedal [A] until the catch latches in.
0536-222
0
I
A B
Version: tyres
The scraper can be held away from the tyre by a catch. The catch holds
or releases the scraper according to the position of the locking lever [A].
Catch open — position I
(Scraper placed on the tyre)
Catch closed — position 0
(Scraper held away from the tyre)
Attach scraper:
1. Move the locking lever into position I until the catch releases the
scraper (scraper places itself on the tyre). To do this, lift the scraper
bracket [B] slightly.
2. Turn stop lever to position 0 again.
Move the scraper away:
1. Turn stop lever to position 0 (if necessary).
2. Lift the scraper bracket [B] until the catch latches in.
