5-3
Phaser 3635MFP
PL 1.10
Parts List
Draft 4

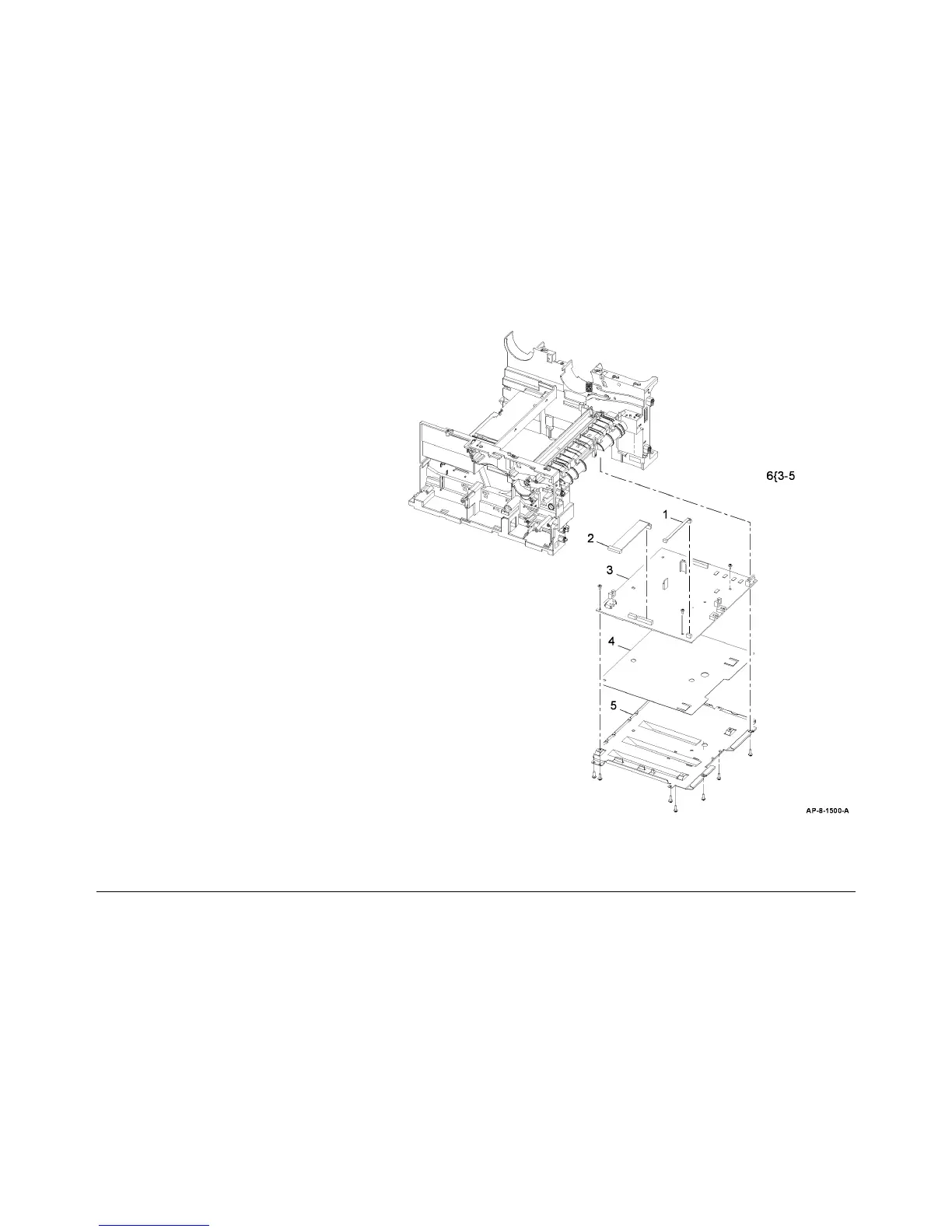

PL 1.10 HVPS
Item Part Description
1 – Tray 1 paper empty sensor harness
(Not Spared)
2 – HVPS harness (Not Spared)
3 105N02141 HVPS (REP 1.2)
4 – HVPS insulation sheet (Not
Spared)
5 – HVPS shield (Not Spared)
6 – HVPS assembly (Not Spared)
