Xerox PHASER 3635 Service Manual

4-17
Phaser 3635MFP
REP 5.5
Repairs and Adjustments
Draft 4
REP 5.5 DADF Drive Assembly
Parts List on PL 5.40
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the DADF rear cover, PL 5.10 Item 9.
3. Remove the DADF door assembly, PL 5.10 Item 3.
4. Remove the DADF lift solenoid, REP 5.2.
5. Remove the DADF transport and feed assemblies, REP 5.4.
6. Remove the DADF drive assembly, Figure 1.

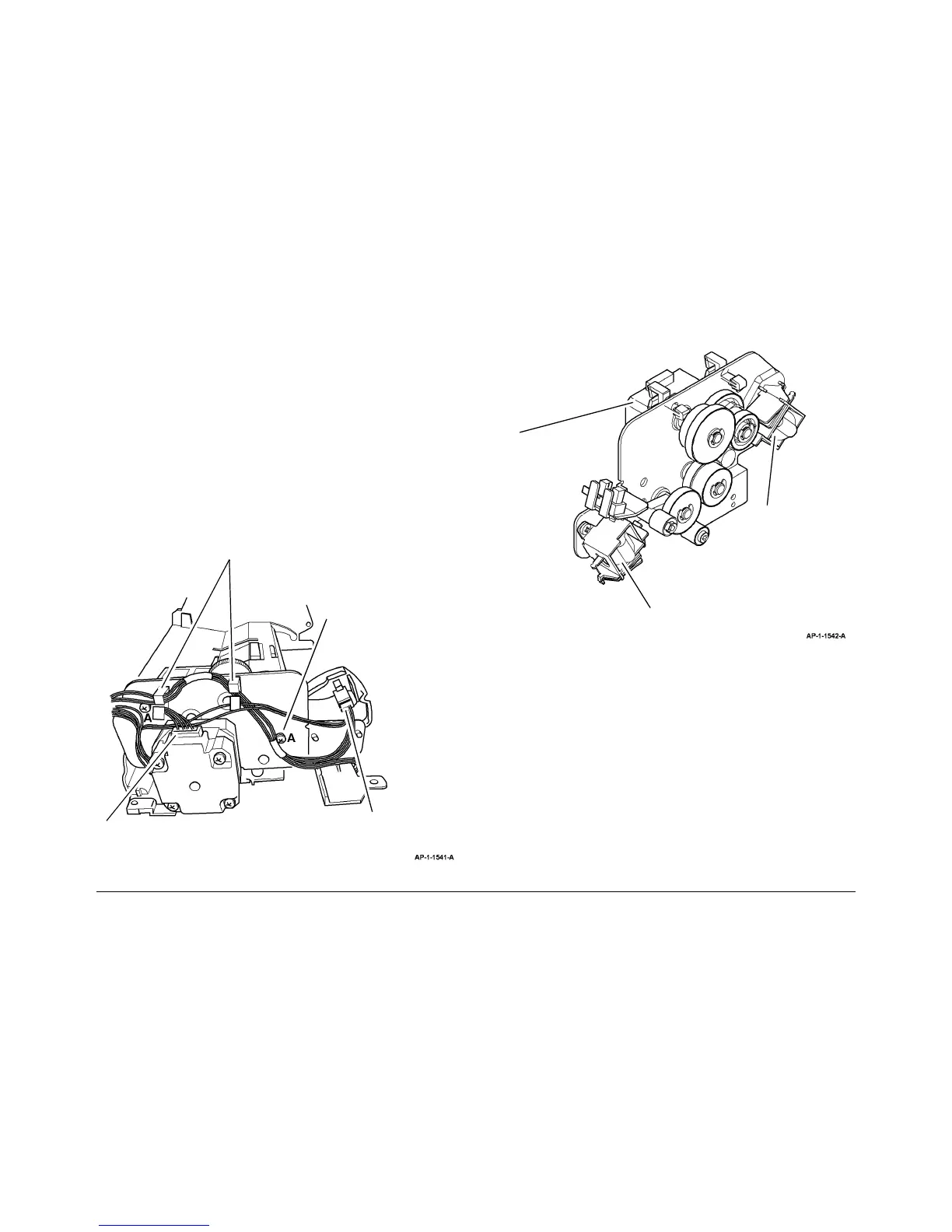

Figure 1 Drive assembly removal
7. Remove the registration solenoid, pickup solenoid or scan motor as required, Figure 2.
Figure 2 Solenoid and motor removal
Replacement
WARNING
Ensure all ground leads are connected.
1. Replacement is the reverse of the removal procedure.
4
Remove 2 screws Marked A,
then the drive assembly.
1
Disconnect the
door open sensor.
2
Disconnect the scan motor.
3
Release the
harnesses.
DADF pickup
solenoid
DADF registration
solenoid
DADF scan motor
