5-24
Phaser 3635MFP
PL 9.10
Draft 4
Parts List

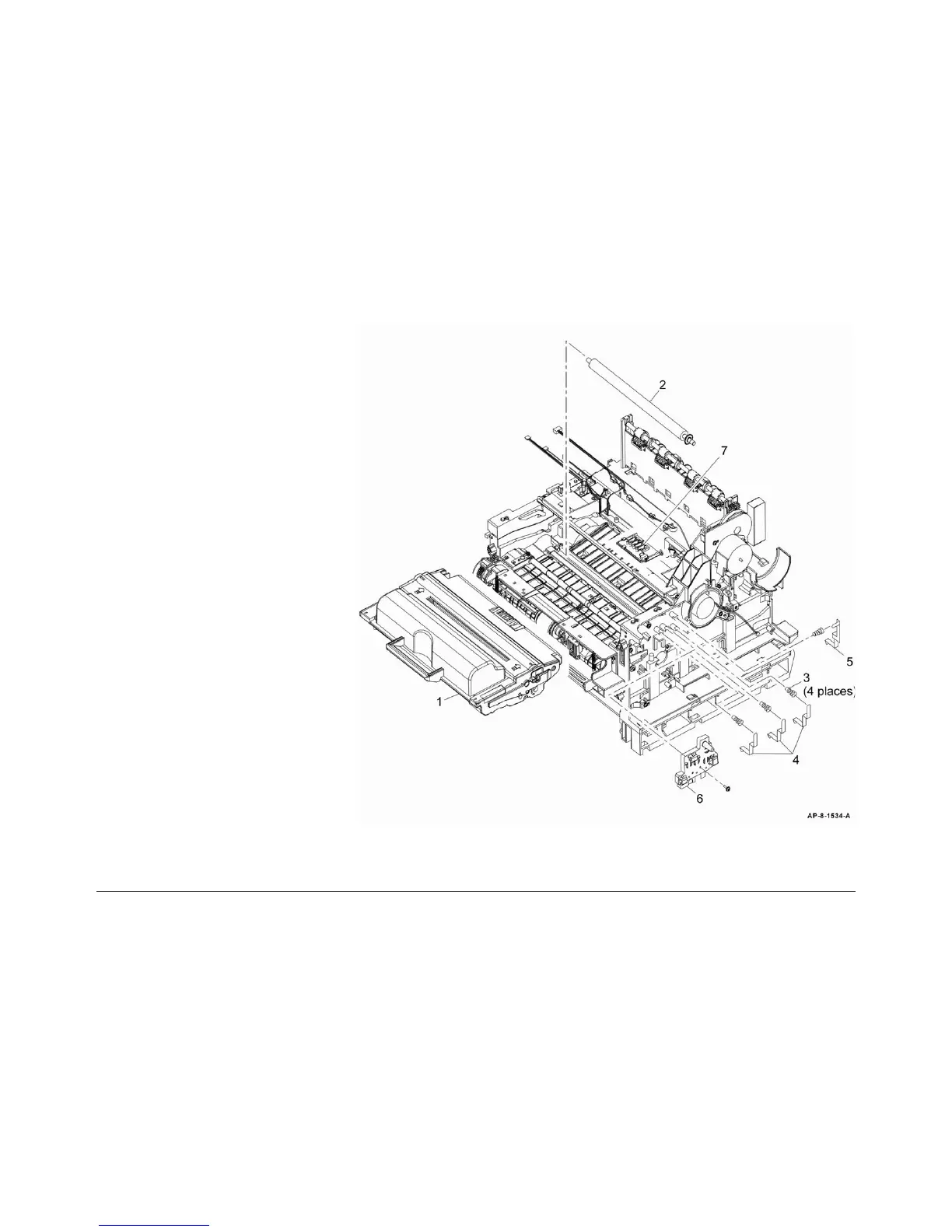

PL 9.10 Print Cartridge
Item Part Description
1 – Print cartridge (Not Spared)
(NOTE)
2 002N02628 Transfer roll (NOTE)
3 – Spring contacts (Not Spared)
4 – Print cartridge power strip (Supply,
DEV, OPC) (Not Spared)
5 – Print cartridge power strip (MHV)
(Not Spared)
6 – Terminal cover (Not Spared) (REP
9.1)
7 140N63302 CRUM PWB
NOTE: HFSI. To reset the HSFI count go to GP 16.
