Xerox PHASER 3635 Service Manual

4-35
Phaser 3635MFP
REP 10.6
Repairs and Adjustments
Draft 4

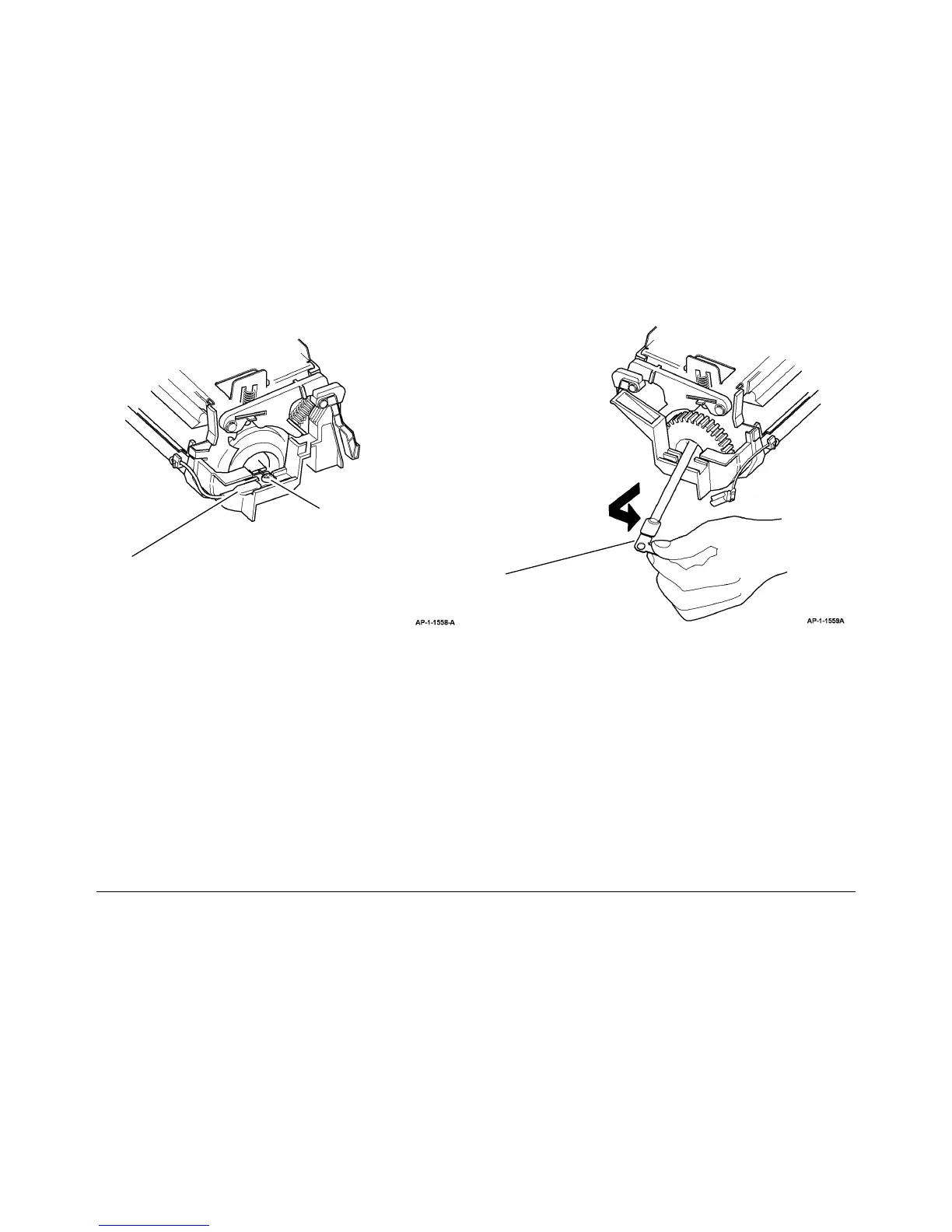

Figure 2 Left harness disconnection
4. Carefully remove the heat lamp from the fuser assembly by withdrawing it through the
right end of the fuser, Figure 3.
Figure 3 Heat lamp removal
Replacement
1. Replacement is the reverse of the removal procedure.
1
Disconnect the harness at the left end.
2
Remove the fixing screw.
Heat lamp
