Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-17

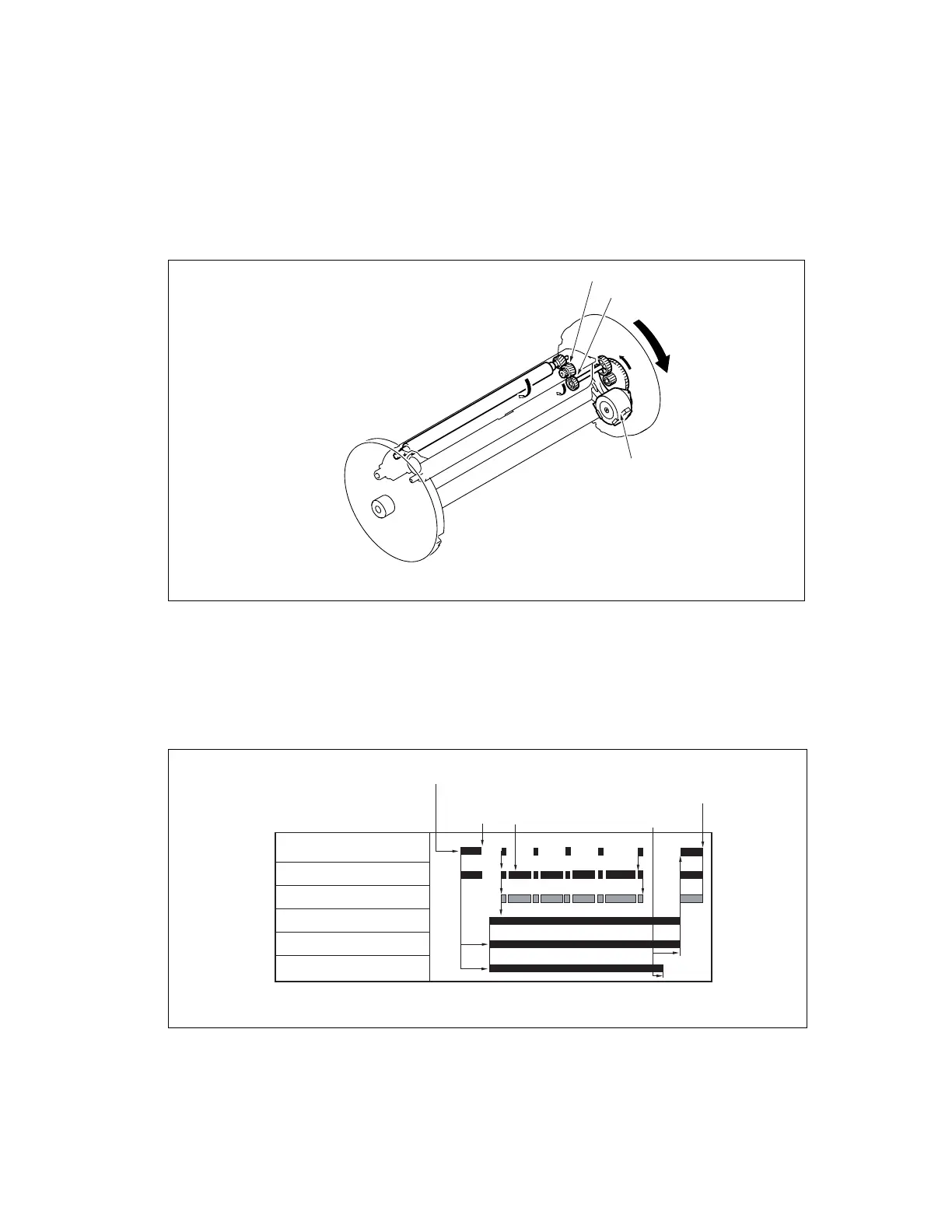

Developing Roller Drive
■ The Developing Roller is driven by the Developing Motor (M3) and Intermediate Gear.
■ When the Toner Cartridge Rack is stationery at the developing position, the Developing
Roller Drive Gear comes into mesh with the Intermediate Gear. The Developing Roller is
then rotated through the drive provided by the Developing Motor (M3) and Intermediate
Gear.
Developing Drive Control
[1] Developing Roller Drive Gear [3] Developing Motor (M3)
[2] Intermediate Gear
4139to1530c0
[2]
[1]
[3]
Y
M
C
K
Y
K Toner
Developing
Position
Standby Position
Belt Positioning
Sensor Activated
Print Start
Developing Motor (M3)
Charge output bias
Polygon Motor Energized
Rack Motor (M2)
Main Motor (M1)
Developing bias DC
Developing bias AC
4139to2102e0

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
