Ethernet Configuration
Ethernet Cable
1. Press the Power Off button to turn the machine off. Observe the network activity light on the
Controller until it goes out (the Controller shuts off).

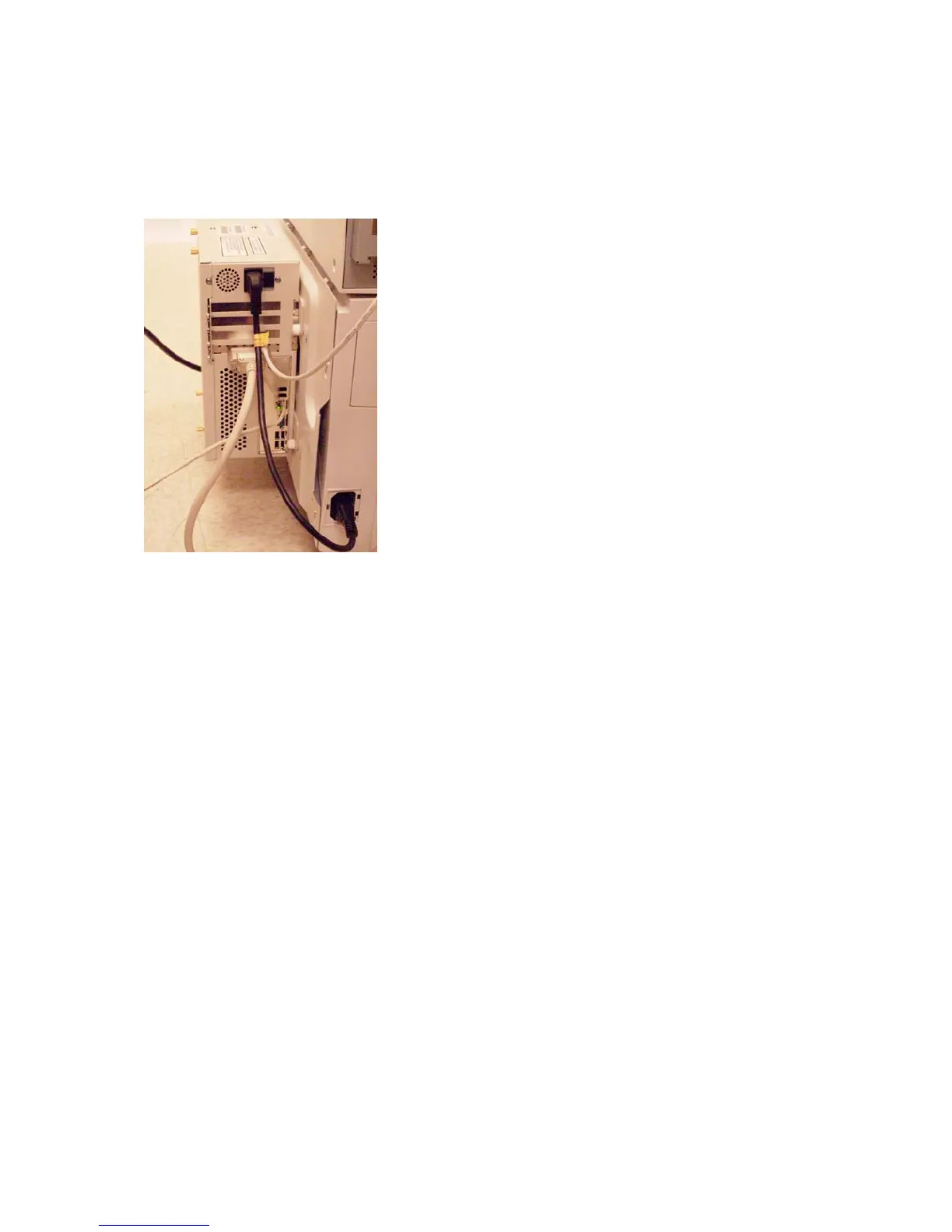

2. Connect a category 5 Ethernet cable to the network interface port at the rear of the machine, and
connect the other end of the cable to a live network drop.
3. Turn on the machine by pressing the Power On button. The Ethernet Interface is set to auto detect the
speed of your network. The device supports selectable speeds of Auto, 10Mbps Full-Duplex, 100
Mbps Full-Duplex, 10 Mbps Half-Duplex, and 100 Mbps Half-Duplex.
Note: If your network has hubs that have Auto-Sensing enabled and the machine Ethernet speed is set
to Auto, it is possible that the hub will not arbitrate to the correct speed.
